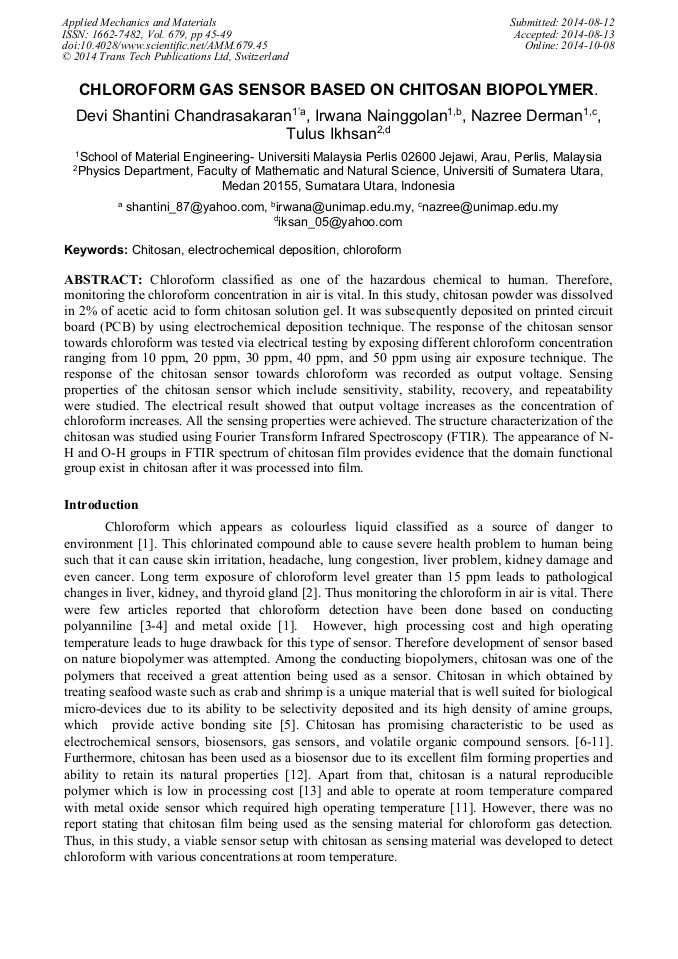

Chloroform Gas Sensor Based on Chitosan Biopolymer

Abstract:

Chloroform classified as one of the hazardous chemical to human. Therefore, monitoring the chloroform concentration in air is vital. In this study, chitosan powder was dissolved in 2% of acetic acid to form chitosan solution gel. It was subsequently deposited on printed circuit board (PCB) by using electrochemical deposition technique. The response of the chitosan sensor towards chloroform was tested via electrical testing by exposing different chloroform concentration ranging from 10 ppm, 20 ppm, 30 ppm, 40 ppm, and 50 ppm using air exposure technique. The response of the chitosan sensor towards chloroform was recorded as output voltage. Sensing properties of the chitosan sensor which include sensitivity, stability, recovery, and repeatability were studied. The electrical result showed that output voltage increases as the concentration of chloroform increases. All the sensing properties were achieved. The structure characterization of the chitosan was studied using Fourier Transform Infrared Spectroscopy (FTIR). The appearance of N-H and O-H groups in FTIR spectrum of chitosan film provides evidence that the domain functional group exist in chitosan after it was processed into film.

• Periodical: Applied Mechanics and Materials (Volume 679)
• Pages: 45-49
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.679.45
• Online since: October 2014
• Authors: Devi Shantini Chandrasakaran, Irwana Nainggolan, Mohd Nazree B. Derman, Tulus Ikhsan
• Keywords: Chitosan, Chloroform, Electrochemical Deposition

References

[1] P. M. Perillo and D. F. Rodríguez: A room temperature chloroform sensor using TiO2 nanotubes. Sensors and Actuators B Vol 193 (2014), p.263– 266.

DOI: 10.1016/j.snb.2013.11.075

[2] P. Ncube, R. W. M. Krause, and B. B. Mamba: Detection of chloroform in water using an azo dye-modified b-cyclodextrin – Epichlorohydrin copolymer as a fluorescent probe. Physics and Chemistry of the Earth (2013), in press.

DOI: 10.1016/j.pce.2013.10.009

[3] S. Sharma, C. Nirkhe, S. Pethkar, and A. A. Athawale: Chloroform vapour sensor based on copper/polyanniline nanocomposite. Sensor and Actuators B Vol 85 (2002), pp.131-136.

DOI: 10.1016/s0925-4005(02)00064-3

[4] P. Kar and A. Choudhury: Carboxylic acid functionalized multi-walled carbon nanotube doped polyanniline for chloroform sensor, sensor and Actuators B, Vol 183 (2014), pp.25-33.

DOI: 10.1016/j.snb.2013.03.093

[5] P. Dykstra, J. Hao, S. T. Koev, G. F. Payne, L. Yu, and R. Ghodssi: (2009). An optical MEMS sensor utilizing a chitosan film for catechol detection. Sensors and Actuators B, Vol 138 (2009), p.64–70.

DOI: 10.1016/j.snb.2009.01.065

[6] A. Bouvree, M. Castro, Y. Grohens, and M. Rinaudo. Conductive Polymer nano-bioComposites (CPC): Chitosan-carbon nanoparticle a good candidate to design polar vapour sensors. sensors and actuators B, Vol 138 (2009), pp.138-147.

DOI: 10.1016/j.snb.2009.02.022

[7] D. Feng, F. Wang, and Z. Chen: Electrochemical glucose sensor based on one step construction of gold nanoparticle-chitosan composite film. Sensors and Actuators B, Vol 138 (2009), pp.539-544.

DOI: 10.1016/j.snb.2009.02.048

[8] B. Kumar, M. Castro, and J. Lu: Conductive bio Polymer nano-Composites (CPC): Chitosan-carbon nanotube transducers assembled via spray layer-by-layer for volatile organic compound sensing Talanta, Vol 81 (2010), p.908–915.

DOI: 10.1016/j.talanta.2010.01.036

[9] R. Pauliukaite, M. E. Ghica, O. Fatibello-filho, and C. M. A: Electrochemical impedence studies of chitosan-modified electrodes for application in electrochemical sensors and biosensors, Electrochimica Acta, Vol 55 (2010), pp.6239-6247.

DOI: 10.1016/j.electacta.2009.09.055

[10] W. Li, D. M. Jang, S. Y. An, D. Kim, S. -ku Hong, and H. Kim: Polyaniline–chitosan nanocomposite: High performance hydrogen sensor from new principle. Sensors and Actuators B, Vol 160 (2011), p.1020– 1025.

DOI: 10.1016/j.snb.2011.09.020

[11] T. Ikhsan, I. Nainggolan, S. Derita, K. Rafezi, and Z. Arifin: The sensing mechanism and detection of low concentration acetone using chitosan-based sensors, Sensors and Actuators B, Vol 177 (2013), pp.522-528.

DOI: 10.1016/j.snb.2012.11.063

[12] D. Du: (2007). One-step electrochemically deposited interface of chitosan–gold nanoparticles for acetylcholinesterase biosensor design. Journal of Electroanalytical Chemistry, Vol 605 (2007), p.53–60.

DOI: 10.1016/j.jelechem.2007.03.013

[13] S. Yalçınkaya, C. Demetgül, M. Timur, and N. Çolak: (2010).

[14] T. Advice, U. Kingdom, G. Long, and H. Canada, "Concise International Chemical Assessment Document 58, In Vitro, World Health Organization, Geneva (2004) pp.4-5.

[15] D. K. Hore, D. S. Walker, L. Mackinnon, and G. L. Richmond: Molecular Structure of the Chloroform-Water and Dichloromethane-Water Interfaces. J. Phys. Chem. C 2007, Vol 111 (2007), pp.8832-8842.

DOI: 10.1021/jp067176t

[16] T. Thanpitcha, A. Sirivat, A. M. Jamieson, and R. Rujiravanit: Preparation and characterization of polyaniline/chitosan blend film. Carbohydrate Polymers, Vol 64 (2006), pp.560-568.

DOI: 10.1016/j.carbpol.2005.11.026

[17] R. Derrick Michele., Dusan Stulik., M. Landry , James: Infrared Spectroscopy in Conservation Science, Scientific tools for Conservation, The Getty Conservation Institute Los Angeles (1999) pp.93-98.
