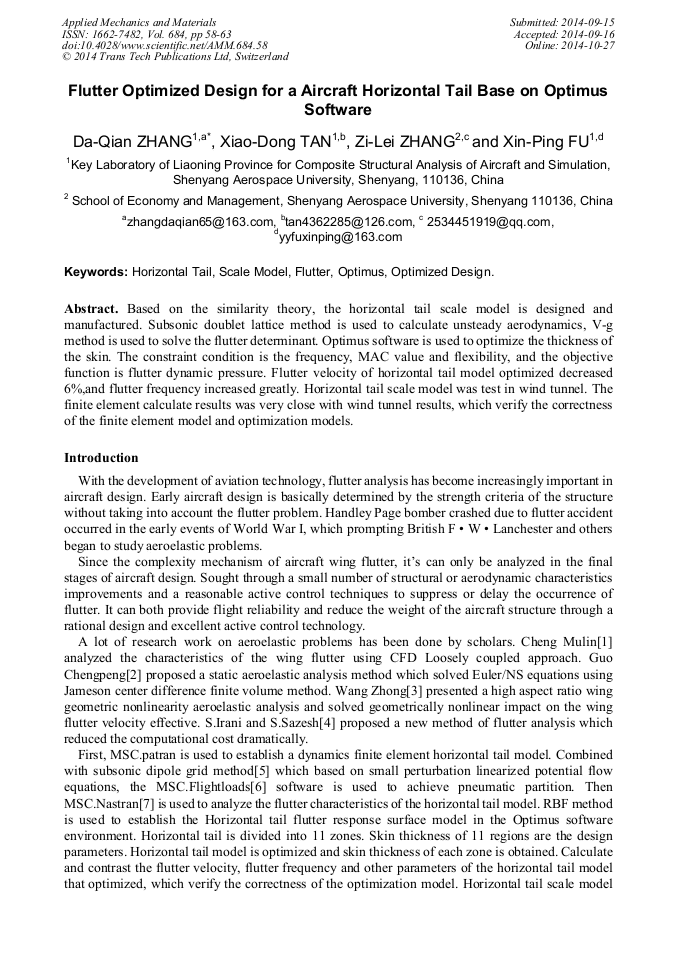

Flutter Optimized Design for a Aircraft Horizontal Tail Base on Optimus Software

Abstract:

Based on the similarity theory, the horizontal tail scale model is designed and manufactured. Subsonic doublet lattice method is used to calculate unsteady aerodynamics, V-g method is used to solve the flutter determinant. Optimus software is used to optimize the thickness of the skin. The constraint condition is the frequency, MAC value and flexibility, and the objective function is flutter dynamic pressure. Flutter velocity of horizontal tail model optimized decreased 6%,and flutter frequency increased greatly. Horizontal tail scale model was test in wind tunnel. The finite element calculate results was very close with wind tunnel results, which verify the correctness of the finite element model and optimization models.

• Periodical: Applied Mechanics and Materials (Volume 684)
• Pages: 58-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.684.58
• Online since: October 2014
• Authors: Da Qian Zhang*, Xiao Dong Tan, Zi Lei Zhang, Xin Ping Fu
• Keywords: Flutter, Horizontal Tail, Optimized Design, Optimus, Scale Model

References

[1] Chen Mulin, Chen Xuemei, Zhong Changsheng. Numerical simulation of plane wing vibration in transonic flows ,J. Journalof Hydrodynamics, 2004, 19 (Supp1): 871-876.

[2] Guo Chengpeng, Dong Jun, Yang Qinghua et al. Study on Static Aeroelastic Analysis Methodology for Aircraft Wings,J. Journal of Vibration and Shock, 2007, 26(10): 140-144.

[3] Wang Zhong, Zhang Junhong, Han Jinglong. Geometrically Nonlinear Aeroelastic Analysis of High Aspect Ratio Wings,J. Jiangsu Aviation. 2011, Supp: 42-45.

[4] S. Irani, S. Sazesh. A new flutter velocity analysis method using stochastic approach,J. Journal of Fluids and Structures. 2013, 40: 105-114.

DOI: 10.1016/j.jfluidstructs.2013.03.018

[5] Guan De. Aircraft aeroelastic Manual,M. Beijing: Aviation Industry Press, (1994).

[6] MSC. Flightloads and Aeroelasticity Course,G. CA: MSC Company Press, (2004).

[7] MSC. Nastran Version 68 Aeroelastic Analysis User's Guide, G, CA: MSC Company Press, (2001).

[8] Yuan KaiHua, Qiu ZhiPing. Nonlinear Flutter Analysis of Stiffened Composite Panels in Supersonic Flow,J. Science China. 2010, 53(2): 336-344.

DOI: 10.1007/s11433-010-0133-y

[9] Zhao Yunpeng. Strength and Aeroelasticity Analysis for Wings of An Unmanned Aerial Vehicle,D. JiangSu: Zhejiang University, (2010).

[10] Zhu Zepeng. The Lightweight Design and Flutter Analysis of High Aspect Ratio Wing,D. LiaoNing: Shenyang Aerospace University, (2013).

[11] Zhao Yonghui. Aeroelasticity and control,M. Science Press, (2007).
