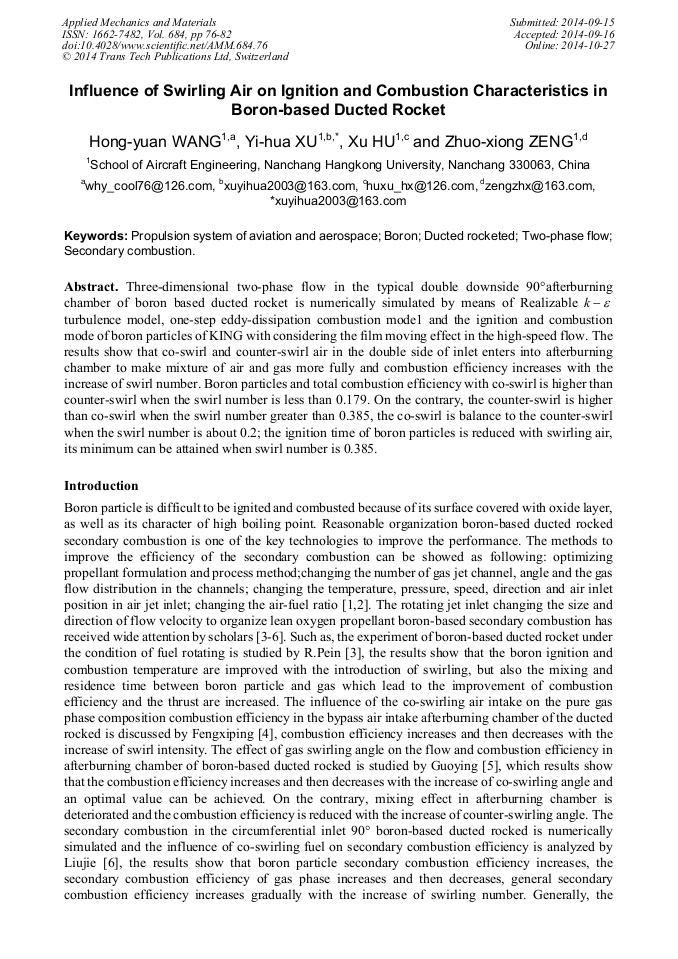

Influence of Swirling Air on Ignition and Combustion Characteristics in Boron-Based Ducted Rocket

Abstract:

Three-dimensional two-phase flow in the typical double downside 90°afterburning chamber of boron based ducted rocket is numerically simulated by means of Realizable turbulence model, one-step eddy-dissipation combustion mode1 and the ignition and combustion mode of boron particles of KING with considering the film moving effect in the high-speed flow. The results show that co-swirl and counter-swirl air in the double side of inlet enters into afterburning chamber to make mixture of air and gas more fully and combustion efficiency increases with the increase of swirl number. Boron particles and total combustion efficiency with co-swirl is higher than counter-swirl when the swirl number is less than 0.179. On the contrary, the counter-swirl is higher than co-swirl when the swirl number greater than 0.385, the co-swirl is balance to the counter-swirl when the swirl number is about 0.2; the ignition time of boron particles is reduced with swirling air, its minimum can be attained when swirl number is 0.385.

• Periodical: Applied Mechanics and Materials (Volume 684)
• Pages: 76-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.684.76
• Online since: October 2014
• Authors: Hong Yuan Wang, Yi Hua Xu*, Xu Hu, Zhuo Xiong Zeng
• Keywords: Aerospace, Boron, Ducted Rocketed, Propulsion System of Aviation, Secondary Combustion, Two-Phase Flow

References

[1] Beer J M, Chigier N A, COMBUSTION AERODYNAMICS, Science Press. (1984) 105-155.

[2] Jianxin Hu, Zhixun Xia, Zhiji Wang, et al, Study on secondary combustion chamber air-inlet scheme of unchoked solid rocket ramjet, 27 (2004) 28-31. (In Chinese).

[3] R. Pein, F. Vinnemeier, Swirl and Fuel Composition Effects on Boron Combustion in solid-Fuel Ramjets, 3 (1992) 609-614.

DOI: 10.2514/3.23522

[4] Xiping Feng, Tao Dong, Jinxian Li, Jinlan Tang, Influence of dual-side inlet swirl-injection on performance of solid rocket ramjet, 31 (2008) 591-594, 598. (In Chinese).

[5] Ying Guo, Hu Wu, Wenjun Han, Effects of Jet Rotational Angle on the Second Combustor of Boron-based Propellant Solid Rocket Ramjets, 9(2009), 1080-1084. (In Chinese).

[6] Jie Liu, Jinxian Li, Xiping Feng, Ya Zhang, Influence of the swirl injection for secondary combustion of boron based ducted rocket, 32 (2011), 355-359, 382. (In Chinese).

[7] King M.K. Boron ignition and combustion in air augmented rocket after burners, 5 (1972), 155-164.

[8] A. Povitsky and Y. Goldman, Boron Particle Ignition in High-Speed Flow, AIAA 92-2202 29th Joint Propulsion Conference and Exhibit, Monterey, CA.

DOI: 10.2514/6.1993-2202

[9] Yeh C L, Kuo K K, Ignition and combustion of boron particles, 22 (1996), 511-541.

[10] S.C. Li , F.A. Williams, Ignition and combustion of boron in wet and dry atmospheres, 23th Symposium (Interational) on Combustion, the Combustion Institute, (1990), 1147-1154.

DOI: 10.1016/s0082-0784(06)80374-7

[11] Weibiao Fu, Jingbin Wei, Combustion Physics, China Machine Press, (1984). (In Chinese).
