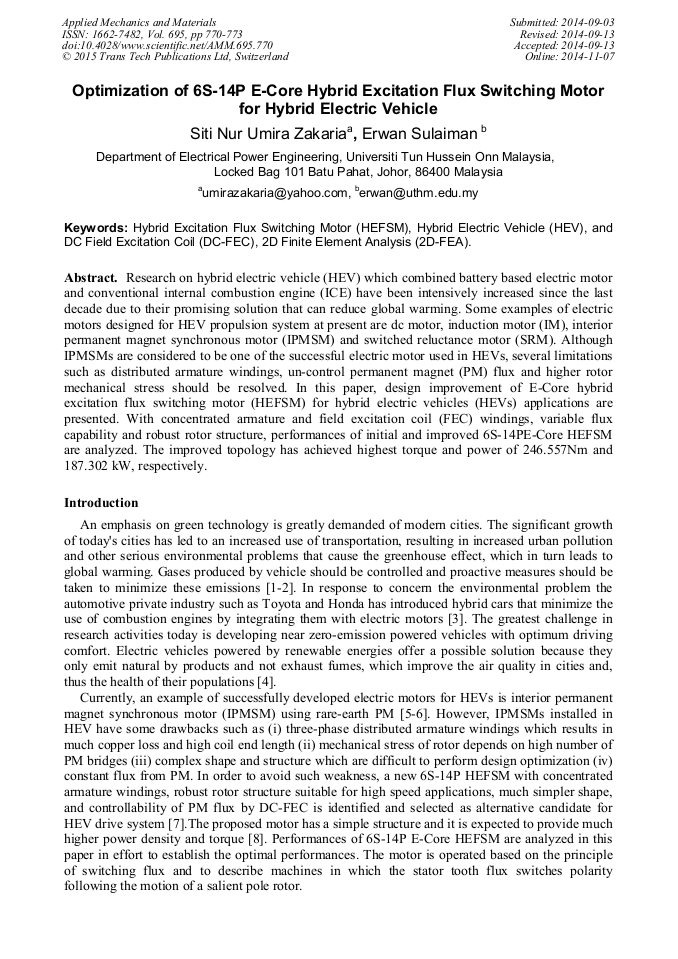

Optimization of 6S-14P E-Core Hybrid Excitation Flux Switching Motor for Hybrid Electric Vehicle

Abstract:

Research on hybrid electric vehicle (HEV) which combined battery based electric motor and conventional internal combustion engine (ICE) have been intensively increased since the last decade due to their promising solution that can reduce global warming. Some examples of electric motors designed for HEV propulsion system at present are dc motor, induction motor (IM), interior permanent magnet synchronous motor (IPMSM) and switched reluctance motor (SRM). Although IPMSMs are considered to be one of the successful electric motor used in HEVs, several limitations such as distributed armature windings, un-control permanent magnet (PM) flux and higher rotor mechanical stress should be resolved. In this paper, design improvement of E-Core hybrid excitation flux switching motor (HEFSM) for hybrid electric vehicles (HEVs) applications are presented. With concentrated armature and field excitation coil (FEC) windings, variable flux capability and robust rotor structure, performances of initial and improved 6S-14PE-Core HEFSM are analyzed. The improved topology has achieved highest torque and power of 246.557Nm and 187.302 kW, respectively.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 770-773
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.770
• Online since: November 2014
• Authors: Siti Nur Umira Zakaria*, Erwan Sulaiman
• Keywords: 2D Finite Element Analysis (2D-FEA), DC Field Excitation Coil (DC-FEC), Hybrid Electric Vehicle (HEV), Hybrid Excitation Flux Switching Motor (HEFSM)

References

[1] Anil Kumar Yadav, Prena Gaur, Shyama Kant Jha, J.R.P. Gupta and A.P. Mittal, Optimal Speed Control of Hybrid Electric Vehicles, Journal of Power Electronic, Vol. 11, (2011).

DOI: 10.6113/jpe.2011.11.4.393

[2] Ricardo Faria, Pedro Moura, Joaquim Delgado and Anibal T. de Almeida, A Sustainability Assessment of Electric Vehicles as a Personal Mobility System, Elsevier: Energy Conversion and Management, vol 61, (2012).

DOI: 10.1016/j.enconman.2012.02.023

[3] C. Chan, The state of the art of electric, hybrid, and fuel cell vehicles, Proc. IEEE, vol. 95, no. 4, (2007) 704–718.

DOI: 10.1109/jproc.2007.892489

[4] M.A. Hannan, F.A. Azidin and A. Mohamed, Hybrid Electric Vehicles and Their Challenges: A Review, Renewable and Sustainable Energy Reviews, Vol. 29, (2014) 135–150.

DOI: 10.1016/j.rser.2013.08.097

[5] M. Kamiya, Development of Traction Drive Motors for the Toyota Hybrid Systems, IEEJ Transactions on Industry Applications, Vol. 126, No. 4, Sec. D (2006() 473-479.

DOI: 10.1541/ieejias.126.473

[6] M.A. Rahman: IPM Motor Drives For Hybrid Electric Vehicles, International Aegean Conference on Electrical Machines and Power Electronics, (2007).

DOI: 10.1109/acemp.2007.4510492

[7] E. Sulaiman, T. Kosaka, and N. Matsui, Design Optimization and Performance of a Novel 6-Slot 5-Pole PMFSM with Hybrid Excitation for Hybrid Electric Vehicle, IEEJ Transaction on Industry Application, Vol. 132 / No. 2 / Sec. D, (2012) 211-218.

DOI: 10.1541/ieejias.132.211

[8] E. Sulaiman, T. Kosaka, and N. Matsui, Design and Analysis of High-Power/ High-Torque Density Dual Excitation Switched-Flux Machine for Traction Drive in HEVs, Renewable & Sustainable Energy Review, Vol. 34, (2014) 517-524.

DOI: 10.1016/j.rser.2014.03.030

[9] E. Sulaiman, T. Kosaka, Parameter Sensitivity Study for Optimization of Field-Excitation Flux Switching Synchronous Machine for Hybrid Electric Vehicles, IEEE Conference on Industrial Electronics and Applications (ICIEA) (2012).

DOI: 10.1109/iciea.2012.6360696
