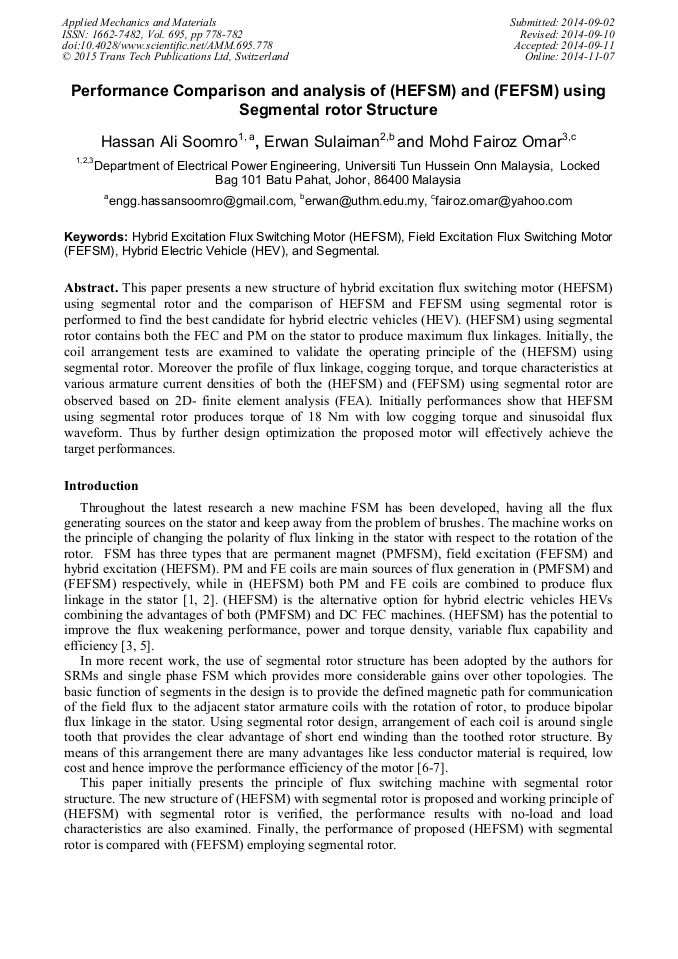

Performance Comparison and Analysis of (HEFSM) and (FEFSM) Using Segmental Rotor Structure

Abstract:

This paper presents a new structure of hybrid excitation flux switching motor (HEFSM) using segmental rotor and the comparison of HEFSM and FEFSM using segmental rotor is performed to find the best candidate for hybrid electric vehicles (HEV). (HEFSM) using segmental rotor contains both the FEC and PM on the stator to produce maximum flux linkages. Initially, the coil arrangement tests are examined to validate the operating principle of the (HEFSM) using segmental rotor. Moreover the profile of flux linkage, cogging torque, and torque characteristics at various armature current densities of both the (HEFSM) and (FEFSM) using segmental rotor are observed based on 2D-finite element analysis (FEA). Initially performances show that HEFSM using segmental rotor produces torque of 18 Nm with low cogging torque and sinusoidal flux waveform. Thus by further design optimization the proposed motor will effectively achieve the target performances.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 778-782
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.778
• Online since: November 2014
• Authors: Hassan Ali Soomro, Erwan Sulaiman, Mohd Fairoz Omar
• Keywords: Field Excitation Flux Switching Motor (FEFSM), Hybrid Electric Vehicle (HEV), Hybrid Excitation Flux Switching Motor (HEFSM), Segmental

References

[1] E. Sulaiman, T. Kosaka, and N. Matsui, High power density design of 6slot-8pole hybrid excitation flux switching machine for hybrid electric vehicles, IEEE J. Trans. Magn. 47 (2011) 4453-4456.

DOI: 10.1109/tmag.2011.2140315

[2] E. Sulaiman, T. Kosaka, and N. Matsui, Design optimization and performance of a novel 6-slot 5-pole PMFSM with hybrid excitation for hybrid electric vehicle, IEEE J. Trans. Ind. 132 (2012) 211-218.

DOI: 10.1541/ieejias.132.211

[3] Y. Amara, L. Vido, M. Gabsi, E. Hoang, M. Lecrivain, and F. Chabot, Hybrid Excitation Synchronous Machines, Energy Efficient Solution for Vehicle Propulsion, IEEE Vehicle Power and Propulsion Conference, 2006, pp.1-6.

DOI: 10.1109/vppc.2006.364367

[4] C. Zhao, and Y. Yan, A review of development of hybrid excitation synchronous machine. Proc. of the IEEE International Symposium on Industrial Electronics, 2 (2005) 857-862.

[5] R. L. Owen, Z.Q. Zhu, and G.W. Jewell, Hybrid excited flux-switching permanent magnet machines, Proc. 13th European Conf. on Power Electronics and Applications, EPE 2009, Barcelona, Spain, 2009 pp.1-10.

[6] B. C. Mecrow, J.W. Finch, E. A. El-Kharashi, and A. G. Jack, Segmental rotor switched reluctance motor with single tooth windings, Proc. Inst. Elect. Eng. Electr. Power Appl. 150 (2003) 591–599.

DOI: 10.1049/ip-epa:20030366

[7] B. C. Mecrow, T. J. Bedford, J. W. Bennet, and T. Celik, The use of segmental rotors for 2 phase flux-switching motors, presented at the Int. Conf. Electrical Machines, Chania, Greece, 2006, Paper 608.
