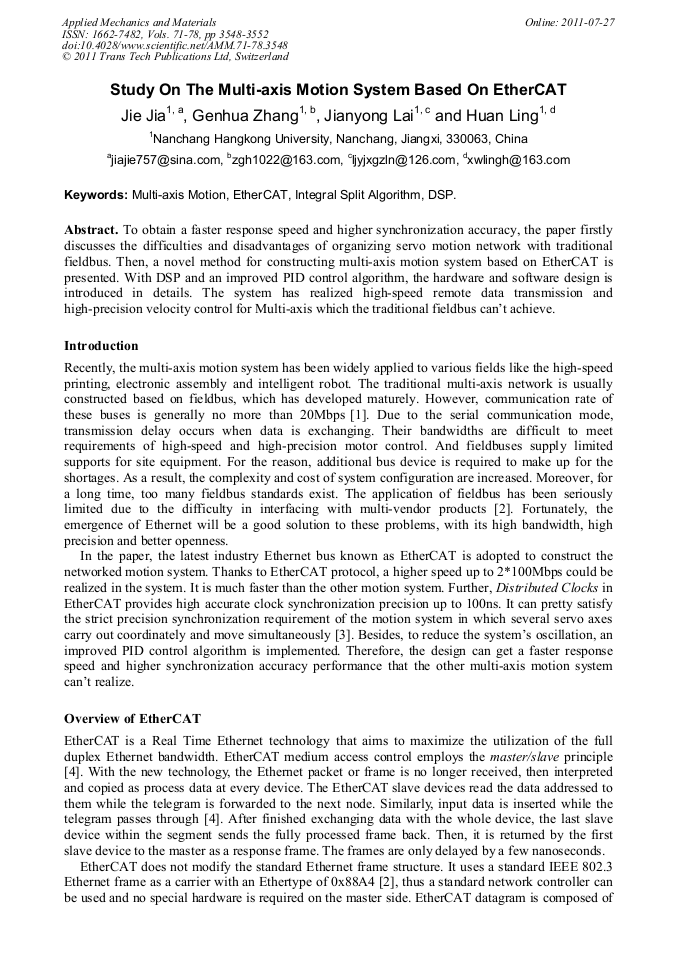

Study on the Multi-Axis Motion System Based on EtherCAT

Abstract:

To obtain a faster response speed and higher synchronization accuracy, the paper firstly discusses the difficulties and disadvantages of organizing servo motion network with traditional fieldbus. Then, a novel method for constructing multi-axis motion system based on EtherCAT is presented. With DSP and an improved PID control algorithm, the hardware and software design is introduced in details. The system has realized high-speed remote data transmission and high-precision velocity control for Multi-axis which the traditional fieldbus can’t achieve.

You might also be interested in these eBooks

Frontiers of Green Building, Materials and Civil Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 71-78)

Pages:

3548-3552

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.71-78.3548

Citation:

Cite this paper

Online since:

July 2011

Authors:

Jie Jia, Gen Hua Zhang, Jian Yong Lai, Huan Ling

Keywords:

Digital Signal Processor (DSP), EtherCAT, Integral Split Algorithm, Multi-Axis Motion

Export:

RIS, BibTeX
