Influence of the Coagulation-Bath Temperature on Membrane Formation Mechanism and Properties of PVDF/TA-ATP Hybrid Membrane

Abstract:

In this study, poly (vinylidene fluoride) (PVDF) hybrid membranes were prepared from polymeric blend of PVDF/tannic acid (TA)-Attapulgite (ATP)/PEG system via phase inversion induced by immersion precipitation in water coagulation bath. The membrane formation mechanism of PVDF/TA-ATP/PEG casting solutions in water bath thermodynamics at different temperatures and the process of membrane formation were investigated via cloud point determination and ultrasonic time-domain reflectometry (UTDR). The structures and properties of the membrane were characterized by scanning electron microscopy (SEM), and water permeation experiment, respectively. It was found that the rate of precipitation controlled by the Coagulation-Bath thermodynamics. With the coagulation temperature increasing, the gelation line was moved to non-solvent axis and the pure water flux were decreased.

You might also be interested in these eBooks

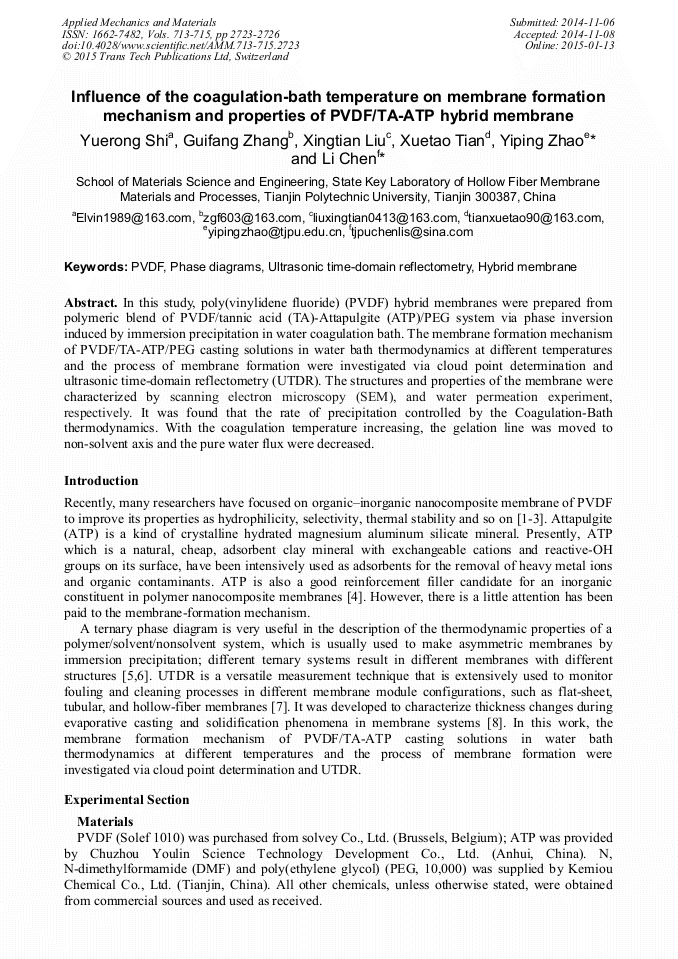

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 713-715)

Pages:

2723-2726

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.713-715.2723

Citation:

Cite this paper

Online since:

January 2015

Authors:

Yue Rong Shi, Gui Fang Zhang, Xing Tian Liu, Xue Tao Tian, Yi Ping Zhao*, Li Chen

Keywords:

Hybrid Membrane, Phase Diagrams, PVDF, Ultrasonic Time-Domain Reflectometry

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] L.S. Wu, J.F. Sun, Q.R. Wang: Journal of Membrane Science, Vol. 285 (2006: 290.

Google Scholar

[2] L.Y. Yu, Z.L. Xu, and H.M. Shen, et al: Journal of Membrane Science, Vol. 337 (2009): 257.

Google Scholar

[3] B.D. Freeman: Macromolecules, Vol. 32 (1999): 375.

Google Scholar

[4] Y. Zhang, J. Zhao, H. Chu, et al: Desalination, Vol. 344 (2014): 71.

Google Scholar

[5] L. Yilmaz, A. J. McHugh: Journal of Applied Polymer Science, Vol. 31 (1986): 1018.

Google Scholar

[6] J. Barzin, B. Sadatnia: Journal of Membrane Science, Vol. 325 (2008): 92.

Google Scholar

[7] R.D. Sanderson, J.X. Li, D.K. Hallbauer: Environmental Science & Technology, Vol. 39(2005): 7299.

Google Scholar

[8] J.X. Li, R.D. Sanderson, G.Y. Chai: Sensors and Actuators B-chemical, Vol. 114 (2006): 182.

Google Scholar

[9] D. J. Lin, H. H. Chang, T. C. Chen, et al: European polymer journal, Vol. 42 (2006): 1581.

Google Scholar

[10] X.C. Xu, J.X. Li, H.S. Li, et al: Journal of Membrane Science, Vol. 326 (2009): 103.

Google Scholar

[11] X. Feng, Y.F. Guo, Y.P. Zhao, et al: Chemical Journal of Chinese Universities, 32 (2011): 1424.

Google Scholar

[12] Y.P. Zhao, J.N. Bai, X. Feng, et al: Journal of Polymer Research, 20 (2013): 1.

Google Scholar

[13] D.Y. Zuo, B.K. Zhu, J.H. Cao, et al: Chinese Journal of Polymer Science 24 (2006): 281.

Google Scholar
