Fabrication and Characterisation of 1200V 4H-SiC VJFET

Abstract:

Results are presented for the silicon carbide (SiC) vertical channel junction field effect transistor (VJFET) fabricated based on in-house SiC epitaxial wafer suitable for power devices. We have demonstrated continuous improvement in blocking voltage, forward drain current under high temperature. The SiC VJFET device’s current density is 360 A/cm² and current is 11 A at V_G= 3 V and V_D = 2 V, with related specific on-resistance 5.5 mΩ·cm². The device exceeds 1200 V at gate bias V_G = -10V. The current of the SiC VJFET device is 4 A and the reverse voltage is 1200V at the 200 °C high temperature.

You might also be interested in these eBooks

Mechanical Engineering and Materials Science

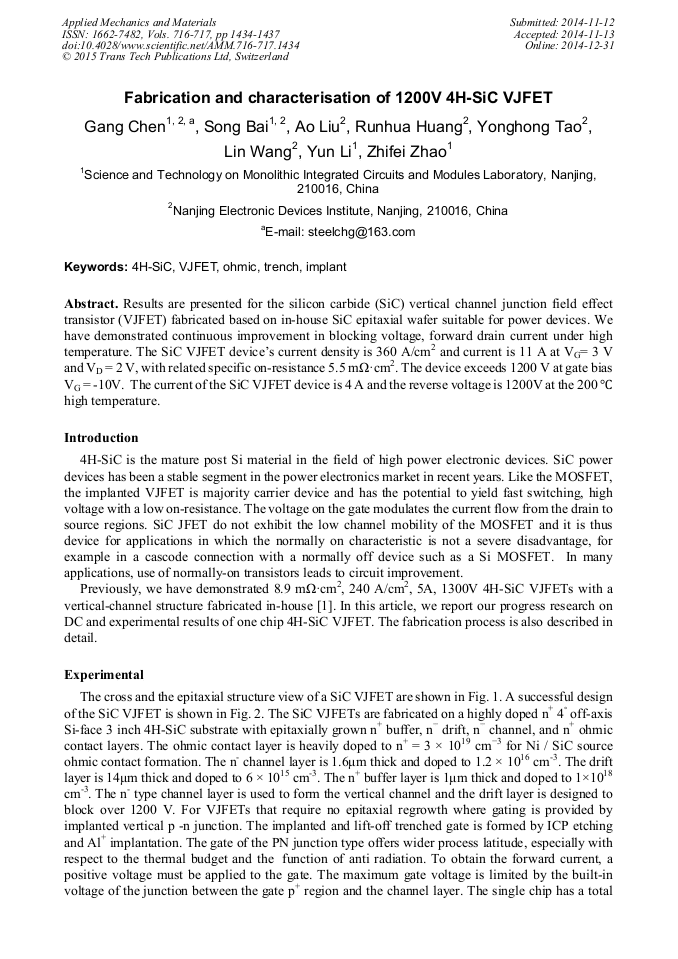

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 716-717)

Pages:

1434-1437

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.716-717.1434

Citation:

Cite this paper

Online since:

December 2014

Authors:

Gang Chen*, Song Bai, Ao Liu, Run Hua Huang, Yong Hong Tao, Lin Wang, Yun Li, Zhi Fei Zhao

Keywords:

4H-SiC, Implant, Ohmic, Trench, VJFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Gang Chen, Xiaofeng Song, Song Bai, et al. 5A 1300V Trenched and Implanted 4H-SiC vertical JFET, Applied Mechanics and Materials Vols. 229-231 (2012) pp.824-827.

DOI: 10.4028/www.scientific.net/amm.229-231.824

Google Scholar

[2] V. Veliadis, M. Snook, T. McNutt, H. Hearne, P. Potyraj, Aivars Lelis, and C. Scozzie. A 2055-V (at 0. 7 mA/cm2) 24-A (at 706 W/cm2) Normally On 4H-SiC JFET With 6. 8-mm2 Active Area and Blocking-Voltage Capability Reaching the Material Limit, IEEE ELECTRON DEVICE LETTERS, VOL. 29, NO. 12, DECEMBER 2008, 1325-1327.

DOI: 10.1109/led.2008.2006766

Google Scholar

[3] J. Zhang J.H. Zhao, P. Alexandrov and T. Burke. Demonstration of first 9. 2 kV 4H-SiCbipolar junction transistor. ELECTRONICS LETTERS 14th October 2004 Vol. 40 No. 21.

DOI: 10.1049/el:20046223

Google Scholar

[4] Wolfgang Bergner, Roland Rupp, Uwe Kirchner, et al. 650V SiC JFET for High Efficiency Applications. Materials Science Forum Vols. 778-780 (2014) pp.871-874.

DOI: 10.4028/www.scientific.net/msf.778-780.871

Google Scholar

[5] Ce Li, J. S. Duster, and Kevin T. Kornegay. A Nonvolatile Semiconductor Memory Device in 6H-SiC for Harsh Environment Applications. IEEE ELECTRON DEVICE LETTERS, VOL. 24, NO. 2, FEBRUARY (2003).

DOI: 10.1109/led.2002.807691

Google Scholar
