Analysis on Static Characteristics of Flipping Horizontal Machining Center

Abstract:

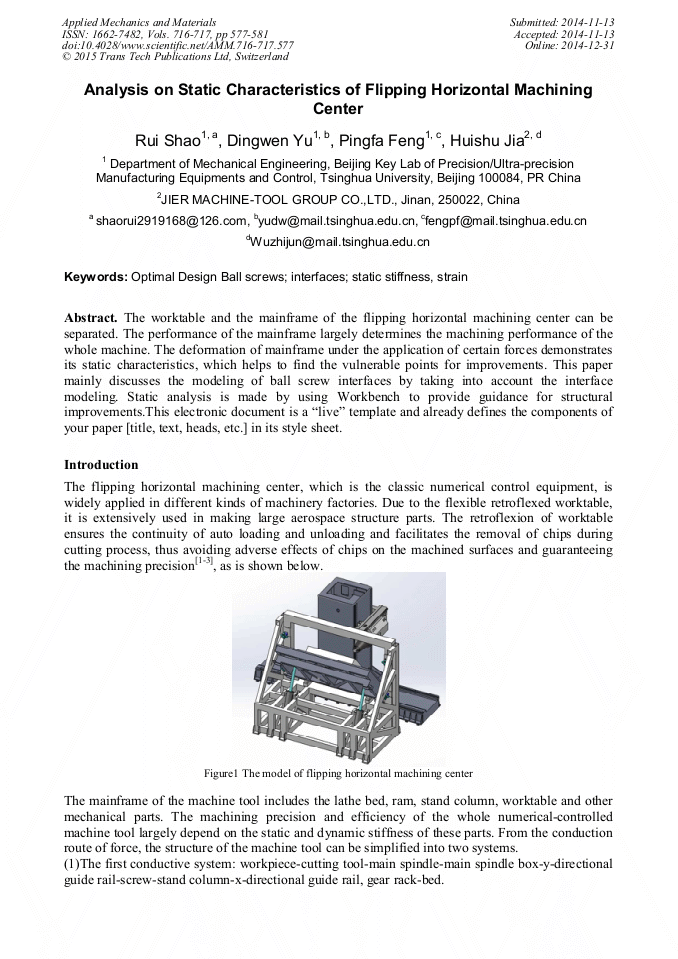

The worktable and the mainframe of the flipping horizontal machining center can be separated. The performance of the mainframe largely determines the machining performance of the whole machine. The deformation of mainframe under the application of certain forces demonstrates its static characteristics, which helps to find the vulnerable points for improvements. This paper mainly discusses the modeling of ball screw interfaces by taking into account the interface modeling. Static analysis is made by using Workbench to provide guidance for structural improvements.This electronic document is a “live” template and already defines the components of your paper [title, text, heads, etc.] in its style sheet.

• Periodical: Applied Mechanics and Materials (Volumes 716-717)
• Pages: 577-581
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.716-717.577
• Online since: December 2014
• Authors: Rui Shao*, Ding Wen Yu, Ping Fa Feng, Hui Shu Jia
• Keywords: Interfaces, Optimal Design Ball Screws, Static Stiffness, Strain
