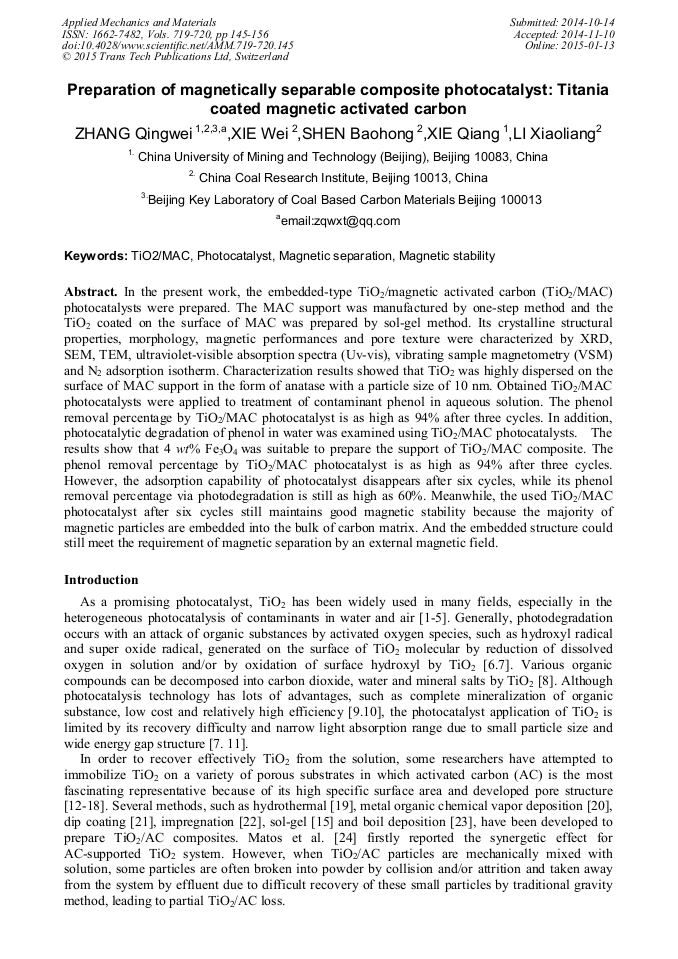

Preparation of Magnetically Separable Composite Photocatalyst: Titania Coated Magnetic Activated Carbon

Abstract:

In the present work, the embedded-type TiO₂/magnetic activated carbon (TiO₂/MAC) photocatalysts were prepared. The MAC support was manufactured by one-step method and the TiO₂ coated on the surface of MAC was prepared by sol-gel method. Its crystalline structural properties, morphology, magnetic performances and pore texture were characterized by XRD, SEM, TEM, ultraviolet-visible absorption spectra (Uv-vis), vibrating sample magnetometry (VSM) and N₂ adsorption isotherm. Characterization results showed that TiO₂ was highly dispersed on the surface of MAC support in the form of anatase with a particle size of 10 nm. Obtained TiO₂/MAC photocatalysts were applied to treatment of contaminant phenol in aqueous solution. The phenol removal percentage by TiO₂/MAC photocatalyst is as high as 94% after three cycles. In addition, photocatalytic degradation of phenol in water was examined using TiO₂/MAC photocatalysts. The results show that 4 wt% Fe₃O₄ was suitable to prepare the support of TiO₂/MAC composite. The phenol removal percentage by TiO₂/MAC photocatalyst is as high as 94% after three cycles. However, the adsorption capability of photocatalyst disappears after six cycles, while its phenol removal percentage via photodegradation is still as high as 60%. Meanwhile, the used TiO₂/MAC photocatalyst after six cycles still maintains good magnetic stability because the majority of magnetic particles are embedded into the bulk of carbon matrix. And the embedded structure could still meet the requirement of magnetic separation by an external magnetic field.

• Periodical: Applied Mechanics and Materials (Volumes 719-720)
• Pages: 145-156
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.719-720.145
• Online since: January 2015
• Authors: Qing Wei Zhang*, Wei Xie, Bao Hong Shen, Qiang Xie, Xiao Liang Li
• Keywords: Magnetic Separation, Magnetic Stability, Photocatalyst, TiO2/MAC

References

[1] FUJISHIMA A. and HONDA K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature, 1972, 283(5358): 37-38.

DOI: 10.1038/238037a0

[2] ZHANG Z H, XU Y, MA X P, LI FY, CHEN Z L, ZHANG F Q AND DIONYSIOU D D. Microwave degradation of methyl orange dye in aqueous solution in the presence of nano-TiO2-supported activated carbon (supported-TiO2/AC/MW). Journal of Hazardous Materials, 2012, 209: 271-277.

DOI: 10.1016/j.jhazmat.2012.01.021

[3] ZHANG X W and LEI L C. Preparation of photocatalytic Fe2O3-TiO2 coatings in one step by metal organic chemical vapor deposition. Applied Surface Science, 2008, 254(8): 2406-2412.

DOI: 10.1016/j.apsusc.2007.09.067

[4] YE SY, TIAN Q M, SONG X L and LUO S C. Photoelectrocatalytic degradation of ethylene by a combination of TiO2 and activated carbon felts. Journal of Photochemistry and Photobiology a-Chemistry, 2009, 208(1): 27-35.

DOI: 10.1016/j.jphotochem.2009.08.001

[5] YAP P S, LIM T T AND SRINIVASAN M. Nitrogen-doped TiO2/AC bi-functional composite prepared by two-stage calcination for enhanced synergistic removal of hydrophobic pollutant using solar irradiation. Catalysis Today, 2011, 161(1): 46-52.

DOI: 10.1016/j.cattod.2010.09.024

[6] SUBRAMANI A K, BYRAPPA K, ANANDA S, RAI K M L, RANGANATHAIAH C and YOSHIMURA M. Photocatalytic degradation of indigo carmine dye using TiO2 impregnated activated carbon. Bulletin of Materials Science, 2007, 30(1): 37-41.

DOI: 10.1007/s12034-007-0007-8

[7] CHEN X and MAO S S. Titanium Dioxide Nanomaterials: Synthesis, Properties, Modifications, and Applications. Chemistry Review, 2007, 107(7): 2891-2959.

DOI: 10.1021/cr0500535

[8] MICHAEL R H, SCOT T M, WONYONG C and DETLEF W B. Environmental applications of semiconductor photocatalysis. Chemical Reviews, 1995, 95(1): 69-96.

[9] LI Y J, CHEN J, LIU J B, MA M Y, CHEN W and LI L Y. Activated carbon supported TiO2-photocatalysis doped with Fe ions for continuous treatment of dye wastewater in a dynamic reactor. Journal of Environmental Sciences, 2010, 22(8): 1290-1296.

DOI: 10.1016/s1001-0742(09)60252-7

[10] CHOY K L. Chemical vapour deposition of coatings. Progress in Materials Science, 2003, 48(2): 57-170.

DOI: 10.1016/s0079-6425(01)00009-3

[11] MINERO C, CATOZZO F and PELIZZETTI E. Role of adsorption in photocatalyzed reactions of organic molecules in aqueous titania suspensions. Langmuir, 1992, 8(2): 481-486.

DOI: 10.1021/la00038a029

[12] BANSAL R C and GOYAL M. Activated carbon adsorption. CRC Press, (2005).

[13] VELASCO L F, FONSECA I M, PARRA J B, LIMA J C and ANIA C O. Photochemical behaviour of activated carbons under UV irradiation. Carbon, 2012, 50(1): 249-258.

DOI: 10.1016/j.carbon.2011.08.042

[14] MIYAWAKI J, LEE G H, YEH J, SHIRATORI N, SHIMOHARA T, MOCHIDA I and YOON S H. Development of carbon-supported hybrid catalyst for clean removal of formaldehyde indoors. Catalysis Today, 2012, 185(1): 278-283.

DOI: 10.1016/j.cattod.2011.09.036

[15] LIU G L, HAN C, PELAEZ M, ZHU D W, LIAO S J, LIKADIMOS V, LOANNIDIS N, KONTOS A G, FALARAS P, DUNLOP P S M, BYRNE J A and DIONYSIOU D D. Synthesis, characterization and photocatalytic evaluation of visible light activated C-doped TiO2 nanoparticles. Nanotechnology, 2012, 23(29): 294003.

DOI: 10.1088/0957-4484/23/29/294003

[16] HABIBI M H and ZENDEHDEL M. Synthesis and characterization of titania nanoparticles on the surface of microporous perlite using sol-gel method: Influence of titania precursor on characteristics. Journal of Inorganic and Organometallic Polymers and Materials, 2011, 21(3): 634-639.

DOI: 10.1007/s10904-011-9500-z

[17] VELASCO L F, PARRA J B and ANIA C O. Role of activated carbon features on the photocatalytic degradation of phenol. Applied Surface Science, 2010, 256(17): 5254-5258.

DOI: 10.1016/j.apsusc.2009.12.113

[18] ORLANDUCCI S, SESSA V, TERRANOVA M L, BATTISTON G A, BATTISTON S and GERBASI R. Nanocrystalline TiO2 on single walled carbon nanotube arrays: Towards the assembly of organized C/TiO2 nanosystems. Carbon, 2006, 44(13): 2839-2843.

DOI: 10.1016/j.carbon.2006.03.018

[19] LIU S X, CHE X Y and CHEN X. A TiO2/AC composite photocatalyst with high activity and easy separation prepared by a hydrothermal method. Journal of Hazardous Materials, 2007, 143(1-2): 257-263.

DOI: 10.1016/j.jhazmat.2006.09.026

[20] ZHANG X W, ZHOU M H and LEI L C. TiO2 photocatalyst deposition by MOCVD on activated carbon. Carbon, 2006, 44(2): 325-333.

DOI: 10.1016/j.carbon.2005.07.033

[21] LIU Y Z, YANG S G, HONG J and SUN C. Low-temperature preparation and microwave photocatalytic activity study of TiO2-mounted activated carbon. Journal of Hazardous Materials, 2007, 142(1-2): 208-215.

DOI: 10.1016/j.jhazmat.2006.08.020

[22] TAO Y, SCHWARTZ S, WU C Y and MAZYCK D W. Development of a TiO2/AC composite photocatalyst by dry impregnation for the treatment of methanol in humid airstreams. Industrial & Engineering Chemistry Research, 2005, 44(19): 7366-7372.

DOI: 10.1021/ie048749w

[23] LU M C, CHEN J N AND CHANG K T. Effect of adsorbents coated with titanium dioxide on the photocatalytic degradation of propoxur. Chemosphere, 1999, 38(3): 617-627.

DOI: 10.1016/s0045-6535(98)00204-5

[24] MATOS J, LAINE J and HERRMANN J M. Synergy effect in the photocatalytic degradation of phenol on a suspended mixture of titania and activated carbon. Applied Catalysis B-Environmental, 1998, 18(3-4): 281-291.

DOI: 10.1016/s0926-3373(98)00051-4

[25] MILTENYI S, MULLER W, WEICHEL W and RADBRUCH A. High-gradient magnetic cell-separation with MACS. Cytometry, 1990, 11(2): 231-238.

DOI: 10.1002/cyto.990110203

[26] YAVUZ C T, MAYO J T, YU W W, PRAKASH A, FALKNER J C, YEAN S, CONG L L, SHIPLEY H J, KAN A, TOMSON M, NATELSON D and COLVIN V L. Low-field magnetic separation of monodisperse Fe3O4 nanocrystals. Science, 2006, 314(5801): 964-967.

DOI: 10.1126/science.1131475

[27] TRYBA B, PISZCZ M, GRZMIL B, PATTEK J A and MORAWSKI A W. Photodecomposition of dyes on Fe-C-TiO2 photocatalysts under UV radiation supported by photo-Fenton process. Journal of Hazardous Materials, 2009, 162(1): 111-119.

DOI: 10.1016/j.jhazmat.2008.05.057

[28] OH W C, ZHANG F J, CHEN M L, LEE Y M and KO W B. Characterization and relative photonic efficiencies of a new Fe-ACF/TiO2 composite photocatalysts designed for organic dye decomposition. Journal of Industrial and Engineering Chemistry, 2009, 15(2): 190-195.

DOI: 10.1016/j.jiec.2008.09.019

[29] AO Y H, XU J J, FU D G and YUAN C W. A simple route for the preparation of anatase titania-coated magnetic porous carbons with enhanced photocatalytic activity. Carbon, 2008, 46(4): 596-603.

DOI: 10.1016/j.carbon.2008.01.009

[30] YANG N, ZHU S M, ZHANG D and XU S. Synthesis and properties of magnetic Fe3O4-activated carbon nanocomposite particles for dye removal. Materials Letters, 2008, 62(4-5): 645-647.

DOI: 10.1016/j.matlet.2007.06.049

[31] RUDGE S R, KURTZ T L, VESSELY C R, CATTERALL L G and WILLIAMSON D L. Preparation, characterization, and performance of magnetic iron-carbon composite microparticles for chemotherapy. Biomaterials, 2000, 21(14): 1411-1420.

DOI: 10.1016/s0142-9612(00)00006-5

[32] LI Y J, CHEN J, LIU J B, MA M Y, CHEN W and LI L Y. Activated carbon supported TiO2-photocatalysis doped with Fe ions for continuous treatment of dye wastewater in a dynamic reactor. Journal of Environmental Sciences-China, 2010, 22(8): 1290-1296.

DOI: 10.1016/s1001-0742(09)60252-7

[33] YANG M S, XIE Q, ZHANG J, LIU J, WANG Y, ZHANG X L and ZHANG Q W. Effects of coal rank, Fe3O4 amounts and activation temperature on the preparation and characteristics of magnetic activated carbon. Mining Science and Technology (China), 2010, 20(6): 872-876.

DOI: 10.1016/s1674-5264(09)60298-2

[34] ZHANG J, XIE Q, LIU J, YANG M S and YAO X. Role of Ni(NO3)2 in the preparation of a magnetic coal-based activated carbon. Mining Science and Technology (China), 2011, 21(4): 599-603.

DOI: 10.1016/j.mstc.2011.01.003

[35] SNELL F R D and ETTRE L S. Encyclopedia of industrial chemical analysis. Interscience Publisher, 1974, (19): 107-109.

[36] NI Y N, XIA Z Z and KOKOT S. A kinetic spectrophotometric method for simultaneous determination of phenol and its three derivatives with the aid of artificial neural network. Journal of Hazardous Materials, 2011, 192(2): 722-729.

DOI: 10.1016/j.jhazmat.2011.05.081

[37] HJ/T 399-2007, Water quality-determination of the chemical oxygen demand - fast digestion-spectrophotometric method. Ministry of Environmental Protection of the People's Republic of China, 2007. (In Chinese).

[38] ASILTURK M and SENER S. TiO2-activated carbon photocatalysts: Preparation, characterization and photocatalytic activities. Chemical Engineering Journal, 2012, 180: 354-363.

DOI: 10.1016/j.cej.2011.11.045

[39] SUHAS, CARROTT P J M and CARROTT M. Lignin - from natural adsorbent to activated carbon: A review. Bioresource Technology, 2007, 98(12): 2301-2312.

DOI: 10.1016/j.biortech.2006.08.008

[40] DIAS J M, ALVIM F M C M, ALMEIDA M F. RIVERA U J and SAN CHEZ P M. Waste materials for activated carbon preparation and its use in aqueous-phase treatment: A review. Journal of Environmental Management, 2007, 85(4): 833-846.

DOI: 10.1016/j.jenvman.2007.07.031

[41] RANDENIYA L K, BENDAVID A, MARTIN P J and PRESTON E W. Photoelectrochemical and structural properties of TiO2 and N-doped TiO2 thin films synthesized using pulsed direct current plasma-activated chemical vapor deposition. Journal of Physical Chemistry C, 2007, 111(49): 18334-18340.

DOI: 10.1021/jp075938u

[42] LIU Z G, ZHANG F S and SASAI R. Arsenate removal from water using Fe3O4-loaded activated carbon prepared from waste biomass. Chemical Engineering Journal, 2010, 160(1): 57-62.

DOI: 10.1016/j.cej.2010.03.003
