Study on the Interaction Law between the Shape Parameters and Permanent-Magnetic Adhesive Force of Railway Permanent-Magnetic Track Brake Equipment

Abstract:

This paper systematically analyzes the interaction law on how the shape parameters of brake magnet yoke affect the magnetic field distribution and the permanent-magnetic attraction by means of parameterized finite element numerical calculations based on the basic principles of train permanent track brake device and the mathematic model of permanent-magnetic attraction [1]. It is found: the permanent-magnetic attraction decreases with the increase of the width of rotor partition board and maximum value of the attraction appears at 16-20nm; the attraction slowly increases along with the increment of slipper chamfering but will decrease when the magnetic induction intensity of the material is saturated; the increase of the rotating angle of rotational magnetic axis leads to decrease of permanent-magnetic attraction; the vertical air gap between permanent-magnetic track brake and steel rail will make the attraction dramatically drop; and the slipper wear almost has little impact on the attraction. The shape parameters of magnetic track brake should be optimized in design by considering the permanent-magnetic attraction so that the efficiency of the brake can be brought into full play.

You might also be interested in these eBooks

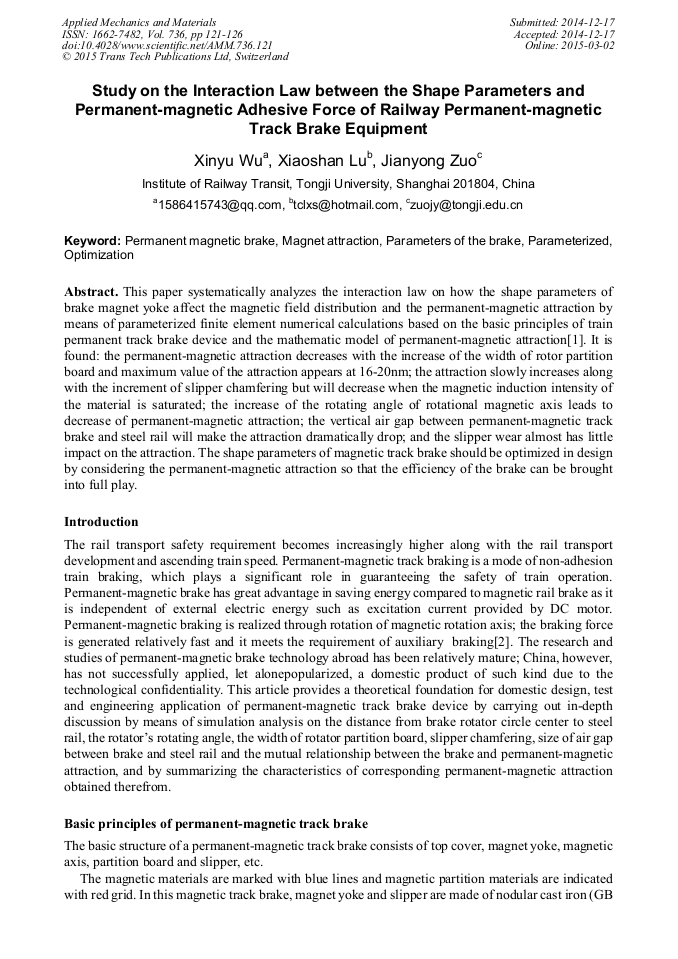

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 736)

Pages:

121-126

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.736.121

Citation:

Cite this paper

Online since:

March 2015

Authors:

Xin Yu Wu*, Xiao Shan Lu, Jian Yong Zuo

Keywords:

Magnet Attraction, Optimization, Parameterized, Parameters of Brake, Permanent Magnetic Brake

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] O Arias-Cuevas. Field investigations into the performance of magnetictrack brakes of an electrical multiple unit againstslippery tracks. Part 2: Braking force and side effects. (2011-5).

Google Scholar

[2] Rail Safety & Standard Board. Overview of magnetic brakes[R]. London, (2002: 5-10).

Google Scholar

[3] BSI. BS EN 13452-1-2003 Railway applications-Braking-Mass transit brake system Part 1; Performance requirements [S]. London, (2003: 18-20).

Google Scholar

[4] Jenks, C. W. Improved methods for increasingwheel/rail adhesion in the presence of natural contaminants. (Transportation Research Board National ResearchCouncil, May 1997).

Google Scholar

[5] Lin Taiping, Lin Hui. Study of Electromagnetic Track Braking Device [J], (China Railway Science 1997(1): 14-28. ).

Google Scholar
