The Study on After-Treatment System and Algorithm of Piezoelectric Micromachined Modal Gyroscope

Abstract:

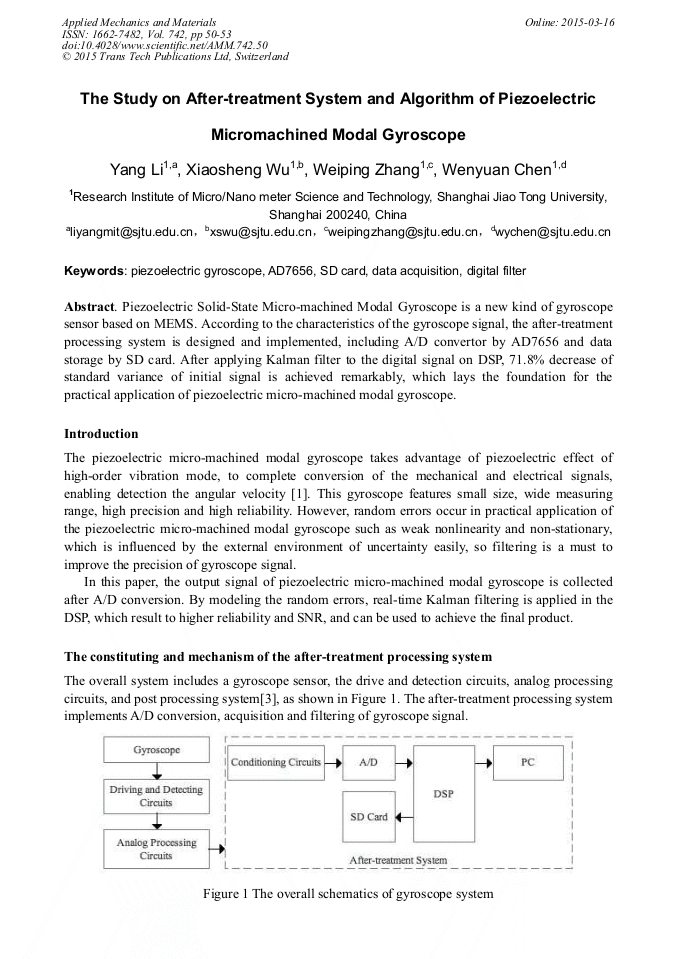

Piezoelectric Solid-State Micro-machined Modal Gyroscope is a new kind of gyroscope sensor based on MEMS. According to the characteristics of the gyroscope signal, the after-treatment processing system is designed and implemented, including A/D convertor by AD7656 and data storage by SD card. After applying Kalman filter to the digital signal on DSP, 71.8% decrease of standard variance of initial signal is achieved remarkably, which lays the foundation for the practical application of piezoelectric micro-machined modal gyroscope.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 742)

Pages:

50-53

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.742.50

Citation:

Cite this paper

Online since:

March 2015

Authors:

Yang Li*, Xiao Sheng Wu, Wei Ping Zhang, Wen Yuan Chen

Keywords:

AD7656, Data Acquisition, Digital Filter, Piezoelectric Gyroscope, SD Card
