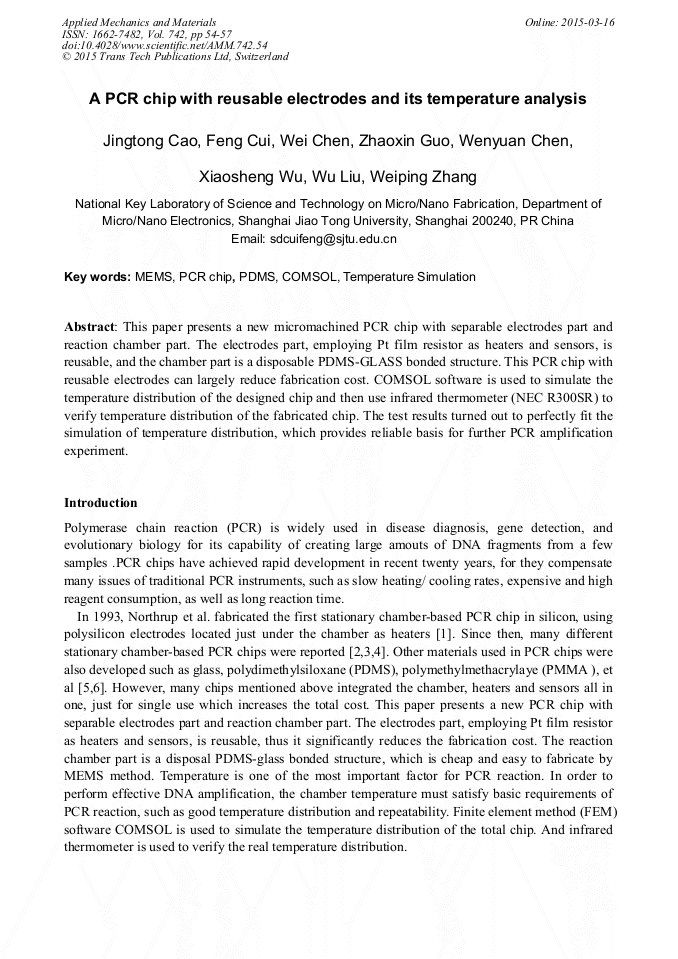

A PCR Chip with Reusable Electrodes and its Temperature Analysis

Abstract:

This paper presents a new micromachined PCR chip with separable electrodes part and reaction chamber part. The electrodes part, employing Pt film resistor as heaters and sensors, is reusable, and the chamber part is a disposable PDMS-GLASS bonded structure. This PCR chip with reusable electrodes can largely reduce fabrication cost. COMSOL software is used to simulate the temperature distribution of the designed chip and then use infrared thermometer (NEC R300SR) to verify temperature distribution of the fabricated chip. The test results turned out to perfectly fit the simulation of temperature distribution, which provides reliable basis for further PCR amplification experiment.
