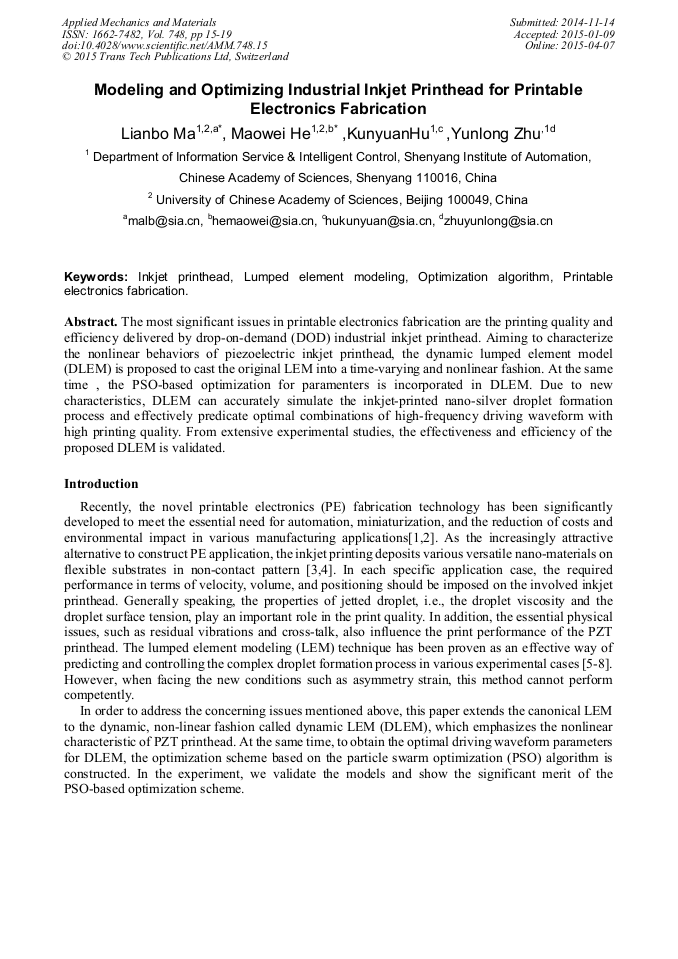

Modeling and Optimizing Industrial Inkjet Printhead for Printable Electronics Fabrication

Abstract:

The most significant issues in printable electronics fabrication are the printing quality and efficiency delivered by drop-on-demand (DOD) industrial inkjet printhead. Aiming to characterize the nonlinear behaviors of piezoelectric inkjet printhead, the dynamic lumped element model (DLEM) is proposed to cast the original LEM into a time-varying and nonlinear fashion. At the same time , the PSO-based optimization for paramenters is incorporated in DLEM. Due to new characteristics, DLEM can accurately simulate the inkjet-printed nanosilver droplet formation process and effectively predicate optimal combinations of high-frequency driving waveform with high printing quality. From extensive experimental studies, the effectiveness and efficiency of the proposed DLEM is validated.

• Periodical: Applied Mechanics and Materials (Volume 748)
• Pages: 15-19
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.748.15
• Online since: April 2015
• Authors: Lian Bo Ma*, Mao Wei He, Kun Yuan Hu, Yun Long Zhu
• Keywords: Inkjet Printhead, Lumped Element Modeling, Optimization Algorithm, Printable Electronics Fabrication

References

[1] M. Singh, HM. Haverinen, P. Dhagat, GE. Jabbour. Inkjet printing: processand its applications. Advanced Materials, Vol. 22, 2010, p.673–685.

DOI: 10.1002/adma.200901141

[2] H. Jaehyung, W. Alan, K. Antoine, Energetics of metal–organic interfaces: New experiments and assessment of the field, Materials Science and Engineering: R: Reports, Vol. 64, 2009, p.1–31.

[3] J.K. Byung, J.H. Je, Geometrical characterization of inkjet-printed conductive lines of nanosilver suspensions on a polymer substrate, Thin Solid Films vol. 518, 2010, p.2890–2896.

DOI: 10.1016/j.tsf.2009.10.126

[4] A.A. Khalate, Optimization-based feedforward control for a Drop-on-Demand inkjet printhead, American Control Conference (ACC), 2010, pp.2182-2187.

DOI: 10.1109/acc.2010.5531291

[5] H. Seitz, J. Heinzl, Modeling of a Microfluidic Device with Piezoelectric Actuators, Journal of Micromechanics and Microengineering, Vol. 14, 2004, pp.1140-1147.

DOI: 10.1088/0960-1317/14/8/004

[6] S. Kim, J. Sung, M.H. Lee, Pressure Wave and Fluid Velocity in a Bend-Mode Inkjet Nozzle with DoublePZT Actuators, Journal of Thermal Science Vol. 22, No. 1, 2013, p.29−35.

DOI: 10.1007/s11630-013-0588-z

[7] G. Wassink, Inkjet printhead performance enhancement by feedforwardinput design based on two-port modeling. Ph. D. thesis, Delft Universityof Technology, (2007).

[8] Q. Gallas, R. Holman, T. Nishida, B. Carroll, M. Sheplak and L. Cattafesta, Lumped Element Modeling of Piezoelectric-Driven Synthetic Jet Actuators, AIAA Journal, Vol. 41, No. 2, 2003, pp.240-247.

DOI: 10.2514/2.1936

[9] J. Kennedy, R. C. Eberhart, Particle swarm optimization, In: Proceedings of the 1995 IEEE International Conference on Neural Networks, vol. 4, 1995, p.1942-(1948).
