Effect of Additive on Surface Properties of Solution Coated PZT Ferroelectric Film

Sheng Qiang Wu; Xiao Fei Zhang; Yong Lin Xie

doi:10.4028/www.scientific.net/AMM.748.179

Paper Titles

A Flexible Ultrasensitive IgG-Modified rGO-Based FET Biosensor Fabricated by Aerosol Jet Printing
p.157

Preparation of BaTiO₃/PMMA Dielectric Films by Screen Printing
p.163

Inkjet Printing Enabling Silicon Photonics
p.171

Controllable Fabrication of Flexible Multi-Walled Carbon Nanotubes/Reduced Graphene Oxide Hybrid Ultrathin Films
p.175

Effect of Additive on Surface Properties of Solution Coated PZT Ferroelectric Film
p.179

Synthesis and Characterization of Substituted μ-oxo-bis[tetra-phenylporphyrinatoiron] Compounds
p.183

Intense Pulsed Light Sintering of Copper Nanoink for Conductive Copper Film
p.187

Enhancement Effect of UV Light Emission by ZnO/Au Film on Flexible Structures
p.193

DFT Study on Geometric and Electronic Structures Properties of Dye Sensitizers
p.197

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 748Effect of Additive on Surface Properties of...

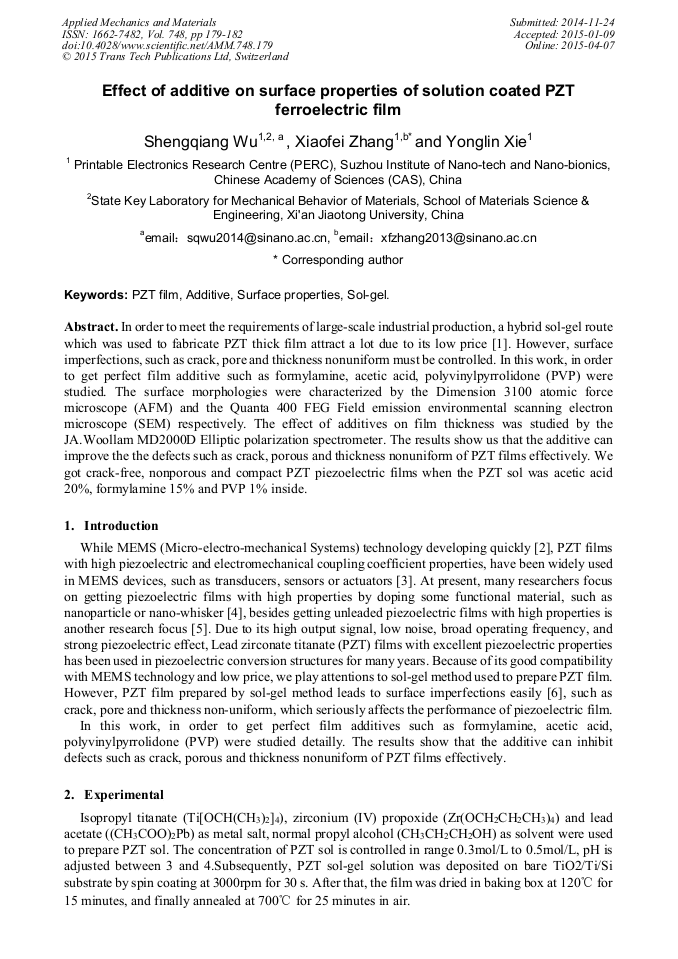

Effect of Additive on Surface Properties of Solution Coated PZT Ferroelectric Film

Abstract:

In order to meet the requirements of large-scale industrial production, a hybrid sol-gel route which was used to fabricate PZT thick film attract a lot due to its low price [1]. However, surface imperfections, such as crack, pore and thickness nonuniform must be controlled. In this work, in order to get perfect film additive such as formylamine, acetic acid, polyvinylpyrrolidone (PVP) were studied. The surface morphologies were characterized by the Dimension 3100 atomic force microscope (AFM) and the Quanta 400 FEG Field emission environmental scanning electron microscope (SEM) respectively. The effect of additives on film thickness was studied by the JA.Woollam MD2000D Elliptic polarization spectrometer. The results show us that the additive can improve the the defects such as crack, porous and thickness nonuniform of PZT films effectively. We got crack-free, nonporous and compact PZT piezoelectric films when the PZT sol was acetic acid 20%, formylamine 15% and PVP 1% inside.
