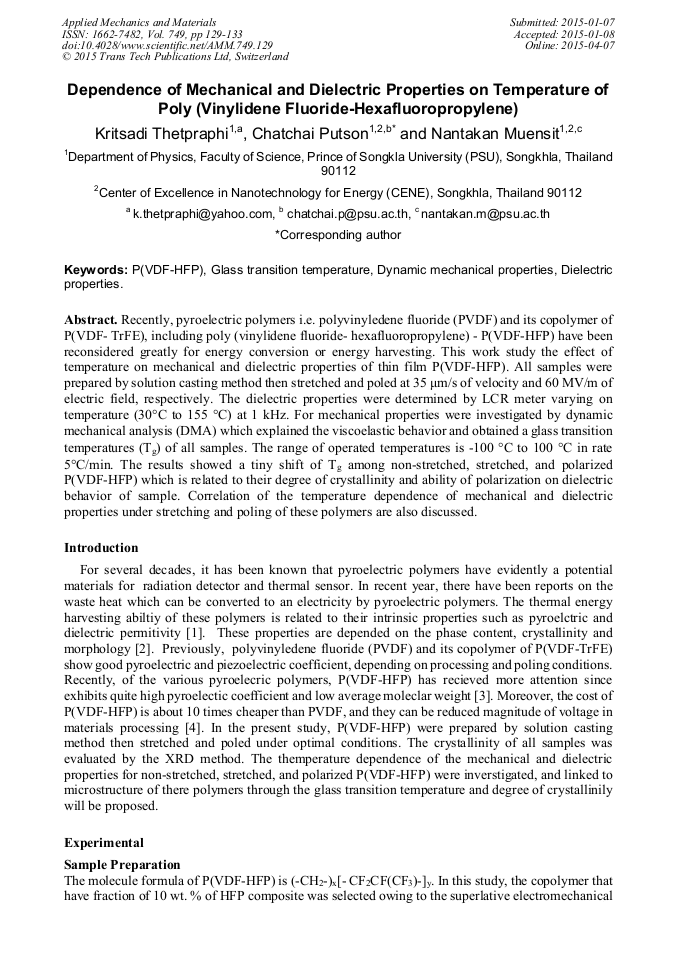

Dependence of Mechanical and Dielectric Properties on Temperature of Poly(Vinylidene Fluoride-Hexafluoropropylene)

Abstract:

Recently, pyroelectric polymers i.e. polyvinyledene fluoride (PVDF) and its copolymer of P(VDF-TrFE), including poly (vinylidene fluoride-hexafluoropropylene) - P(VDF-HFP) have been reconsidered greatly for energy conversion or energy harvesting. This work study the effect of temperature on mechanical and dielectric properties of thin film P(VDF-HFP). All samples were prepared by solution casting method then stretched and poled at 35 μm/s of velocity and 60 MV/m of electric field, respectively. The dielectric properties were determined by LCR meter varying on temperature (30°C to 155 °C) at 1 kHz. For mechanical properties were investigated by dynamic mechanical analysis (DMA) which explained the viscoelastic behavior and obtained a glass transition temperatures (T_g) of all samples. The range of operated temperatures is-100 °C to 100 °C in rate 5°C/min. The results showed a tiny shift of T_g among non-stretched, stretched, and polarized P(VDF-HFP) which is related to their degree of crystallinity and ability of polarization on dielectric behavior of sample. Correlation of the temperature dependence of mechanical and dielectric properties under stretching and poling of these polymers are also discussed.

• Periodical: Applied Mechanics and Materials (Volume 749)
• Pages: 129-133
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.749.129
• Online since: April 2015
• Authors: Kritsadi Thetpraphi, Chatchai Putson*, Nantakan Muensit
• Keywords: Dielectric Properties, Dynamic Mechanical Properties, Glass Transition Temperature, P(VDF-HFP)

References

[1] T. Furukawa, H. Kodama, Piezoelectric, pyroelectric and ferroelectric polymers as a functional soft matter, 14th International Symposium on Electret (ISE). IEEE. 14 (2011) 45-46.

DOI: 10.1109/ise.2011.6084974

[2] R. H. Upadhyay, R. R. Deshmukh, Investigation of dielectric properties of newly prepared β-phase polyvinylidene fluoride-barium titanate nanocomposite films, J. Electrostat. 71 (2013) 945-950.

DOI: 10.1016/j.elstat.2013.08.004

[3] W. Künstler, M. Wegener, M. Seiß, R. Gerhard-Multhaupt, Preparation and assessment of piezo- and pyroelectric poly(vinylidene fluoride-hexafluoropropylene) copolymer films, Appl. Phys. A-Mater. 73 (2001) 641-645.

DOI: 10.1007/s003390100991

[4] P. Sukwisuit, N. Muensit, S. S. Soontaranon, Rugmai, Micropower energy harvesting using poly(vinylidene fluoride hexafluoropropylene), Appl. Phys. Lett. 103 (2013) 063905.

DOI: 10.1063/1.4818339

[5] B. Neese, Y. Wang, B. Chu, K. Ren, S. Liu, Q. M. Zhang, C. Huang, J. West, Piezoelectric responses in poly(vinylidene fluoride/hexafluoropropylene), Appl. Phys. Lett. 90 (2007) 242917.

DOI: 10.1063/1.2748076

[6] B. Frick, D. Richter, The microscopic basis of the glass transition in polymers from neutron scattering studies, Science. 267 (1995) 1939-(1945).

DOI: 10.1126/science.267.5206.1939

[7] H. Urayama, T. Kanamori, Y. Kimura, Microstructure and thermamechanical properties of glassy polylactides with different optical purity of the lactate units, Macromol. Mater. Eng. 286 (2001) 705-713.

DOI: 10.1002/1439-2054(20011101)286:11<705::aid-mame705>3.0.co;2-q

[8] Information on http: /www. doitpoms. ac. uk.

[9] W. Stark, H. Goering, U. Michel, H. Bayerl, Online monitoring of thermoset post-curing by dynamic mechanical thermal analysis DMTA, Polym. Test. 28 (2009) 561-566.

DOI: 10.1016/j.polymertesting.2009.02.005

[10] R. Gregorio Jr., E. M. Ueno, Effect of crystalline phase, orientation and temperature on the dielectric properties of poly (vinylidene fluoride) (PVDF), J. Mater. Sci. 34 (1999) 4489-4450.
