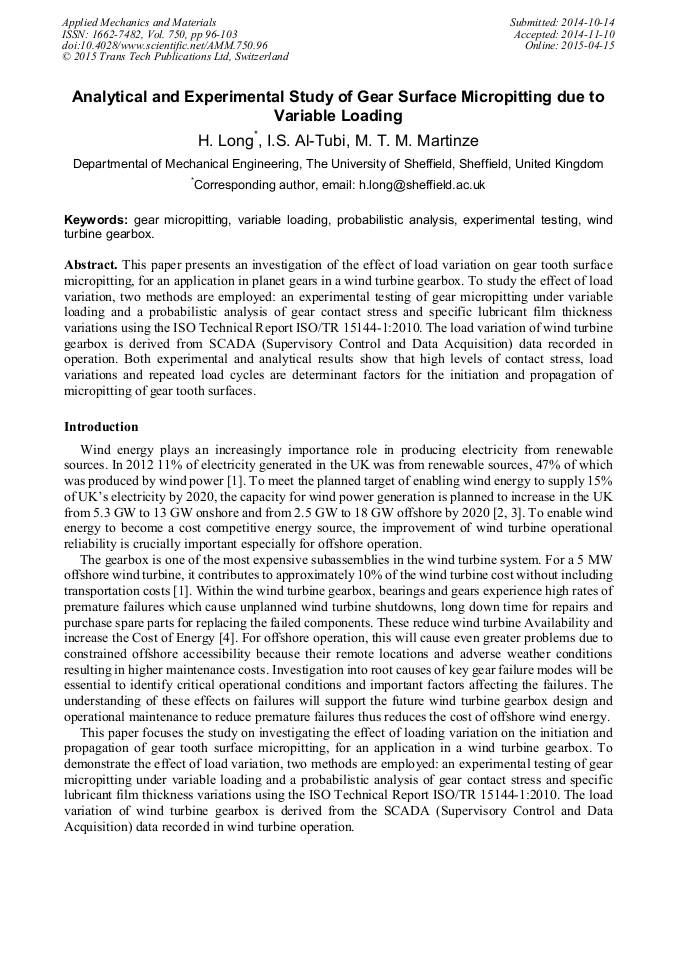

Analytical and Experimental Study of Gear Surface Micropitting Due to Variable Loading

Abstract:

This paper presents an investigation of the effect of load variation on gear tooth surface micropitting, for an application in planet gears in a wind turbine gearbox. To study the effect of load variation, two methods are employed: an experimental testing of gear micropitting under variable loading and a probabilistic analysis of gear contact stress and specific lubricant film thickness variations using the ISO Technical Report ISO/TR 15144-1:2010. The load variation of wind turbine gearbox is derived from SCADA (Supervisory Control and Data Acquisition) data recorded in operation. Both experimental and analytical results show that high levels of contact stress, load variations and repeated load cycles are determinant factors for the initiation and propagation of micropitting of gear tooth surfaces.

• Periodical: Applied Mechanics and Materials (Volume 750)
• Pages: 96-103
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.750.96
• Online since: April 2015
• Authors: Hui Long*, I.S. Al-Tubi, M.T.M. Martinze
• Keywords: Experimental Testing, Gear Micropitting, Probabilistic Analysis, Variable Loading, Wind Turbine Gearbox

References

[1] I. Macleay, K. Harris, A. Annut. Digest of United Kingdom Energy Statistics 2013. In.: Department of Energy and Climate Change, (2013).

[2] UK Renewable Energy Roadmap. In.: Department of Energy and Climate Change, (2011).

[3] UK Renewable Energy Roadmap Update 2012. In.: Department of Energy and Climate Change, (2012).

[4] Y. Feng, P.J. Tavner, H. Long, Early experiences with UK round 1 offshore wind farms, Proceedings of Institution of Civil Engineers: Energy, 163 (4) (2010) 167-181.

DOI: 10.1680/ener.2010.163.4.167

[5] BSI Standard Publication, ISO/TR 15144-1: 2010 Calculation of micro-pitting load capacity of cylindrical spur and helical gears, Introduction and basic principles, (2010) 1-56.

DOI: 10.3403/30213516

[6] J. Zhang, Influence of shot peening and surface finish on the fatigue of gears, PhD Dissertation, University of Newcastle, UK, (2005).

[7] F. Antoine, J. M. Besson, Simplified modellization of gear micropitting, Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 216(6)(2002) 291-302.

DOI: 10.1243/095441002321029035

[8] R. L. Errichello, Morphology of micropitting, The Journal of Gear Technology. (2012) 74-81.

[9] P. M Ku, Failure modes in gears. In Guichelaar P. J., Levy B. S., Parikh N. M., editors. Gear Manufacture and Performance. American Society For Metals, (1974).

[10] H. Long, A.A. Lord, D.T. Gethin, B.J. Roylance, Operating temperatures of oil-lubricated medium-speed gears: Numerical models and experimental results, Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 217 (2) (2003).

DOI: 10.1243/095441003765208745

[11] H. Long, G. Zhang, W. Luo, Modeling and analysis of transient contact stress and temperature of involute gears, Chinese Journal of Mechanical Engineering, 40 (8)(2004) 24-29.

DOI: 10.3901/jme.2004.08.024

[12] A. Oila and Bull, S. J, Assessment of the factors influencing micropitting in rolling/sliding contacts, Wear, 258 (10) (2005) 1510–1524.

DOI: 10.1016/j.wear.2004.10.012

[13] BSI Standard Publication, BS EN 61400-4: 2013, Wind Turbine, Part 4: Design requirements for wind turbine gearboxes (2013).

[14] I.S. Al-Tubi, H. Long, Prediction of wind turbine gear micropitting under variable load and speed conditions using ISO/TR 15144-1: 2010, Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 227 (9) (2013).

DOI: 10.1177/0954406212469593

[15] U. Kissling, Application of the first international calculation method for micropitting. Gear Technology. (2012) 54-60.
