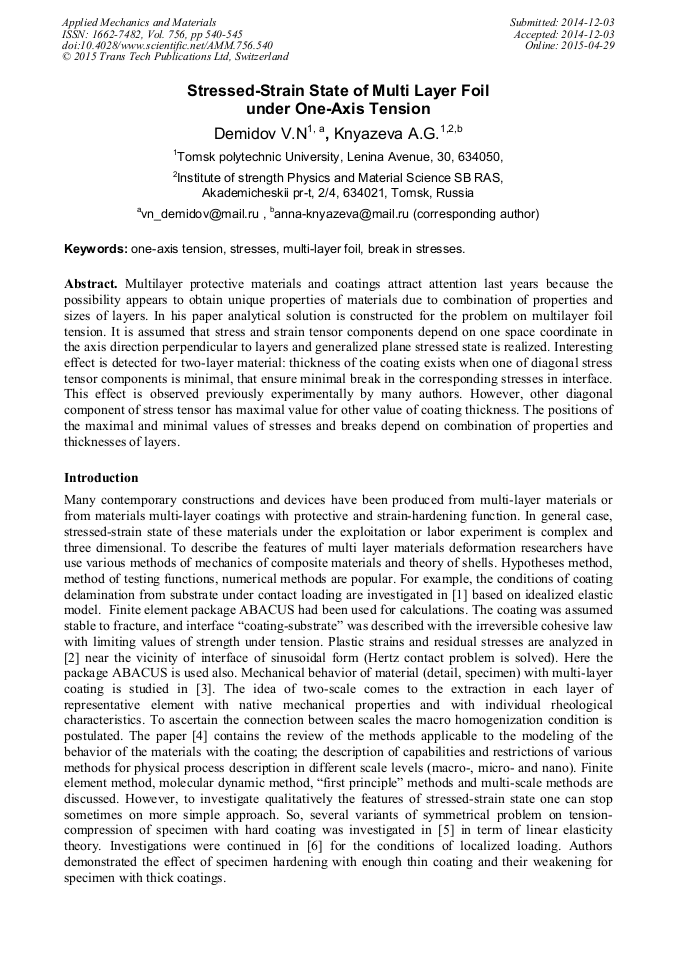

Stressed-Strain State of Multi Layer Foil under One-Axis Tension

Abstract:

Multilayer protective materials and coatings attract attention last years because the possibility appears to obtain unique properties of materials due to combination of properties and sizes of layers. In his paper analytical solution is constructed for the problem on multilayer foil tension. It is assumed that stress and strain tensor components depend on one space coordinate in the axis direction perpendicular to layers and generalized plane stressed state is realized. Interesting effect is detected for two-layer material: thickness of the coating exists when one of diagonal stress tensor components is minimal, that ensure minimal break in the corresponding stresses in interface. This effect is observed previously experimentally by many authors. However, other diagonal component of stress tensor has maximal value for other value of coating thickness. The positions of the maximal and minimal values of stresses and breaks depend on combination of properties and thicknesses of layers.

• Periodical: Applied Mechanics and Materials (Volume 756)
• Pages: 540-545
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.756.540
• Online since: April 2015
• Authors: V.N. Demidov, Anna G. Knyazeva*
• Keywords: Break in Stresses, Multi-Layer Foil, One-Axis Tension, Stresses

References

[1] S.M. Xia, Y.F. Gao, A.F. Bower, L.C. Lev, Y. -T. Cheng, Delamination mechanism maps for a strong elastic coating on an elastic–plastic substrate subjected to contact loading, International Journal of Solids and Structures. 44 (2007) 3685–3699.

DOI: 10.1016/j.ijsolstr.2006.10.009

[2] Y.F. Gao, A.F. Bower, K. -S. Kim, L. Lev, Y.T. Cheng The behavior of an elastic–perfectly plastic sinusoidal surface under contact loading, Wear. 261 (2006) 145–154.

DOI: 10.1016/j.wear.2005.09.016

[3] K. -H. Sauerland, R. Mahnken Two Scale FE Simulation of Coated Forming Tools under Thermo-Mechanical Loading, Technische mechanic. 32, 1, (2012), 84 – 101.

[4] Deqiang Yin, Zhenhai Xu, Jiling Feng, and Yi Qin, Numerical Modeling of Multilayered Coatings – Latest Developments and Applications, Manufacturing Rev. 2014, 1, 8 (Available online at: http: /mfr. edp-open. org).

DOI: 10.1051/mfreview/2014008

[5] Nemirovskii Yu.V., Yankovskii A.P., On the features of deformation of specimens with thin coatings, Physical mesomechanics. 2006, V. 9., № 2. – P. 17-26.

[6] Nemirovskii Yu.V., Yankovskii A.P., Deformation features of specimens with coatings under localized loadings, Physical mesomechanics. 2007, V. 10., № 2. – P. 29-42.

[7] Boley B.A., Weiner J.H. Theory of thermal stresses / John Wiley and Sons. Inc., New York – London. (1960).
