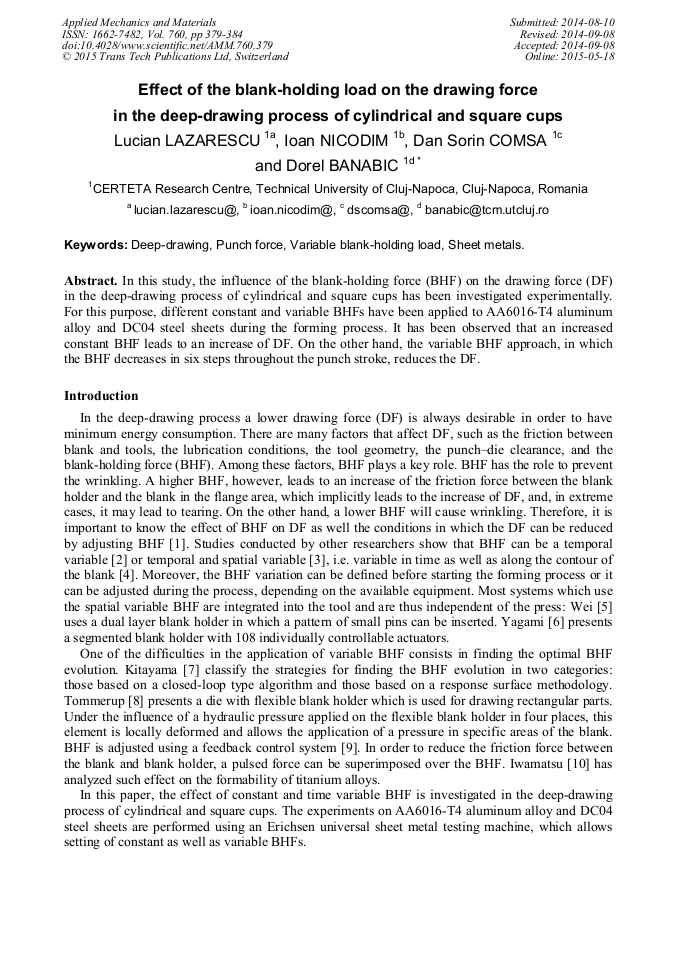

Effect of the Blank-Holding Load on the Drawing Force in the Deep-Drawing Process of Cylindrical and Square Cups

Abstract:

In this study, the influence of the blank-holding force (BHF) on the drawing force (DF) in the deep-drawing process of cylindrical and square cups has been investigated experimentally. For this purpose, different constant and variable BHFs have been applied to AA6016-T4 aluminum alloy and DC04 steel sheets during the forming process. It has been observed that an increased constant BHF leads to an increase of DF. On the other hand, the variable BHF approach, in which the BHF decreases in six steps throughout the punch stroke, reduces the DF.

• Periodical: Applied Mechanics and Materials (Volume 760)
• Pages: 379-384
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.760.379
• Online since: May 2015
• Authors: Lucian Lazarescu, Ioan Nicodim, Dan Sorin Comsa, Dorel Banabic
• Keywords: Deep-Drawing, Punch Force, Sheet Metals, Variable Blank-Holding Load
