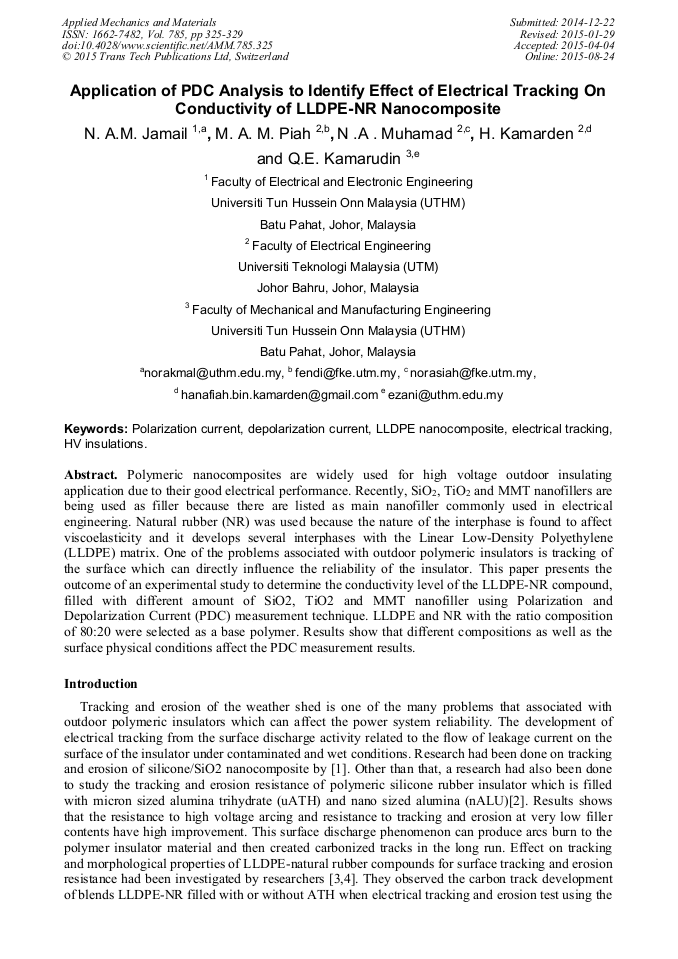

Application of PDC Analysis to Identify Effect of Electrical Tracking on Conductivity of LLDPE-NR Nanocomposite

Abstract:

Polymeric nanocomposites are widely used for high voltage outdoor insulating application due to their good electrical performance. Recently, SiO₂, TiO₂ and MMT nanofillers are being used as filler because there are listed as main nanofiller commonly used in electrical engineering. Natural rubber (NR) was used because the nature of the interphase is found to affect viscoelasticity and it develops several interphases with the Linear Low-Density Polyethylene (LLDPE) matrix. One of the problems associated with outdoor polymeric insulators is tracking of the surface which can directly influence the reliability of the insulator. This paper presents the outcome of an experimental study to determine the conductivity level of the LLDPE-NR compound, filled with different amount of SiO2, TiO2 and MMT nanofiller using Polarization and Depolarization Current (PDC) measurement technique. LLDPE and NR with the ratio composition of 80:20 were selected as a base polymer. Results show that different compositions as well as the surface physical conditions affect the PDC measurement results.

• Periodical: Applied Mechanics and Materials (Volume 785)
• Pages: 325-329
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.785.325
• Online since: August 2015
• Authors: N.A.M. Jamail, M.A.M. Piah, Nor Asiah Muhamad, Hanafiah Kamarden, Qamarul Ezani Kamarudin
• Keywords: Depolarization Current, Electrical Tracking, Hv Insulations, LLDPE Nanocomposite, Polarization Current

References

[1] S. Raetzke and J. Kindersberger, Role of interphase on the resistance to high-voltage arcing, on tracking and erosion of silicone/SiO2 nanocomposites, Dielectrics and Electrical Insulation, IEEE Transactions on, vol. 17, pp.607-614.

DOI: 10.1109/tdei.2010.5448118

[2] J. V. Vas, et al., Tracking and erosion resistance of silicone rubber nanocomposites under positive and negative dc voltages, in Electrical Insulation and Dielectric Phenomena (CEIDP), 2010 Annual Report Conference on, pp.1-4.

DOI: 10.1109/ceidp.2010.5724032

[3] M. A. M. Piah, et al., Leakage current and surface discharge phenomena: effect on tracking and morphological properties of LLDPE-natural rubber compounds, in Properties and Applications of Dielectric Materials, 2003. Proceedings of the 7th International Conference on, 2003, pp.347-350.

DOI: 10.1109/icpadm.2003.1218423

[4] M. A. M. Piah, et al., Electrical tracking performance of LLDPE-natural rubber blends by employing combination of leakage current level and rate of carbon track propagation, Dielectrics and Electrical Insulation, IEEE Transactions on, vol. 12, pp.1259-1265, (2005).

DOI: 10.1109/tdei.2005.1561806

[5] Jamail, N.A.M., M.A.M. Piah, and N.A. Muhamad. Effects of SiO2 nanofillers on Polarization and Depolarization Current (PDC) of LLDPE-NR nanocomposite insulating materials. in Power and Energy (PECon), 2012 IEEE International Conference on. (2012).

DOI: 10.1109/pecon.2012.6450306

[6] N.A.M. Jamail, M.A.M. Piah, N.A. Muhamad, R.A. Zainir, N. F. Kasri, Q.E. Kamarudin, Polarization And Depolarization Current Measurement of Polymer Added with Nano-Particles of Silicon Oxide for Hv Insulation, Jurnal Teknologi, 2013, Vol. 64, No. 4, pg: 141-144.

DOI: 10.11113/jt.v64.2116

[7] Nor Akmal Mohd Jamail , Mohamed Afendi Mohamed Piah, Nor Asiah Muhamad , Rubiatul Addawiyah Zainir , Nur Faizal Kasri Effects of SiO2 and TiO2 Nanofillers on Conductivity Level of LLDPE-NR Nanocomposite HV Insulator, Applied Mechanics and Materials Journal, 2013, Volumes 284 – 287, pages: 305-309.

DOI: 10.4028/www.scientific.net/amm.284-287.305

[8] N. A. M. Jamail, M. A. M. Piah , F. L. Muhamedin, N. F. Kasri, N. A. Muhamad, Q. E. Kamarudin, Electrical Tracking Characterization of LLDPE-Natural Rubber Blends Filled with Nanofillers, 2013 IEEE Conference on Electrical Insulation and Dielectric Phenomena, 20 – 23 Oktober 2013, Shenzhen, CHINA.

DOI: 10.1109/ceidp.2013.6748312

[9] T. K. Saha and P. Purkait, Investigation of polarization and depolarization current measurements for the assessment of oil-paper insulation of aged transformers, Dielectrics and Electrical Insulation, IEEE Transactions on, vol. 11, pp.144-154, (2004).

DOI: 10.1109/tdei.2004.1266329

[10] T. K. Saha, et al., Optimal Time Selection for the Polarisation and Depolarisation Current Measurement for Power Transformer Insulation Diagnosis, in Power Engineering Society General Meeting, 2007. IEEE, 2007, pp.1-7.

DOI: 10.1109/pes.2007.385514

[11] T. K. Saha and P. Purkait, Investigation of an expert system for the condition assessment of transformer insulation based on dielectric response measurements, Power Delivery, IEEE Transactions on, vol. 19, pp.1127-1134, (2004).

DOI: 10.1109/tpwrd.2004.829100
