Improvisation on Standard Limit of the Critical Clearing Time Specified for the Protection Relays Using one Machine Infinite Bus Equivalent

Abstract:

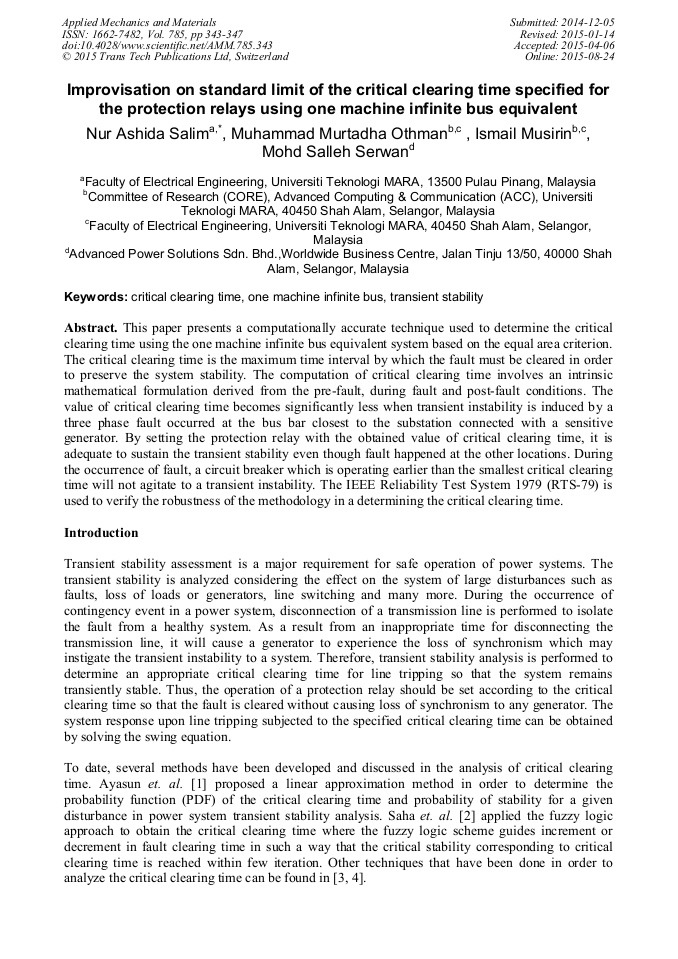

This paper presents a computationally accurate technique used to determine the critical clearing time using the one machine infinite bus equivalent system based on the equal area criterion. The critical clearing time is the maximum time interval by which the fault must be cleared in order to preserve the system stability. The computation of critical clearing time involves an intrinsic mathematical formulation derived from the pre-fault, during fault and post-fault conditions. The value of critical clearing time becomes significantly less when transient instability is induced by a three phase fault occurred at the bus bar closest to the substation connected with a sensitive generator. By setting the protection relay with the obtained value of critical clearing time, it is adequate to sustain the transient stability even though fault happened at the other locations. During the occurrence of fault, a circuit breaker which is operating earlier than the smallest critical clearing time will not agitate to a transient instability. The IEEE Reliability Test System 1979 (RTS-79) is used to verify the robustness of the methodology in a determining the critical clearing time.

• Periodical: Applied Mechanics and Materials (Volume 785)
• Pages: 343-347
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.785.343
• Online since: August 2015
• Authors: Nur Ashida Salim*, Muhammad Murtadha Othman, Ismail Musirin, Mohd Salleh Serwan
• Keywords: Critical Clearing Time, One Machine Infinite Bus, Transient Stability
