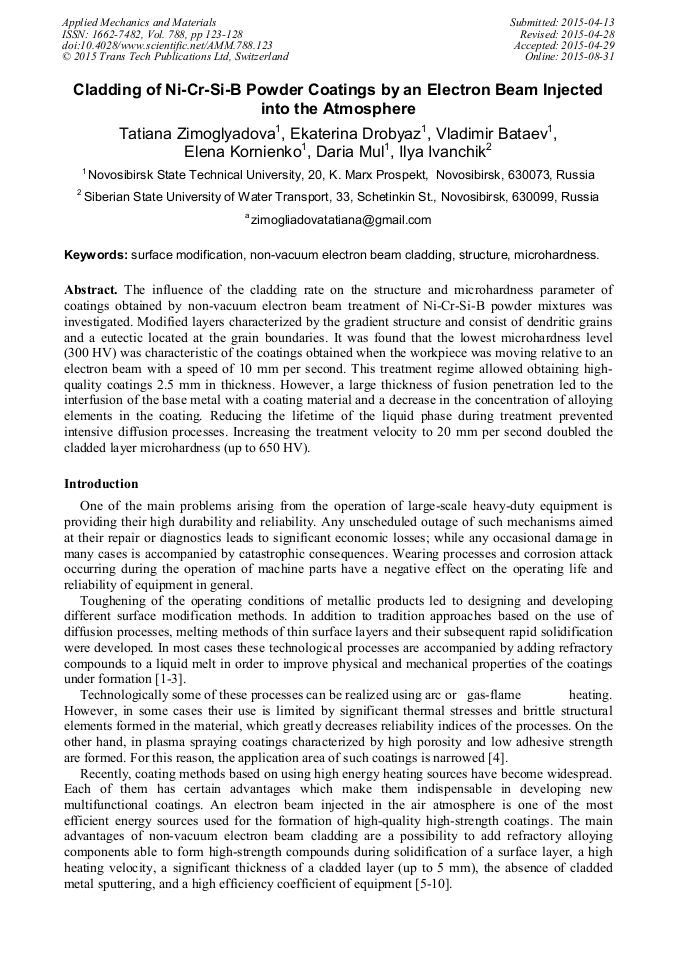

Cladding of Ni-Cr-Si-B Powder Coatings by an Electron Beam Injected into the Atmosphere

Abstract:

The influence of the cladding rate on the structure and microhardness parameter of coatings obtained by non-vacuum electron beam treatment of Ni-Cr-Si-B powder mixtures was investigated. Modified layers characterized by the gradient structure and consist of dendritic grains and a eutectic located at the grain boundaries. It was found that the lowest microhardness level (300 HV) was characteristic of the coatings obtained when the workpiece was moving relative to an electron beam with a speed of 10 mm per second. This treatment regime allowed obtaining high-quality coatings 2.5 mm in thickness. However, a large thickness of fusion penetration led to the interfusion of the base metal with a coating material and a decrease in the concentration of alloying elements in the coating. Reducing the lifetime of the liquid phase during treatment prevented intensive diffusion processes. Increasing the treatment velocity to 20 mm per second doubled the cladded layer microhardness (up to 650 HV).

• Periodical: Applied Mechanics and Materials (Volume 788)
• Pages: 123-128
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.788.123
• Online since: August 2015
• Authors: Tatyana Zimoglyadova*, Ekaterina Drobyaz, Vladimir Bataev, Elena Kornienko, Daria Mul, Ilija Ivanchik
• Keywords: Microhardness, Non-Vacuum Electron Beam Cladding, Structure, Surface Modification

References

[1] E.S. Vaschuk, E.A. Budovskikh, V.E. Gromov, Yu.F. Ivanov, A.M. Teplykh, E.A. Drobyaz, The influence of electron beam treatment on a surface of steel 45 after electroexplosive borocoppering, Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty). 3 (2011).

DOI: 10.14258/izvasu(2021)4-02

[2] I.M. PoIetika, M.G. Golkovsky, M.D. Borisov, R.A. SaIimov, M.V. Perovskaya, Formation of strengthening coatings fused by relativistic electron beam, Physics and chemistry of materials treatment. 5 (2005) 29-41.

[3] D.O. Mul, N.S. Belousova, D.S. Krivezhenko, L.I. Shevtsova, A.A. Losinskaya, Electron beam cladding of powder mixtures containing titanium and tantalum on specimens of steel 40Х, Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty). 63 (2014).

[4] E. Kornienko, A. Smirnov, V. Kuzmin, Structure and properties of self-fluxing coating, obtained by air-plasma spraying, Applied Mechanics and Materials. 698 (2015) 405-410.

DOI: 10.4028/www.scientific.net/amm.698.405

[5] M. Golkovskii, Zakalka i naplavka relyativistskim electronnim puchkom vne vakuuma (in Russian), LAP LAMBERT Academic Publishing, Germany, (2007).

[6] I. M. Poletika, M.G. Golkovskii, T.A. Krylova, M.V. Perovskaya, Structure and properties of coatings, containing chrome, obtained by non-vacuum electron beam cladding at the air atmosphere, Met. Sci. Heat Treat. 3 (2009) 15-22.

DOI: 10.1007/s11041-009-9137-5

[7] I.M. Poletika, S.A. Makarov, T.A. Krylova, M.G. Golkovskii, Using the Cr-C-B systems for alloying metal by in out-of-vacuum electron beam surfacing, Welding international. 26 (2012) 776-781.

DOI: 10.1080/09507116.2011.653160

[8] I.A. Bataev, A.A. Bataev, A.A. Losinskaya, R.A. Dostovalov, A.I. Popelyukh, E.A. Drobyaz, M.G. Golkovskii, Surface hardening of steels with carbon by non-vacuum electron-beam processing, Surf. Coat. Technol. 242 (2014) 164-169.

DOI: 10.1016/j.surfcoat.2014.01.038

[9] I.A. Bataev, A.A. Bataev, A.A. Ruktuev, T.V. Zhuravina, N.K. Kuksanov, R.A. Salimov, V.A. Bataev, M.G. Golkovskii, Atmospheric electron-beam surface alloying of titanium with tantalum, Mater. Sci. Eng., A. 578 (2013) 310–317.

DOI: 10.1016/j.msea.2013.04.103

[10] O.G. Lenivtseva, I. A Bataev, N.S. Belousova, E.D. Golovin, T.A. Zimoglyadova, Аtmospheric electron-beam overlay welding of carbon containing powder mixtures onto technically pure titanium VT1-0, Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty). 61 (2013).

[11] Yu.S. Borisov, V. Yu. Haskin, S.G. Voinarovich, A.N. Kislitsa, A. Yu. Tunic, L.I. Adeeva, E.K. Kuzmich-Yanchuk, A.V. Bernatskii, A.V. Siora, Kombinirovannaya lazerno-mikroplazmennaya naplavka poroshkami splavov sistemi Ni-Cr-B-Si (in Russian), The Paton welding journal. 715 (2012).

[12] A.F. Panteleenko, O.G. Devoyno, Research of diffusive alloyed self­fuxing powders on the basis of steels of an austenitic class, Foundry and metallurgy. 69 (2013) 104-107.

[13] I. Hemmati, V. Ocelik, K. Csach, J. Th.M. Hosson, Microstructure and phase formation in a rapidly solidified laser-deposited Ni-Cr-B-Si-C hardfacing alloy, Metall. Mater. Trans. A. 45 (2014) 878-892.

DOI: 10.1007/s11661-013-2004-4

[14] N.V. Koptseva, M.P. Barishnikov, U.U. Efimova, S.V. Zotov, Research of the surface with abrasive wear thermal sprayed Ni – Cr – Si – B – C coatings, Journal of Samara state technical university ser. physical and mathematical sciences. 39 (2005).

[15] E. Drobyaz, T. Zimoglyadova, V. Gromov, Electron-beam surfacing wear-resistant coatings, reinforced refractory metal's borides, Applied Mechanics and Materials. 698 (2015) 419-423.

DOI: 10.4028/www.scientific.net/amm.698.419
