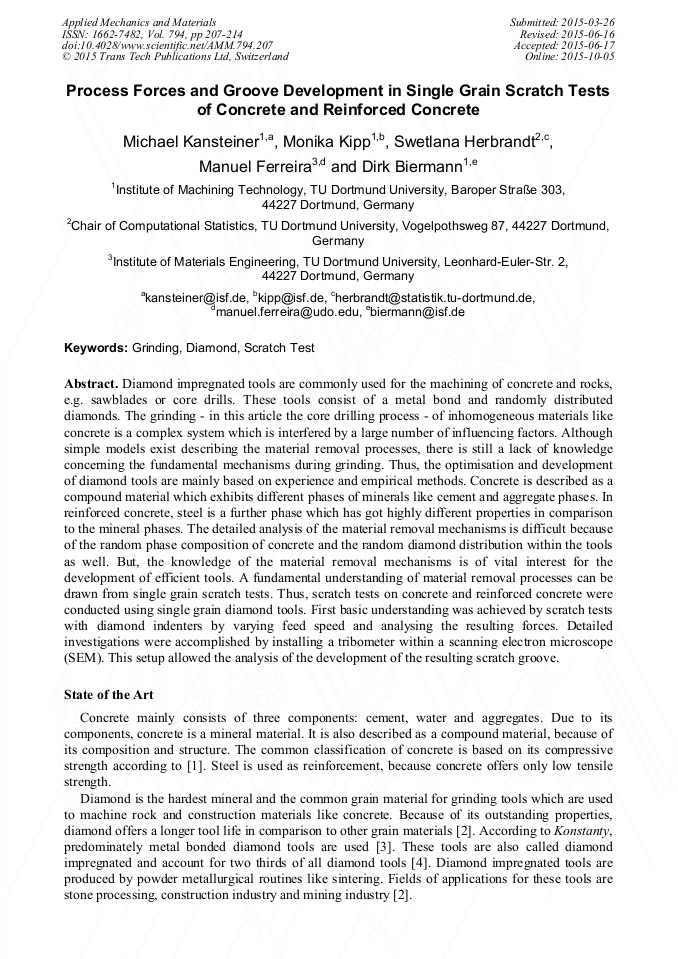

Process Forces and Groove Development in Single Grain Scratch Tests of Concrete and Reinforced Concrete

Abstract:

Diamond impregnated tools are commonly used for the machining of concrete and rocks, e.g. sawblades or core drills. These tools consist of a metal bond and randomly distributed diamonds. The grinding of inhomogeneous materials like concrete is a complex system which is interfered by a large number of influencing factors. Although simple models exist describing the material removal processes, there is still a lack of knowledge concerning the fundamental mechanisms during grinding. Thus, the optimisation and development of diamond tools are mainly based on experience and empirical methods. Concrete is described as a compound material which exhibits different phases of minerals like cement and aggregate phases. In reinforced concrete, steel is a further phase which has got highly different properties in comparison to the mineral phases. The detailed analysis of the material removal mechanisms is difficult because of the random phase composition of concrete and the random diamond distribution within the tools as well. But, the knowledge of the material removal mechanisms are of vital interest for the development of efficient tools. A fundamental understanding of material removal processes and wear mechanisms can be drawn from single grain scratch tests. Recent developments in diamond tool manufacturing provide the defined positioning of diamond grains in the tool body. This offers new possibilities based on scratch tests regarding tool development. Thus, scratch tests on concrete and reinforced concrete were conducted using single grain diamond tools. First basic understanding was achieved by scratch tests with diamond indenters by varying feed speed and analysing the resulting forces. Detailed investigations were accomplished by installing a tribometer within a scanning electron microscope (SEM). This setup allowed the analysis of the development of the resulting scratch groove.

• Periodical: Applied Mechanics and Materials (Volume 794)
• Pages: 207-214
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.794.207
• Online since: October 2015
• Authors: Michael Kansteiner*, Monika Kipp, Swetlana Herbrandt, Manuel Ferreira, Dirk Biermann
• Keywords: Diamond, Grinding, Scratch Test

References

[1] Deutsches Institut für Normung e. V., DIN EN 206-1 Beton Teil 1: Festlegung, Eigenschaften, Herstellung und Konformität, Beuth Verlag, (2001).

DOI: 10.31030/1534911

[2] W. Tillmann, Trends and market perspectives for diamond tools in the construction industry, International Journal of Refractory Metals and Hard Materials 18 no. 6 (2000) 301-306.

DOI: 10.1016/s0263-4368(00)00034-2

[3] J. Konstanty, Powder metallurgy diamond tools, Elsevier, Amsterdam, (2005).

[4] J. Konstanty, Applications of powder metallurgy to cutting tools, in: I. Chang, Y. Zhao (Eds. ), Advances in Powder Metallurgy, Woodhead Publishing Limited, Cambridge, pp.555-585.

DOI: 10.1533/9780857098900.4.555

[5] P. Bienert, Kreissägen von Beton mit Diamantwerkzeugen, (1978).

[6] B. Denkena, J. Köhler, F. Seiffert, Deterministic Grain Distribution on Cut-Off Grinding Wheels, in: B. Denkena, F. -W. Bach, W. Tillmann, W. Theisen (Eds. ), 1st International Conference on Stone and Concrete Machining - Proceedings, PZH Verlag, Garbsen, 2011, pp.99-104.

DOI: 10.1504/ijat.2011.041606

[7] G. Weber, DiaSet – now fully automatic setting of diamond arrays, DIAMOND TOOLING JOURNAL no. 1 (2010) 38-40.

[8] F. Klocke, Fertigungsverfahren 2, 4th ed., Springer-Verlag, Berlin Heidelberg, (2005).

[9] M. Meding, Beschreibung des Prozeßgeschehens bei der Zerspanung von Gestein und von dessen bruchmechanischem Verhalten unter besonderer Berücksichtigung der Schallemissionsanalyse, (1993).

[10] H. Apmann, Seilschleifen von metallischen und mineralischen Werkstoffen, PZH Verlag, Garbsen, (2004).

[11] B. Denkena, H. K. Tönshoff, J. Becker, J. Bockhorst, H. Hillmann-Apmann, The Mechanisms of Material Separation at Steel and Concrete Material, in: Meeting the Challenges of a Changing Market Place, Euro PM, European Powder Metallurgy Conference, European Powder Metallurgy Association (EPMA), Bellstone, Shrewsbury, 2003, pp.87-95.

DOI: 10.1179/pom.2003.46.4.302
