Effects of Polishing Direction on the Adhesion Behaviour of Thermal Oxide Scales on AISI 441 Stainless Steel Measured by a Tensile Test

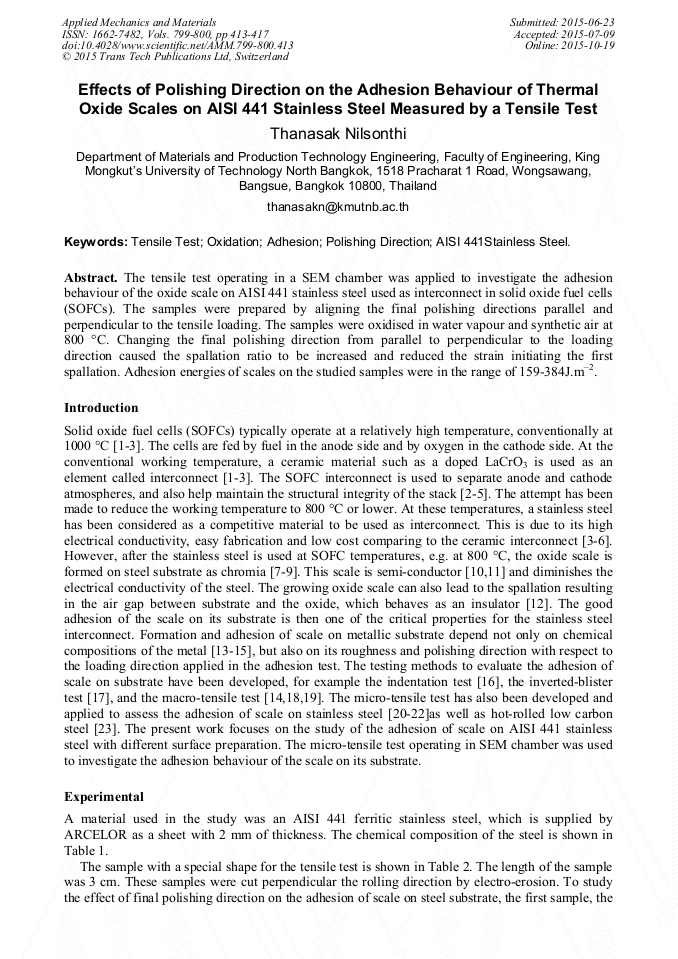

Article Preview

Abstract:

The tensile test operating in a SEM chamber was applied to investigate the adhesion behaviour of the oxide scale on AISI 441 stainless steel used as interconnect in solid oxide fuel cells (SOFCs). The samples were prepared by aligning the final polishing directions parallel and perpendicular to the tensile loading. The samples were oxidised in water vapour and synthetic air at 800 °C. Changing the final polishing direction from parallel toperpendicular to the loading direction caused the spallation ratio to be increased and reduced the strain initiating the first spallation. Adhesion energiesof scales on the studied samples were in the range of 159-384J.m^–².

You might also be interested in these eBooks

Mechanical and Electrical Technology VII

Info:

Periodical:

Applied Mechanics and Materials (Volumes 799-800)

Pages:

413-417

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.799-800.413

Citation:

Cite this paper

Online since:

October 2015

Authors:

Thanasak Nilsonthi*

Keywords:

Adhesion, AISI 441Stainless Steel, Oxidation, Polishing Direction, Tensile Test

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] C. Déportes, M. Duclot, P. Fabry, J. Fouletier, A. Hammou, M. Kleitz, E. Siebert andJ.L. Souquet: Electrochimie des solides (Presses Universitaires de Grenoble, France 1994).

[2] L. Antoni: Mater. Sci. Forum Vol. 461-464(2004), pp.1073-1090.

[3] W.Z. Zhu and S.C. Deevi: Mater. Sci. Eng. A Vol. 384 (2003), pp.227-243.

[4] W.J. Quadakkers, J. Pirón-Abellàn, V. Shemet and L. Sigheiser: Mater. HighTemp. Vol. 20 (2003), pp.115-127.

[5] Z. Yang, K.S. Weil, D.M. Paxton and J.W. Stevenson:J. of Electro. Society Vol. 150 (2003), pp.1188-1201.

[6] J.W. Fergus: Mater. Sci. Eng. A Vol. 397 (2005), pp.271-283.

[7] P. Promdirek, G. Lothongkum, S. Chandra-ambhorn, Y. Wouters and A. Galerie: Mater. Corros. Vol. 62(2011), pp.616-622.

[8] W. Wongpromrat, H. Thaikan, W. Chandra-ambhorn and S. Chandra-ambhorn: Oxid. Met. Vol. 79 (2013), pp.529-540.

DOI: 10.1007/s11085-013-9379-x

[9] P. Promdirek, G. Lothongkum, S. Chandra-ambhorn, Y. Wouters and A. Galerie: Oxid. Met. Vol. 81 (2014), pp.315-329.

DOI: 10.1007/s11085-013-9432-9

[10] T. Brylewski, M. Nanko, T. Maruyama and K. Przybylski: Solid State IonicsVol. 142(2001), pp.131-150.

[11] N. Sakai, T. Horita, Y. P. Xiong, K. Yamaji, H. Kishimoto, M. l E. Brito, H. Yokokawa andT. Maruyama: Solid State Ionics Vol. 176(2005), pp.681-686.

DOI: 10.1016/j.ssi.2004.11.012

[12] S. Chandra-ambhorn, Y. Wouters, M. Dupeux, A. Galerie, L. Antoni and F. Toscan: Proceedings on SOFC IX Vol. 2 (2005), pp.1817-1821.

[13] S. Chandra-ambhorn, T. Somphakdee and W. Chandra-ambhorn: Mater. Sci. Forum Vol. 696 (2011), pp.156-161.

DOI: 10.4028/www.scientific.net/msf.696.156

[14] T. Nilsonthi, S. Chandra-ambhorn, Y. Wouters and A. Galerie: Oxid. Met. Vol. 79 (2013), pp.325-335.

DOI: 10.1007/s11085-012-9356-9

[15] S. Chandra-ambhorn, T. Nilsonthi, Y. Wouters and A. Galerie: Corros. Sci. Vol. 87 (2014), pp.101-110.

[16] X. Sun, W.N. Liu, E. Stephens and M.A. Khaleel: J. of Power Sources Vol. 176(2008), pp.167-168.

[17] J. Mougin, M. Dupeux, A. Galerie and L. Antoni: Mater. Sci. Tech. Vol. 18(2002), pp.1217-1220.

[18] K. Ngamkham, S. Niltawach and S. Chandra-ambhorn: Key Eng. Mater. Vol. 462-463 (2011), pp.407-412.

DOI: 10.4028/www.scientific.net/kem.462-463.407

[19] S. Chandra-ambhorn, K. Ngamkham and N. Jiratthanakul: Oxid. Met. Vol. 80 (2013), pp.61-72.

DOI: 10.1007/s11085-013-9370-6

[20] F. Toscan, L. Antoni, Y. Wouters, M. Dupeux and A. Galerie: Mater. Sci. Forum Vol. 461-464 (2004), pp.705-712.

DOI: 10.4028/www.scientific.net/msf.461-464.705

[21] S. Chandra-ambhorn, F. Roussel-Dherbey, F. Toscan, Y. Wouters, A. Galerie andM. Dupeux: Mater. Sci. Tech. Vol. 23 (2007), pp.497-501.

DOI: 10.1179/174328407x168964

[22] S. Chandra-ambhorn, T. Nilsonthi, Y. Madi and A. Galerie: Key Eng. Mater. Vol. 410-411 (2009), pp.187-193.

DOI: 10.4028/www.scientific.net/kem.410-411.187

[23] T. Nilsonthi, J. Tungtrongpairoj, S. Chandra-ambhorn, Y. Wouters and A. Galerie: Steel Res. Inter. (2012), pp.987-990.

[24] H.E. Evan: Inter. Mater. Rev. Vol. 40 (1995), pp.1-40.

[25] J. Mougin, T. Le Bihan and G. Lucazeau:J. ofPhy. Che. Solids Vol. 62 (2001), pp.553-563.

[26] S. Chandra-ambhorn, Y. Wouters, L. Antoni, F. Toscan and A. Galerie: J. of Power Sources Vol. 171(2007), pp.688-695.

DOI: 10.1016/j.jpowsour.2007.06.058
