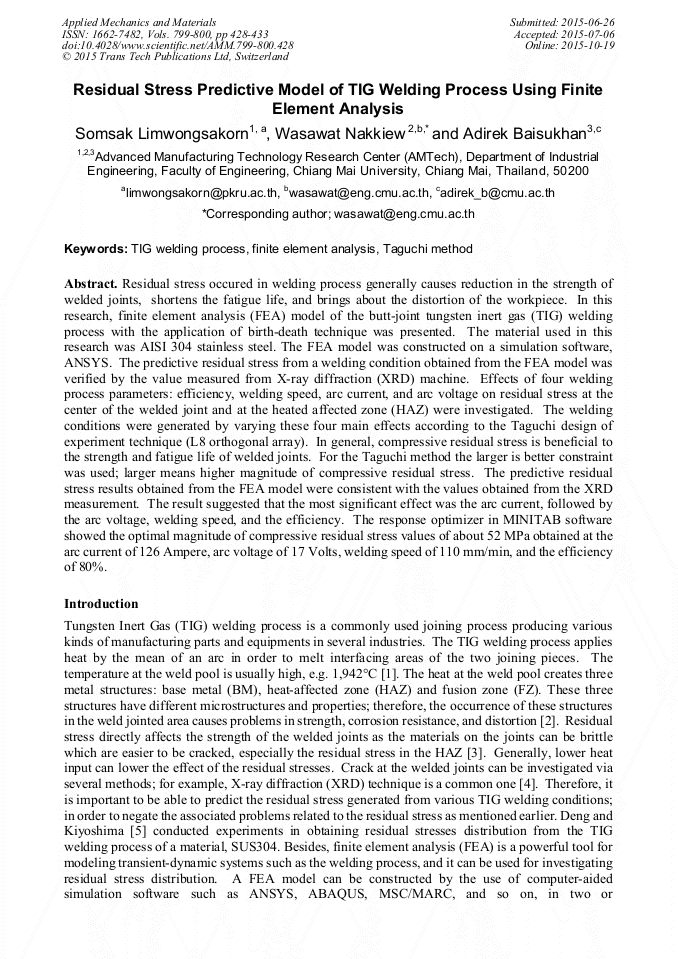

Residual Stress Predictive Model of TIG Welding Process Using Finite Element Analysis

Abstract:

Residual stress occured in welding process generally causes reduction in the strength of welded joints, shortens the fatigue life, and brings about the distortion of the workpiece. In this research, finite element analysis (FEA) model of the butt-joint tungsten inert gas (TIG) welding process with the application of birth-death technique was presented. The material used in this research was AISI 304 stainless steel. The FEA model was constructed on a simulation software, ANSYS. The predictive residual stress from a welding condition obtained from the FEA model was verified by the value measured from X-ray diffraction (XRD) machine. Effects of four welding process parameters: efficiency, welding speed, arc current, and arc voltage on residual stress at the center of the welded joint and at the heated affected zone (HAZ) were investigated. The welding conditions were generated by varying these four main effects according to the Taguchi design of experiment technique (L8 orthogonal array). In general, compressive residual stress is beneficial to the strength and fatigue life of welded joints. For the Taguchi method the larger is better constraint was used; larger means higher magnitude of compressive residual stress. The predictive residual stress results obtained from the FEA model were consistent with the values obtained from the XRD measurement. The result suggested that the most significant effect was the arc current, followed by the arc voltage, welding speed, and the efficiency. The response optimizer in MINITAB software showed the optimal magnitude of compressive residual stress values of about 52 MPa obtained at the arc current of 126 Ampere, arc voltage of 17 Volts, welding speed of 110 mm/min, and the efficiency of 80%.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 428-433
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.428
• Online since: October 2015
• Authors: Somsak Limwongsakorn, Wasawat Nakkiew, Adirek Baisukhan
• Keywords: Finite Element Analysis, Taguchi Method, TIG Welding Process

References

[1] A. a. S. Kumar, S., Effect of welding parameters on mechanical properties and optimization of pulsed TIG welding of Al-Mg-Si alloy , Int J Adv Manuf Technol, vol. 42, no. 1-2, pp.118-125, 2009/05/01, (2009).

DOI: 10.1007/s00170-008-1572-8

[2] G.R. Mirshekari, E. Tavakoli and M. Atapour Microstructure and corrosion behavior of multipass gas tungsten arc welded 304L stainless steel, Materials & Design, vol. 55, no. 0, pp.905-911, 3/, (2014).

DOI: 10.1016/j.matdes.2013.10.064

[3] R. H. Leggatt, Residual stresses in welded structures, International Journal of Pressure Vessels and Piping, vol. 85, no. 3, pp.144-151, 3/, (2008).

DOI: 10.1016/j.ijpvp.2007.10.004

[4] L. Yajiang, J. Wang, M. Chen and X. Shen, Finite element analysis of residual stress in the welded zone of a high strength steel, Bull Mater Sci, vol. 27, no. 2, pp.127-132, 2004/04/01, (2004).

DOI: 10.1007/bf02708494

[5] D. Deng, and S. Kiyoshima, FEM prediction of welding residual stresses in a SUS304 girth-welded pipe with emphasis on stress distribution near weld start/end location, Computational Materials Science, vol. 50, no. 2, pp.612-621, 12/, (2010).

DOI: 10.1016/j.commatsci.2010.09.025

[6] D. Stamenkovic and I. Vasovic, Finite element analysis of residual stress in butt welding two similar plates, Scientific technical review, vol. 59, pp.57-60, 2009.K. C. Ganesh, M. Vasudevan, K. R. Balasubramanian, N. Chandrasekhar.

[7] A. Capriccioli and P. Frosi, Multipurpose ANSYS FE procedure for welding processes simulation, Fusion Engineering and Design, vol. 84, pp.546-553, 6/ (2009).

DOI: 10.1016/j.fusengdes.2009.01.039

[8] Jose Alfredo Fraymann, Sergio Tonini Button, Jose Alfredo Fraymann and Sergio Tonini Button. Analyses of residual stresses on stamped valves by X-ray diffraction and finite elements method, " Journal of Materials Processing Technology, vol. 179, no. 1–3, pp.30-35, 10/20/, (2006).

DOI: 10.1016/j.jmatprotec.2006.03.072

[9] J. Pasupathy and V. Ravisankar PARAMETRIC OPTIMIZATION OF TIG WELDING PARAMETERS USING TAGUCHI METHOD FOR DISSIMILAR JOINT (Low carbon steel with AA1050), International Journal of Scientific & Engineering Research, vol. 4, no. 11, pp.25-28, (2013).

DOI: 10.1533/978-1-78242-164-1.493

[10] X. Ni, Z. Zhou, X. Wen, and L. Li The use of Taguchi method to optimize the laser welding of sealing neuro-stimulator, Optics and Lasers in Engineering, vol. 49, no. 3, pp.297-304, 3/, (2011).

DOI: 10.1016/j.optlaseng.2010.11.005

[11] B. Brickstad, and B. L. Josefson, A parametric study of residual stresses in multi-pass butt-welded stainless steel pipes, International Journal of Pressure Vessels and Piping, vol. 75, no. 1, pp.11-25, 1/, (1998).

DOI: 10.1016/s0308-0161(97)00117-8

[12] Q. Shi, A. Lu, H. Zhao, and A. Wu Development and application of the adaptive mesh technique in the three-dimensional numerical simulation of the welding process, Journal of Materials Processing Technology, vol. 121, no. 2–3, pp.167-172, 2/28/, (2002).

DOI: 10.1016/s0924-0136(01)00830-5

[13] Y. S. Tarng, W.H. Yang, Optimisation of the weld bead geometry in gas tungsten arc welding by the Taguchi method, The International Journal of advanced manufacturing technology, vol. 14, no. 0268-3768, pp.549-554, (1998).

DOI: 10.1007/bf01301698

[14] S. C. Juang, and Y. S. Tarng, Process parameter selection for optimizing the weld pool geometry in the tungsten inert gas welding of stainless steel, Journal of Materials Processing Technology, vol. 122, no. 1, pp.33-37, 3/5/, (2002).

DOI: 10.1016/s0924-0136(02)00021-3
