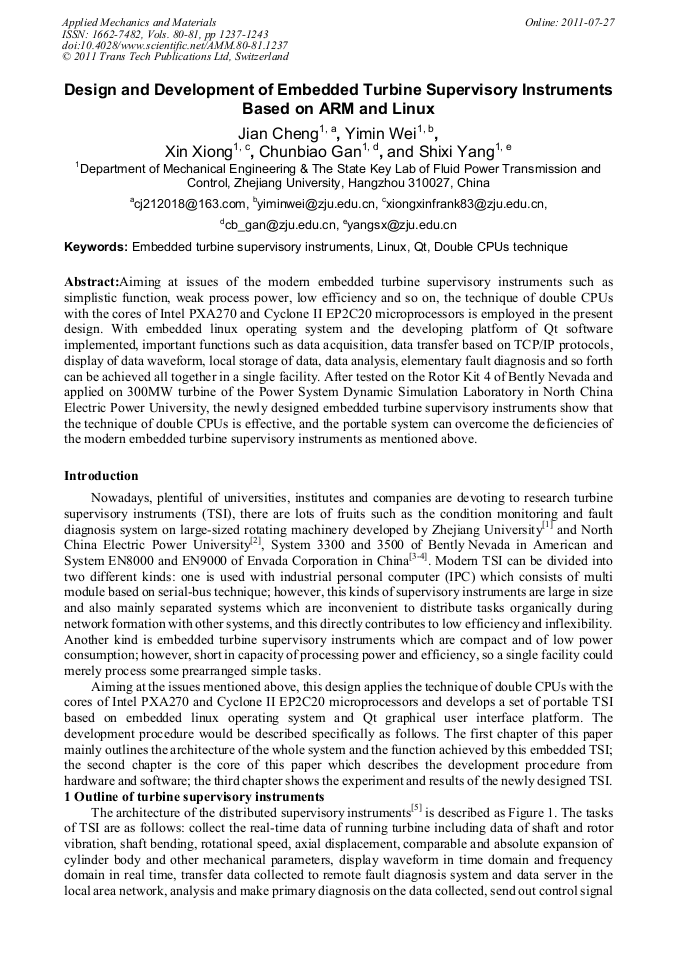

Design and Development of Embedded Turbine Supervisory Instruments Based on ARM and Linux

Abstract:

Aiming at issues of the modern embedded turbine supervisory instruments such as simplistic function, weak process power, low efficiency and so on, the technique of double CPUs with the cores of Intel PXA270 and Cyclone II EP2C20 microprocessors is employed in the present design. With embedded linux operating system and the developing platform of Qt software implemented, important functions such as data acquisition, data transfer based on TCP/IP protocols, display of data waveform, local storage of data, data analysis, elementary fault diagnosis and so forth can be achieved all together in a single facility. After tested on the Rotor Kit 4 of Bently Nevada and applied on 300MW turbine of the Power System Dynamic Simulation Laboratory in North China Electric Power University, the newly designed embedded turbine supervisory instruments show that the technique of double CPUs is effective, and the portable system can overcome the deficiencies of the modern embedded turbine supervisory instruments as mentioned above.

• Periodical: Applied Mechanics and Materials (Volumes 80-81)
• Pages: 1237-1243
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.80-81.1237
• Online since: July 2011
• Authors: Jian Cheng, Yi Min Wei, Xin Xiong, Chun Biao Gan, Shi Xi Yang
• Keywords: Double CPUs Technique, Embedded Turbine Supervisory Instruments, Linux, Qt

References

[1] Lou Jianzhong. Research on vibration monitoring system for large rotating machine [D]. Hangzhou: Zhejiang University, (2005).

[2] Li Yonggang, Li Heming, Zhao Hua. Research on monitoring and fault diagnostic system of turbine-generator [C]/ Proceedings of the International Symposium on Electrical Insulating Materials. Asian: Institute of Electrical Engineers of Japan, 2001, 717-720.

DOI: 10.1109/iseim.2001.973778

[3] Nord Mark, Broussard Bill. Online vibration monitoring system offers foresight on turbine condition [J]. U.S. A: Pulp and Paper. 2005, 79 (1): 46-49.

[4] Yan Keguo, Wei Keyan, Li Zhi. Condition monitoring and fault diagnosis system for large rotating machine [M]. Beijing: Beijing Electric Power Research Institute, (1994).

[5] George Coulouris, Jean Dollimore, Tim Kindberg. Distributed Systems: Concepts and Design, Fourth Edition [M]. England: Pearson Education Limited. (2005).

[6] Ma Honglian, Liu Hongri, Ding Nan. Design and development of multi-functional and portable system for travel guiding. Chinese Journal of Scientific Instrument, 2007, 28 (4): 150-152.

[7] Liu Wenfeng, Li Chengyuan, Li Shanping. Research on embedded linux operating system [J]. Journal of Zhejiang University (Engineering Science), 2004，38(4): 447-452.

[8] W. Richard Stevens. TCP/IP Illustrated Volume 1: The Protocols [M]. U.S. A: Addison Wesley, (1994).

[9] Gary R. Wright, W. Richard Stevens. TCP/IP Illustrated Volume 2: The Implemen- tation [M]. U.S. A: Addison Wesley. (1995).

[10] W. Richard Stevens. TCP/IP Illustrated Volume 3: TCP for Transactions, HTTP, NNTP, and the UNIX Domain Protocols [M]. U.S. A: Addison Wesley. (1996).

DOI: 10.1109/mnet.1996.539855

[11] Peter Marwedel. Embedded System Design [M]. Netherlands: Springer, (1996).

[12] Jasmin Blanchette , Mark Summerfield. C++ GUI Programming with Qt 4, Second Edition [M]. England: Pearson Education Limited. (2008).
