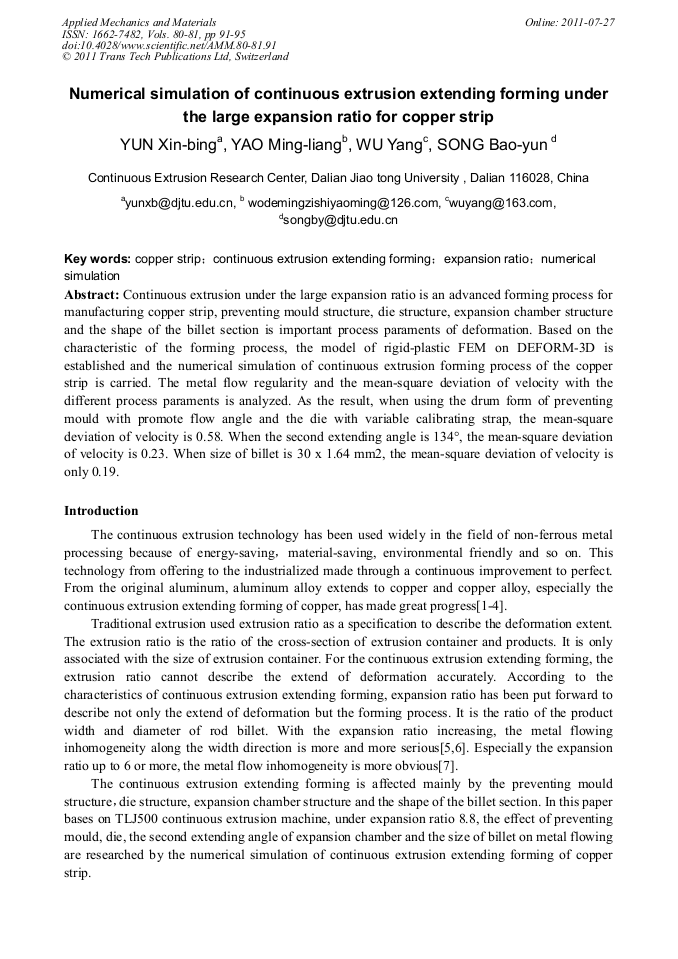

Numerical Simulation of Continuous Extrusion Extending Forming under the Large Expansion Ratio for Copper Strip

Abstract:

Continuous extrusion under the large expansion ratio is an advanced forming process for manufacturing copper strip, preventing mould structure, die structure, expansion chamber structure and the shape of the billet section is important process paraments of deformation. Based on the characteristic of the forming process, the model of rigid-plastic FEM on DEFORM-3D is established and the numerical simulation of continuous extrusion forming process of the copper strip is carried. The metal flow regularity and the mean-square deviation of velocity with the different process paraments is analyzed. As the result, when using the drum form of preventing mould with promote flow angle and the die with variable calibrating strap, the mean-square deviation of velocity is 0.58. When the second extending angle is 134°, the mean-square deviation of velocity is 0.23. When size of billet is 30 x 1.64 mm2, the mean-square deviation of velocity is only 0.19.

• Periodical: Applied Mechanics and Materials (Volumes 80-81)
• Pages: 91-95
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.80-81.91
• Online since: July 2011
• Authors: Xin Bing Yun, Ming Liang Yao, Yang Wu, Bao Yun Song
• Keywords: Continuous Extrusion Extending Forming, Copper Strip, Expansion Ratio, Numerical Simulation

References

[1] X. Chen, X. B. Yun, Y. Zhao, The effect of porthole die structure on continuous extrusion extending forming of copper, Journal of Plasticity Engineering. 2(2010) 68-72.

[2] Bing Li, B. Y Song, Li Chen, Numerical simulation on copper bus-bar under large extending ratio for continuous extrusion process, Journal of Plasticity Engineering. 3(2009) 111-115.

[3] A. S. Lyubanova, Optimization of the uniformity of a metal flow during continuous extrusion by the Conform method, Russian Metallurgy (Metally). 3(2010) 178-182.

DOI: 10.1134/s0036029510030067

[4] P.Y. Wu，S. S. Xie, H. Q. Li, Effect of extrusion wheel angular velocity on continuous extrusion forming process of copper concave bus bar, Trans. Nonferrous Met. Soc. China. 17(2007) 280-286.

DOI: 10.1016/s1003-6326(07)60085-5

[5] P.Y. Wu，S. S. Xie, Y. C. Wu, Numerical simulation of the continuous extrusion forming of big flakiness ratio copper flat wire under different spread outlets of shoes, Machining Science and Technology. 2(2008) 260-263.

[6] X. Chen, Research on continuous extrusion expansion forming flow regulation and mold optimization , Dalian Jiao tong University, Dalian, (2010).

[7] X.D. Luan, B.Y. Song, B. Li, Research on uneven defects of continuous extruded wide copper strip, Hot Working Technology. 3 (2010) 164-166.

[8] Y.Y. Niu, L. Chen, B.Y. Song, Simulation on continuous extrusion forming process of copper strip, Nonferrous Metals. 2(2006) 29-33.

[9] T. Manninen, P. Ramsay, A.S. Korhonen, Proceedings seventh ICTP, Japan, (2002): 439.

[10] L. L. Xie, B. Y. Song, 3D-FEM mathematical simulation of CONFORM extending-forming process for copper busbar, Forging & Stamping Technology. 3(2005) 72-75.

[11] Z.Z. Chen, Z. L. Lou, X. Y. Ruan, Finite volume simulation and mould op timization of aluminum p rofile extrusion, Journal of Materials Processing Technology. 190(2007) 382-386.

DOI: 10.1016/j.jmatprotec.2007.01.032

[12] G.Y. Lin, X. K. Chen, Optimization of die bearing for aluminum profile extrusion die, The Chinese Journal of Nonferrous Metals, 4(2006) 561-566.

[13] R. Zheng, T. R. Zhou, B. Z. Xu, Designing the Flow guided die of aluminum profile extrusion, Journal of Nanchang University(Engineering & Technology), 3(2004) 15-18.
