Study on Stress-Magnetic Effect around Hole of Q-235 Carbon Steel under Static Tension Conditions

Abstract:

For flat plate of Q-235 Carbon Steel whose thickness is 4, 5 and 6mm, with the small hole that diameter is 3, 5 and 7 mm in the center and the load of 9, 18 and 27 KN at the both ends, the magnetic signal on the surface of the plate under the state of static tension conditions was detected by using CMT5305 and TSC-1M-4 test instruments. It is found that the magnetic signal on the surface of the sample is interrelated with stress concentration around the hole and diameter of the hole, while independent to thickness and load of the plate.

You might also be interested in these eBooks

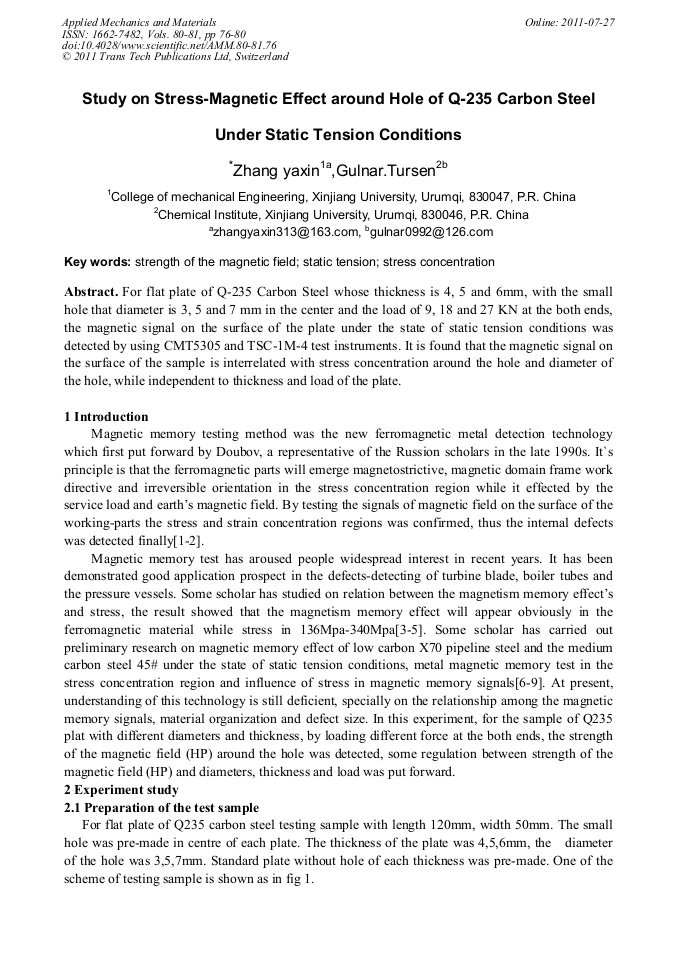

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 80-81)

Pages:

76-80

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.80-81.76

Citation:

Cite this paper

Online since:

July 2011

Authors:

Ya Xin Zhang, Tursen Gulnar

Keywords:

Static Tension, Strength of the Magnetic Field, Stress Concentration

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.L. Ren, J.M. Lin: Electromagnetism nondestructive inspection(science and technology press. China . 2008).

Google Scholar

[2] O. Heczko, A. Sozinov, K. Ullakko, IEEE Trans. Magn. 36 (2000) pp.32-66.

Google Scholar

[3] Barnes, R. and Atherton, D. L. Effect of bending stresses on magnetic flux leakage patterns, NDT & E Ztitern 261 (1993) pp.3-6.

DOI: 10.1016/0963-8695(93)90158-q

Google Scholar

[4] Barnes, R: Comparison of the effects of surface and uniform stresses on magnetic flux leakage signals (MSc Thesis, Queen's University , Kingston, 1993).

Google Scholar

[5] Atherton, D. L : Magnetic inspection is key to ensuring safe pipelines , (Oil Gus8732 (1989) pp.52-61).

Google Scholar

[6] W.M. Zhang, H.G. Liu, H.T. Sun: Magnetic memory effect of middle and low –carbon steel under static tension. (Beijing Technology University Press 2004. 24(7): 571-574).

Google Scholar

[7] L.H. Dong, B.S. XU, S.Y. Dong: Study on metal magnetic memory signals of low carbon steel under static tension test condition. (Material Engieneering. 2006).

Google Scholar

[8] D. Wang, S.Y. Dong, B.S. XU: Study on metal magnetic memory of stress concentration region. （Lapse Analyze and Prevent. China. 2007）.

Google Scholar

[9] J.L. Ren, D.S. Wang , S.K. Ren: The influence of state of stress in magnetic memory signals. (Aviation Press. China. 2007).

Google Scholar
