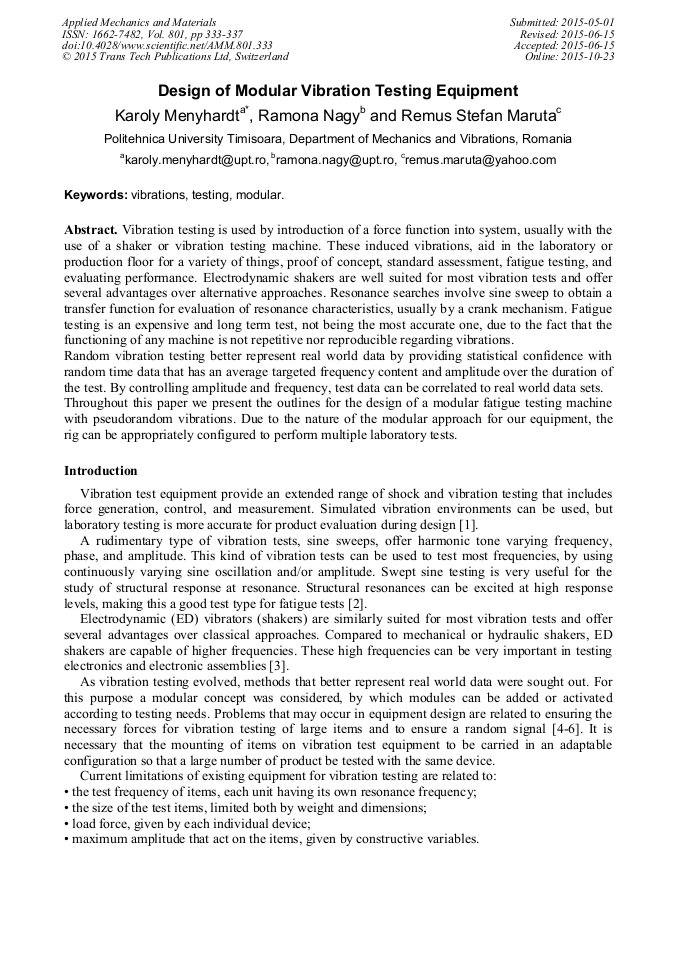

Design of Modular Vibration Testing Equipment

Abstract:

Vibration testing is used by introduction of a force function into system, usually with the use of a shaker or vibration testing machine. These induced vibrations, aid in the laboratory or production floor for a variety of things, proof of concept, standard assessment, fatigue testing, and evaluating performance. Electrodynamic shakers are well suited for most vibration tests and offer several advantages over alternative approaches. Resonance searches involve sine sweep to obtain a transfer function for evaluation of resonance characteristics, usually by a crank mechanism. Fatigue testing is an expensive and long term test, not being the most accurate one, due to the fact that the functioning of any machine is not repetitive nor reproducible regarding vibrations.Random vibration testing better represent real world data by providing statistical confidence with random time data that has an average targeted frequency content and amplitude over the duration of the test. By controlling amplitude and frequency, test data can be correlated to real world data sets.Throughout this paper we present the outlines for the design of a modular fatigue testing machine with pseudorandom vibrations. Due to the nature of the modular approach for our equipment, the rig can be appropriately configured to perform multiple laboratory tests.

• Periodical: Applied Mechanics and Materials (Volume 801)
• Pages: 333-337
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.801.333
• Online since: October 2015
• Authors: Karoly Menyhardt*, Ramona Nagy, Remus Stefan Maruta
• Keywords: Modular, Testing, Vibrations

References

[1] Bernad, C., et al., Transport Vibration Laboratory Simulation: On the Necessity of Multiaxis Testing. Packaging Technology and Science, 24 (2011) 1-14.

DOI: 10.1002/pts.913

[2] Cesnik, M. and J. Slavic, Vibrational Fatigue and Structural Dynamics for Harmonic and Random Loads. Strojniski Vestnik-Journal of Mechanical Engineering, 60 (2014) 339-348.

DOI: 10.5545/sv-jme.2013.1831

[3] Data Physics - http: /www. dataphysics. com/applications/vibration-testing-and-shaker-testing-shock-and-vibration. html, last visited 04-04-(2015).

[4] Aykan, M. and M. Celik, Vibration fatigue analysis and multi-axial effect in testing of aerospace structures. Mechanical Systems and Signal Processing, 23 (2009) 897-907.

DOI: 10.1016/j.ymssp.2008.08.006

[5] Baussaron, J., B. Fouchez, and T. Yalamas, Probabilistic Random Vibration Fatigue. Fatigue Design 2013, International Conference Proceedings, 66 (2013) 522-529.

[6] De Lima, A.M.G., et al., Fatigue reliability analysis of viscoelastic structures subjected to random loads. Mechanical Systems and Signal Processing, 43 (2014) 305-318.

DOI: 10.1016/j.ymssp.2013.10.004

[7] Nagy R., Menyhardt K. and Maruta R.S., Pseudorandom vibration test machine, 24th International Conference Noise and Vibration, Nis (2014) 147-150.
