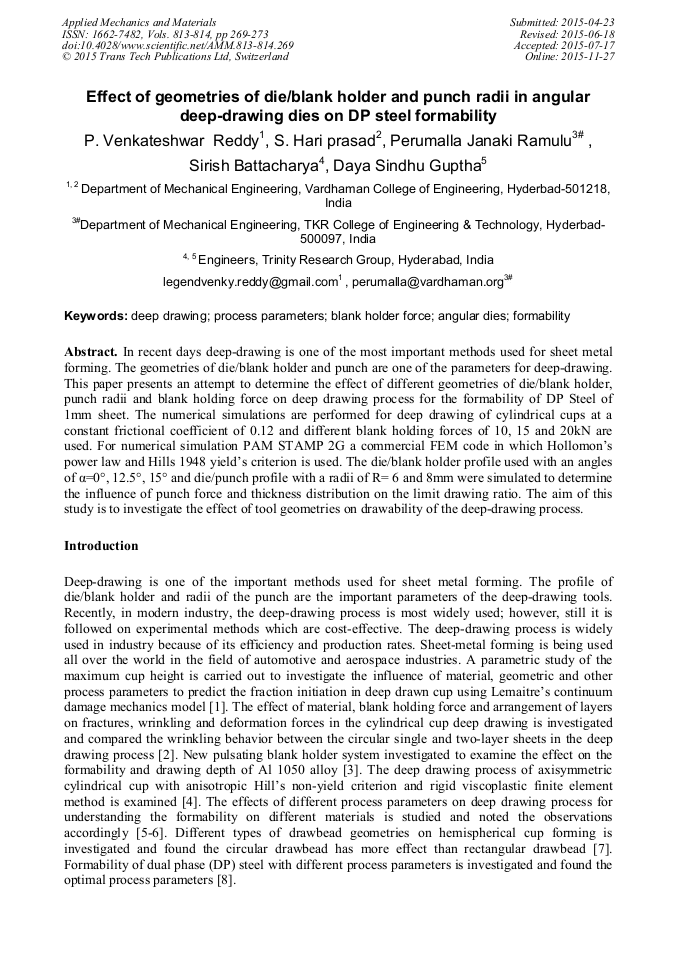

Effect of Geometries of Die/Blank Holder and Punch Radii in Angular Deep-Drawing Dies on DP Steel Formability

Abstract:

In recent days deep-drawing is one of the most important methods used for sheet metal forming. The geometries of die/blank holder and punch are one of the parameters for deep-drawing. This paper presents an attempt to determine the effect of different geometries of die/blank holder, punch radii and blank holding force on deep drawing process for the formability of DP Steel of 1mm sheet. The numerical simulations are performed for deep drawing of cylindrical cups at a constant frictional coefficient of 0.12 and different blank holding forces of 10, 15 and 20kN are used. For numerical simulation PAM STAMP 2G a commercial FEM code in which Hollomon’s power law and Hills 1948 yield’s criterion is used. The die/blank holder profile used with an angles of α=0°, 12.5°, 15° and die/punch profile with a radii of R= 6 and 8mm were simulated to determine the influence of punch force and thickness distribution on the limit drawing ratio. The aim of this study is to investigate the effect of tool geometries on drawability of the deep-drawing process.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 269-273
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.269
• Online since: November 2015
• Authors: P. Venkateshwar Reddy, S. Hari Prasad, Perumalla Janaki Ramulu*, Sirish Battacharya, Daya Sindhu Guptha
• Keywords: Angular Dies, Blank Holder Force, Deep Drawing, Formability, Process Parameters

References

[1] R. K. Saxena, P. M. Dixit, Numerical analysis of damage for prediction of fracture initiation in deep drawing, Fin. Ele. in Anal. and Desi. 47 (2011). 1104–1117.

DOI: 10.1016/j.finel.2011.04.003

[2] M. R. Morovvati, A. Fatemi, M. Sadighi, Experimental and finite element investigation on wrinkling of circular single layer and two-layer sheet metals in deep drawing process, Int. J. Adv. Manuf. Technol. 54 (2011), 113–121.

DOI: 10.1007/s00170-010-2931-9

[3] A. Mostafapur, S. Ahangar, R. Dadkhah, Numerical and experimental investigation of pulsating blankholder effect on drawing of cylindrical part of aluminum alloy in deep drawing process, Int. J. Adv. Manuf. Technol. 69 (2013), 1113–1121.

DOI: 10.1007/s00170-013-5115-6

[4] N. Arab, Experimental and CylindricalSimulation Analysis of Deep Cylindrical Simulation Analysis of Deep Cylindrical Cup Process, Merit Res. J. of Petro., Geo. and Minimg. 1(1) (2013), 001-008.

[5] U. Pranavi, P. Venkateshwar Reddy, Perumalla Janaki Ramulu (2014).

[6] U. Pranavi, P. Venkateshwar Reddy, K. Lavanya, P. Janaki Ramulu, Effect of Mechanical Properties on Deep Drawing Formability Prediction, Int. J. of Curr. Engg and Techl. 3, (2014), 302-305.

DOI: 10.14741/ijcet/spl.2.2014.55

[7] P. Venkateshwar Reddy, Perumalla Janaki Ramulu, A. Lavanya, U. Pranavi, N.V. Narasimha Charyulu, Effect of circular and rectangular draw beads on hemispherical cup forming, Comparing with classical tool design using finite element analysis, Conference on Sheet Metal Forming Research Association 2014 (SMFRA-2014), 51-53.

[8] P. Venkateshwar Reddy, A. Lavanya, S. Hari Prasad, P. Srinivasa Rao, P. Janaki Ramulu,  Prediction of forming behavior of dual phase (DP) steel during deep drawing process,  National conference of Andhra Pradesh Academy of Sciences, 2014, 39.

[9] S.K. Panda, J. Li, V.H. Baltazar Hernandez, Y. Zhou, F. Goodwin, Effect of weld location, orientation, and strain path on forming behavior of AHSS tailor welded blanks, J. Eng. Mater. Technol. (ASME trans), 132 (2010), 041003-1.

DOI: 10.1115/1.4001965
