Experimental and Numerical Study of Multi Hole Extrusion Process

Abstract:

The main objective of the present work is the study the experimental and numerical study of multi hole extrusion process for making circular rods. The pure lead is used as extrude material for extrusion. The die consists of 5 holes with 5mm diameter. For prediction work, process has simulated using a Finite Element Method (FEM) code metal forming software DEFORM-3D®. All the experimental work and simulation are done at ambient conditions. The maximum load and maximum ram displacement are calculated for circular rods during the experimental work. From the results, it is noted that the behavior of load vs displacement is almost same for both experimental and numerical study of multi hole extrusion process. This study becomes illustration the behavior of the other tough materials by which one can understand the extrusion behavior of nonferrous materials.

You might also be interested in these eBooks

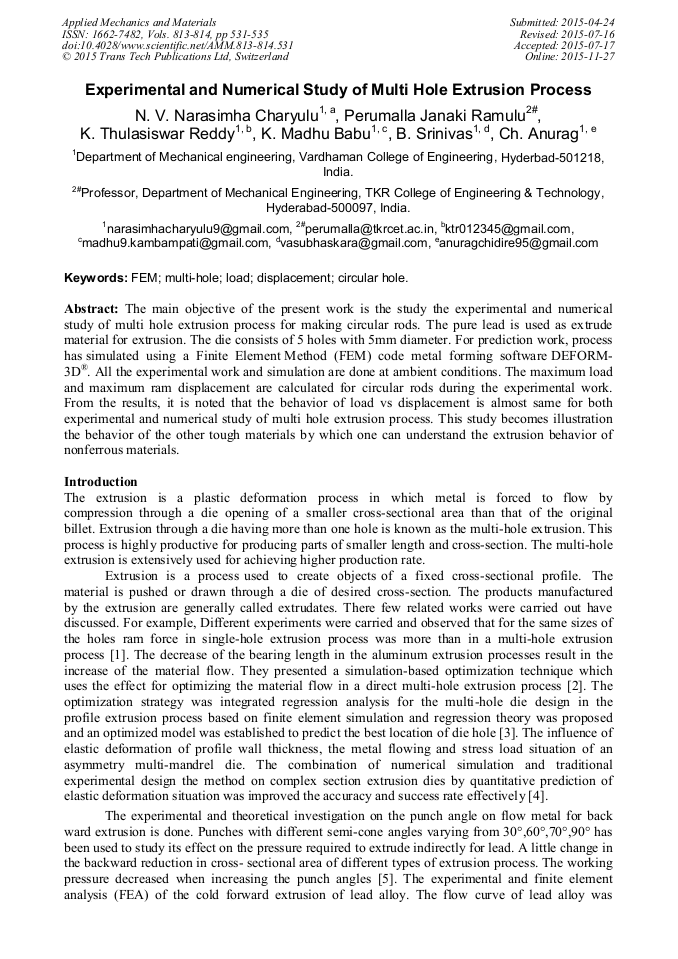

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 813-814)

Pages:

531-535

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.813-814.531

Citation:

Cite this paper

Online since:

November 2015

Authors:

N.V. Narasimha Charyulu, Perumalla Janaki Ramulu*, K. Thulasiswar Reddy, K. Madhu Babu, B. Srinivas, Ch. Anurag

Keywords:

Circular Hole, Displacement, FEM, Load, Multi-Hole

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. K. Sinha, S. Deb, U.S. Dixit, Design of a multi-hole extrusion process, Mat. and Desi. 30 (2008) 330-334.

DOI: 10.1016/j.matdes.2008.04.062

Google Scholar

[2] T. Kloppenborg, A. Brosius, E. A. Tekkaya. Numerical Material Flow Optimization of a Multi-Hole Extrusion Process, Adv. Mat. Res. 826 (2009), 83-86.

DOI: 10.4028/www.scientific.net/amr.83-86.826

Google Scholar

[3] H. Gao, Z. L. Chen, X. Zhang, Three Dimensional Parametric Design of the Die Channel for Plastic Extrusion Based on Solid Works, Adv. Mat. Rese. 1569 (2011), 201-203.

DOI: 10.4028/www.scientific.net/amr.201-203.1569

Google Scholar

[4] J. Y. Pan, Z. Y. Zhou, S. B. Dong, Elastic Deformation Predicting Design and Numerical Simulation for an Asymmetry Multi-Mandrel Aluminum Extrusion Die, Adv. Mat. Rese. 1439 (2011), 418-420.

DOI: 10.4028/www.scientific.net/amr.418-420.1439

Google Scholar

[5] E. M. Mahdi, Theoretical and Experimental Investigation of the Effect of the Punch Angle on the Backward Extrusion Process, J. of Babylon Univ. /Engg. Scie. 20 (2012), 1136-1150.

Google Scholar

[6] P. Mariana, D. Frunza, A. Neag, Experimental And Numerical Aspects Regarding Lead Alloy Plastic Deformation, Rev. Roum. Sci. Tech. − Méc. Appl, 57 (2012), 71-83.

Google Scholar

[7] D. N. Huang, Y. Ning, F. L. Shao, The Metal Flowing Behaviors and Die Bearing Band Optimization of a Large Al-Alloy Extrusion Profile, Materials Science Forum, 749 (2013), 268-273.

DOI: 10.4028/www.scientific.net/msf.749.268

Google Scholar
