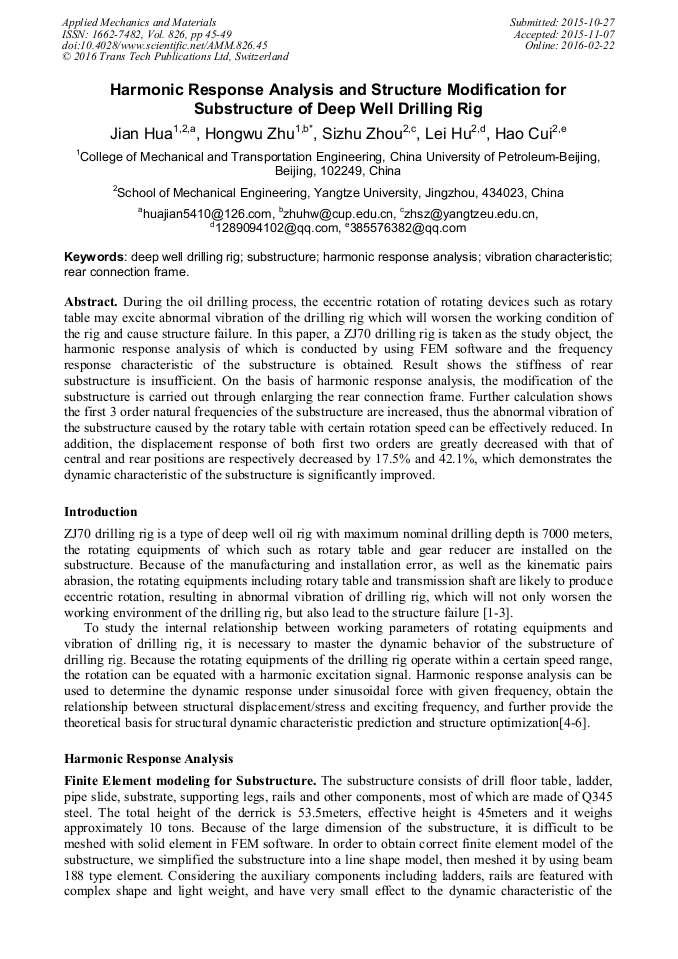

Harmonic Response Analysis and Structure Modification for Substructure of Deep Well Drilling Rig

Abstract:

During the oil drilling process, the eccentric rotation of rotating devices such as rotary table may excite abnormal vibration of the drilling rig which will worsen the working condition of the rig and cause structure failure. In this paper, a ZJ70 drilling rig is taken as the study object, the harmonic response analysis of which is conducted by using FEM software and the frequency response characteristic of the substructure is obtained. Result shows the stiffness of rear substructure is insufficient. On the basis of harmonic response analysis, the modification of the substructure is carried out through enlarging the rear connection frame. Further calculation shows the first 3 order natural frequencies of the substructure are increased, thus the abnormal vibration of the substructure caused by the rotary table with certain rotation speed can be effectively reduced. In addition, the displacement response of both first two orders are greatly decreased with that of central and rear positions are respectively decreased by 17.5% and 42.1%, which demonstrates the dynamic characteristic of the substructure is significantly improved.

• Periodical: Applied Mechanics and Materials (Volume 826)
• Pages: 45-49
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.826.45
• Online since: February 2016
• Authors: Jian Hua, Hong Wu Zhu*, Si Zhu Zhou, Lei Hu, Hao Cui
• Keywords: Deep Well Drilling Rig, Harmonic Response Analysis, Rear Connection Frame, Substructure, Vibration Characteristic

References

[1] Hu Jun, Tang You-gang, Li Shi-xi. Vibration test and assessment for an ocean drilling rig derrick: Taking the ZJ50/3150DB drilling rig as an example, J. Petroleum Exploration and Development. 40(2013)117-120.

DOI: 10.1016/s1876-3804(13)60014-2

[2] Yang Chao, Fan Shi-juan. Vibration Analysis of a Rig Substructure, J. Journal of Vibration, Measurement & Diagnosis. 23(2003)131-133.

[3] Wang Yin, Zhao Zhen-jun, Ning Jian-guo. Modal Analysis of Drilling Rig under Ambient Excitation, J. Journal of Southwest Petroleum Institute. 27(2005)66-68.

[4] Fu Chang-hu, Liu Hong-guang, Lu Seng-lin. Finite Element Modal and Harmonic Analysis of Bus Body, J. Journal of ChongQing JiaoTong University(Natural Science). 32(2013)1267-1269.

[5] Liu Kuo, Liu Chun-shi, Lin Jian-feng. Harmonic Response Analysis for Bed and Column of VMC0540d Machine Tool, J. Machinery Design& Manufacture. 12 (2011)162-164.

[6] Sun Wei-guang, Tian Ai-qin, Chen Wen-bin. Harmonic Response Analysis of Main Transformer Air Duct, J. Journal of Qingdao University of Science and Technology (Natural Science Edition). 32 (2011)407-410.

[7] Chen Xin-long, Zhou Si-zhu, Hua Jian. Finite Element Static Analysis of Deep-well Rig Derrick and Substructure System, J. China Petroleum Machinery. 41(2013)19-21.
