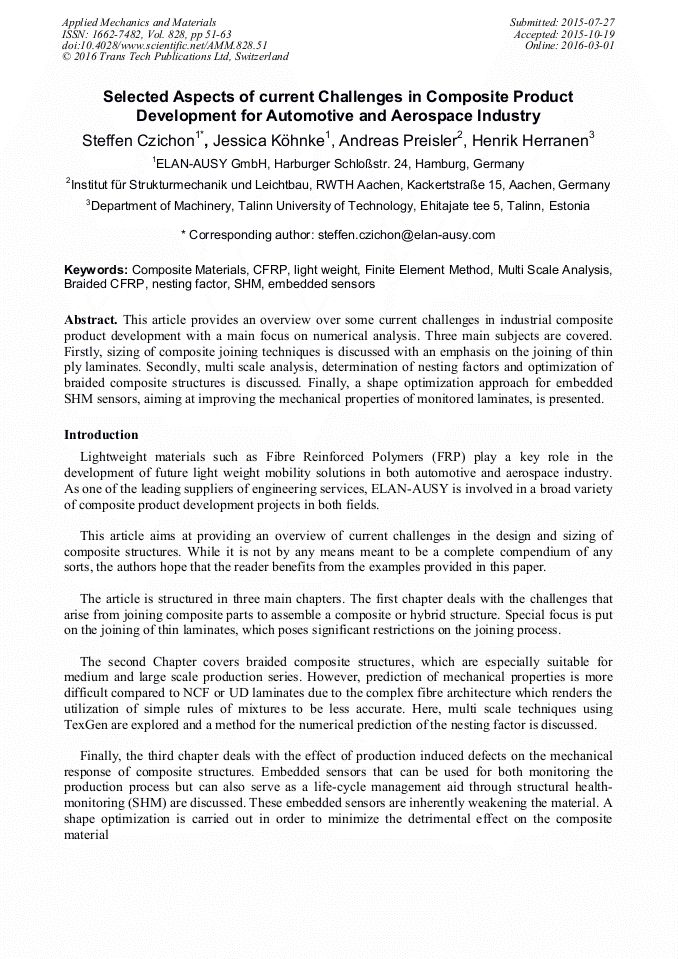

Selected Aspects of Current Challenges in Composite Product Development for Automotive and Aerospace Industry

Abstract:

This article provides an overview over some current challenges in industrial composite product development with a main focus on numerical analysis. Three main subjects are covered. Firstly, sizing of composite joining techniques is discussed with an emphasis on the joining of thin ply laminates. Secondly, multi scale analysis, determination of nesting factors and optimization of braided composite structures is discussed. Finally, a shape optimization approach for embedded SHM sensors, aiming at improving the mechanical properties of monitored laminates, is presented.

• Periodical: Applied Mechanics and Materials (Volume 828)
• Pages: 51-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.828.51
• Online since: March 2016
• Authors: Steffen Czichon*, Jessica Köhnke, Andreas Preisler, Henrik Herranen
• Keywords: Braided CFRP, CFRP, Composite Materials, Embedded Sensors, Finite Element Method, Light Weight, Multi Scale Analysis, Nesting Factor, SHM

References

[1] Whitworth, H.A., Aluko, O., Tomlinson, N.A. (2008). Application of the point stress criterion to the failure of composite pinned joints. Engineering Fracture Mechanics, 75, 1829-1839.

DOI: 10.1016/j.engfracmech.2006.12.003

[2] Chun, H., Shin, J. and Daniel, I.M. (2001). Effects of material and geometric non-linearities on the tensile and compressive behavior of composite materials with fiberwaviness. Composite Science and Technology, 61(1), 125-134.

DOI: 10.1016/s0266-3538(00)00201-3

[3] Lemanski, S. and Sutcliffe, M. (2012). Compressive failure of finite size unidirectional composite laminates with a region of fibre waviness. Composites Part A: Applied Sci-ence and Manufacturing, 43(3), 435-444.

DOI: 10.1016/j.compositesa.2011.11.007

[4] Herranen, H., Saar, T., Gordon, R., Pohlak, M. and Lend, H (2013). Durability Performance Of Semiconductor Strain Gauges in GFRP Laminate Proceedings of 6th ECCOMAS Conference on Smart Structures and Materials SMART2013, Torino, Italy.

DOI: 10.4028/www.scientific.net/amr.905.244

[5] Czichon, S., Jansen, E. and Rolfes, R. (2012).

[6] WiseTex Software, https: /www. mtm. kuleuven. be/Onderzoek/Composites/software/wisetex, accessed 24. July (2015).

[7] TexGen Software, http: /texgen. sourceforge. net/, accessed 24. July (2015).

[8] Birkefeld, K. (2013). Virtuelle Optimierung von Geflecht-Preforms unter Berücksichtigung von Fertigungsaspekten. Dissertation. University of Stuttgart, Germany.

[9] VDI-Richtlinie: VDI 2014 Blatt 3 Entwicklung von Bauteilen aus Faser-Kunststoff-Verbund – Berechnungen.

[10] SciPy. Open Source Software package. http: /scipy. org/, accessed 24. July (2015).
