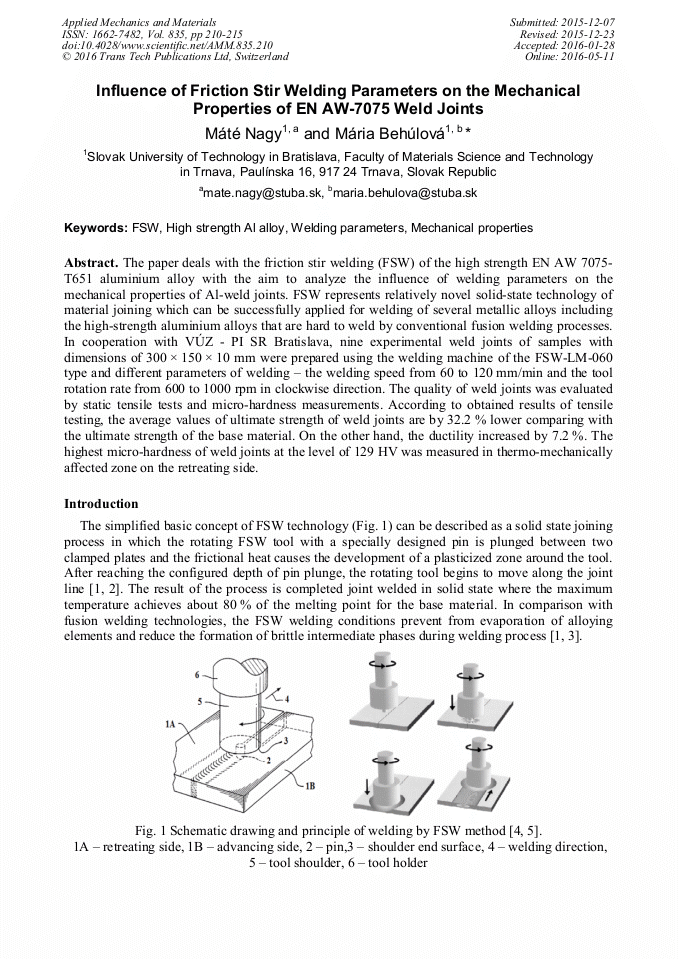

Influence of Friction Stir Welding Parameters on the Mechanical Properties of EN AW-7075 Weld Joints

Abstract:

The paper deals with the friction stir welding (FSW) of the high strength EN AW 7075-T651 aluminium alloy with the aim to analyze the influence of welding parameters on the mechanical properties of Al-weld joints. FSW represents relatively novel solid-state technology of material joining which can be successfully applied for welding of several metallic alloys including the high-strength aluminium alloys that are hard to weld by conventional fusion welding processes. In cooperation with VÚZ - PI SR Bratislava, nine experimental weld joints of samples with dimensions of 300 × 150 × 10 mm were prepared using the welding machine of the FSW-LM-060 type and different parameters of welding – the welding speed from 60 to 120 mm/min and the tool rotation rate from 600 to 1000 rpm in clockwise direction. The quality of weld joints was evaluated by static tensile tests and micro-hardness measurements. According to obtained results of tensile testing, the average values of ultimate strength of weld joints are by 32.2 % lower comparing with the ultimate strength of the base material. On the other hand, the ductility increased by 7.2 %. The highest micro-hardness of weld joints at the level of 129 HV was measured in thermo-mechanically affected zone on the retreating side.

• Periodical: Applied Mechanics and Materials (Volume 835)
• Pages: 210-215
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.835.210
• Online since: May 2016
• Authors: Máté Nagy, Mária Behúlová*
• Keywords: FSW, High Strength Al Alloy, Mechanical Property, Welding Parameters

References

[1] R.S. Mishraand W.M. Murray, Friction stir welding and processing, ASM International, Materials Park, Ohio 44073-0002, (2007).

[2] R. Nandan, T. DebRoy and H.K.D.H. Bhadeshia, Recent Advantages in Friction Stir Welding – Process, Weldment Structure and Properties, Prog. Mater. Sci. 53 (2008) 980–1023.

DOI: 10.1016/j.pmatsci.2008.05.001

[3] F. Zhi-Hong, H. Di-Qiu and W. Hong, Friction stir welding of aluminium alloys. J. Wuhan University of Technology-Mater. Sci. Ed. 19 (2004) 61-64.

DOI: 10.1007/bf02838366

[4] O.T. Midling, E.J. Morley and A. Sandvik, U.S. Patent 5, 813, 592 A (1996).

[5] I.M. Norris, W.M. Thomas, J. Martin and D.J. Staines, Friction stir welding – process variants and recent industrial developments, 10th International Aachen Welding Conference, Welding and Joining, Key Technologies for the Future (2007).

[6] ASM International Handbook Committee. ASM Handbook, Volume 02 - Properties and Selection: Nonferrous Alloys and Special-Purpose Materials, ASM International (1990).

DOI: 10.31399/asm.hb.v02.9781627081627

[7] G. İpekoğlu, S. Erim and G. Çam, Effects of temper condition and post weld heat treatment on the microstructure and mechanical properties of friction stir butt-welded AA 7075 Al alloy plates, Int. J. Adv. Manuf. Tech. 70 (2014) 201-213.

DOI: 10.1007/s00170-013-5255-8

[8] R. Cobden and A. Banbury, Aluminium: Physical Properties, Characteristics and Alloys, TALAT Lecture 1501 (1994).

[9] Annex No. 1 to the Contract No. FSWE-SK-20110412 – Specification of Commodity. (2011).
