Influence of Alloying Elements in ZnAl5 Based Alloys on Melting Temperature, Tensile Strength and Vickers Hardness

Abstract:

The aim of work consist in the investigation of the influence of alloying elements in ZnAl5 alloy on thermal and mechanical properties. The ZnAl5Cu (1-3), ZnAl5Mg (1-3), ZnAl5Ag (1-5) and ZnAl5In1(Ga1) solder alloys were used experiments. Solders were assessed by DSC analysis and by measuring tensile strength and Vickers hardness. It was found out that by adding of alloying elements, the melting temperature is decreasing. The opposite was observed in the case of ZnAl5Mg (1-3) alloys. By adding of In or Ga to ZnAl5, tensile strength and Vickers hardness are decreasing. Addition of Ag (1-5) resulted in increasing of tensile strength and Vickers hardness. In case of ZnAl5Cu (1-3) and ZnAl5Mg (1-3) solder, decreasing of tensile strength and increasing of Vickers hardness was observed.

You might also be interested in these eBooks

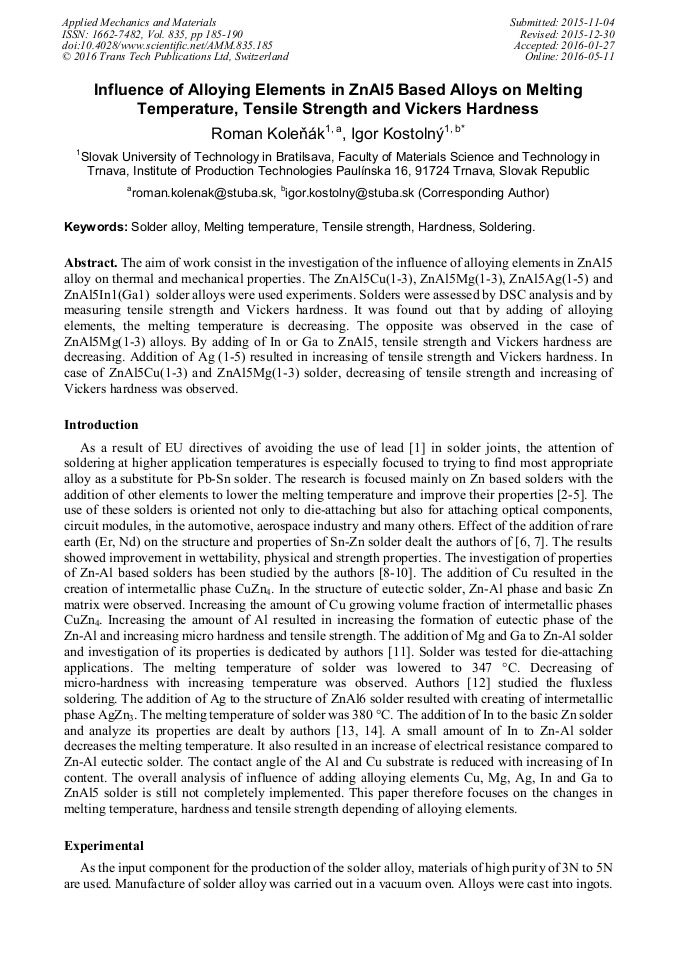

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 835)

Pages:

185-190

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.835.185

Citation:

Cite this paper

Online since:

May 2016

Authors:

Roman Koleňák, Igor Kostolný*

Keywords:

Hardness, Melting Temperature, Solder Alloy, Soldering, Tensile Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A. Kroupa, D. Andersson and N. Hoo, Current Problems and Possible Solutions in High-Temperature Lead-Free Soldering, J. Mater. Eng. Perform. 21(5) (2012) 629-637.

DOI: 10.1007/s11665-012-0125-3

Google Scholar

[2] A. Haque, B.H. Lim, A.S.M.A. Haseeb and H.H. Masjuki, Die attach properties of Zn-Al-Mg-Ga based high-temperature lead-free solder on Cu lead-frame, J. Mater. Sci.: Mater. Electron. 23 (2012) 115-123.

DOI: 10.1007/s10854-011-0511-x

Google Scholar

[3] Y. Takaku, L. Felicia and I. Ohnuma, Interfacial Reaction between Cu Substrates and Zn-Al Base High-Temperature Pb-Free Solders, J. Electron. Mater. 37(3) (2008) 314-323.

DOI: 10.1007/s11664-007-0344-9

Google Scholar

[4] S. Baie and R. Mahmudi, Microstructure and creep characteristics of Zn-3Cu-xAl ultra high-temperature lead-free solders, Mater. Design, 39 (2012) 397-403.

DOI: 10.1016/j.matdes.2012.03.005

Google Scholar

[5] G. Zeng, S. Mcdonald and K. Nogita, Development of high-temperature solders: Review, Microelectron. Reliab. 52 (2012) 1306-1322.

DOI: 10.1016/j.microrel.2012.02.018

Google Scholar

[6] L. Zhang, S. Xue, L. Gao, G. Zeng, Z. Sheng, Y. Chen and S. Yu, Effects of rare earths on properties and microstructures of lead-free solder alloys, J. Mater. Sci.: Mater. Electron. 20 (2009) 685-694.

DOI: 10.1007/s10854-009-9895-2

Google Scholar

[7] S. Wang, H. Zhou and Y. Kang, The influence of rare earth elements on microstructure and properties of 6061 aluminum alloy vacuum-brazed joints, J. Alloys Compd. 352 (2003) 79-83.

DOI: 10.1016/s0925-8388(02)01117-9

Google Scholar

[8] R. Mahmudi and S. Alibabaie, Elevated-temperature shear strength and hardness of Zn-3Cu-xAl ultra-high-temperature lead free solders, Mater. Sci. Eng. A, 559 (2013) 421-426.

DOI: 10.1016/j.msea.2012.08.121

Google Scholar

[9] Y. Xiao, H. Ji, M. Li and J. Kim, Ultrasound-assisted brazing of Cu/Al dissimilar metals using Zn-3Al filler metal, Mater. Des. 52 (2013) 740-747.

DOI: 10.1016/j.matdes.2013.06.016

Google Scholar

[10] S. Kim, K. Kim, S. Kim, C.H. Kang and K. Suganuma, Characteristics of Zn-Al-Cu Alloys for High Temperature Solder Application, Mater. T. 49 (2008) 1531-1536.

DOI: 10.2320/matertrans.mf200809

Google Scholar

[11] T. Shimizu, H. Ishikawa, I. Ohnuma and K. Ishida, Zn-Al-Mg-Ga Alloys as Pb-Free Solder for Die-Attaching Use, J. Electron. Mater. 28(11) (1999) 1172-1175.

DOI: 10.1007/s11664-999-0153-4

Google Scholar

[12] R. Kolenak, I. Kostolny and R. Cicka, Research of Fluxless Soldering of High-Purity Aluminium with Solders Type Zn-Al. Adv. Mater. Res. 905 (2014) 132-136.

DOI: 10.4028/www.scientific.net/amr.905.132

Google Scholar

[13] J. Lee, K. Kim, K. Suganuma, M. Inoue and G. Izuta, Thermal Properties and Phase Stability of Zn-Sn and Zn-In Alloys as High Temperature Lead-Free Solder. Mater. T. 48 (2007) 584-593.

DOI: 10.2320/matertrans.48.584

Google Scholar

[14] T. Gancarz, J. Pstrus, P. Fima and S. Mosinska, Thermal Properties and Wetting Behavior of High Temperature Zn-Al-In Solders. In JMEPEG, 21 599-605.

DOI: 10.1007/s11665-012-0146-y

Google Scholar
