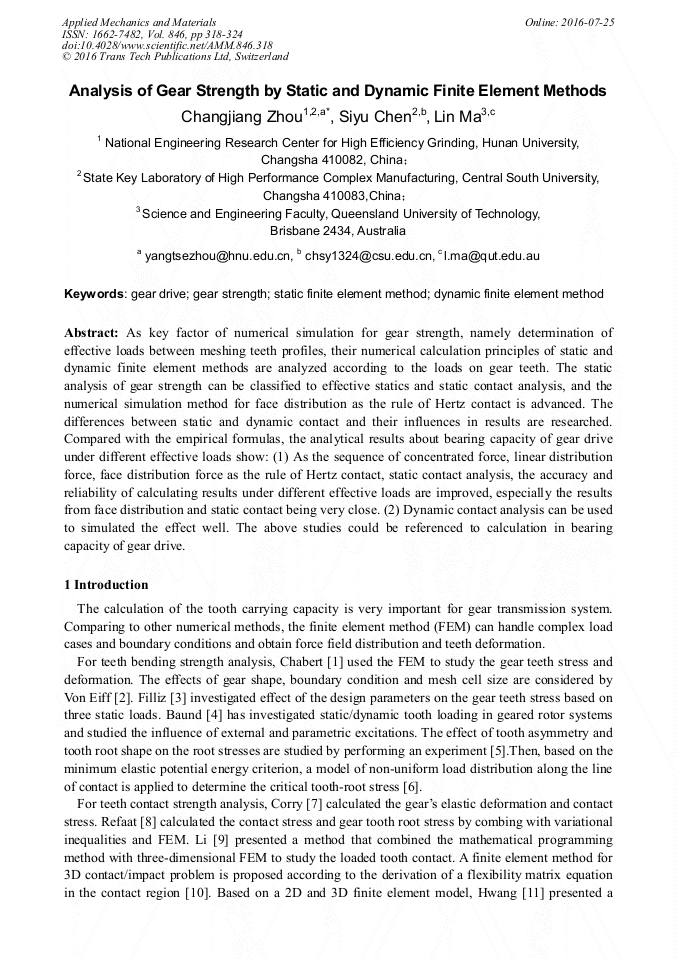

Analysis of Gear Strength by Static and Dynamic Finite Element Methods

Abstract:

As key factor of numerical simulation for gear strength, namely determination of effective loads between meshing teeth profiles, their numerical calculation principles of static and dynamic finite element methods are analyzed according to the loads on gear teeth. The static analysis of gear strength can be classified to effective statics and static contact analysis, and the numerical simulation method for face distribution as the rule of Hertz contact is advanced. The differences between static and dynamic contact and their influences in results are researched. Compared with the empirical formulas, the analytical results about bearing capacity of gear drive under different effective loads show: (1) As the sequence of concentrated force, linear distribution force, face distribution force as the rule of Hertz contact, static contact analysis, the accuracy and reliability of calculating results under different effective loads are improved, especially the results from face distribution and static contact being very close. (2) Dynamic contact analysis can be used to simulated the effect well. The above studies could be referenced to calculation in bearing capacity of gear drive.

• Periodical: Applied Mechanics and Materials (Volume 846)
• Pages: 318-324
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.846.318
• Online since: July 2016
• Authors: Chang Jiang Zhou*, Si Yu Chen, Lin Ma
• Keywords: Dynamic Finite Element Method, Gear Drive, Gear Strength, Static Finite Element Method

References

[1] Chabert G, Dand T T, Mathis R. An evaluation of stresses and deflection of spur gear teeth under strain. ASME Journal of Engineering for Industry, 1974, 96(1): 85-93.

DOI: 10.1115/1.3438335

[2] Von Eiff H, Hirschmann K H, Lechner G. Influence of gear tooth geometry on tooth stress of external and internal gears. ASME Journal of Mechanical Design, 1990, 112(4): 575-583.

DOI: 10.1115/1.2912649

[3] Huseyin Filiz I, Eyercioglu O. Evaluation of gear tooth stresses by finite element method. ASME Journal of Engineering for Industry, 1995, 117(2): 232-239.

DOI: 10.1115/1.2803299

[4] Baud S, Velex P. Static and dynamic tooth loading in spur and helical geared systems experiments and model validation. ASME Journal of Mechanical Design, 2002, 124(2): 334-346.

DOI: 10.1115/1.1462044

[5] Sanders A, Houser D R, Kahraman A, et al. An experimental investigation of the effect of tooth asymmetry and tooth root shape on root stresses and single tooth bending fatigue life of gear teeth. ASME 2011 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, 2011: 297-305.

DOI: 10.1115/detc2011-48303

[6] Sánchez M B, Pedrero J I, Pleguezuelos M. Critical stress and load conditions for bending calculations of involute spur and helical gears. International Journal of Fatigue, 2013, 48: 28-38.

DOI: 10.1016/j.ijfatigue.2012.11.015

[7] Conry T F, Seireg A. Mathematical programming technique for the evaluation of load distribution and optimal modification for gear systems. ASME Journal of Engineering for Industry, 1973, 95(11). 1115-1122.

DOI: 10.1115/1.3438259

[8] Refaat M H, Meguid S A. On the contact stress analysis of spur gears using variational inequalities. Computers and Structures, 1995, 57(5): 871-882.

DOI: 10.1016/0045-7949(95)00080-z

[9] Shuting L. Gear contact model and loaded tooth contact analysis of a three-dimensional, thin-rimmed gear. ASME Journal of Mechanical Design, 2002, 124(3): 511-517.

DOI: 10.1115/1.1485290

[10] Lin T, Ou H, Li R. A finite element method for 3D static and dynamic contact/impact analysis of gear drives. Computer methods in applied mechanics and engineering, 2007, 196(9): 1716-1728.

DOI: 10.1016/j.cma.2006.09.014

[11] Hwang S C, Lee J H, Lee D H, et al. Contact stress analysis for a pair of mating gears. Mathematical and Computer Modeling, 2013, 57(1): 40-49.

DOI: 10.1016/j.mcm.2011.06.055

[12] José I. Pedrero, Miguel Pleguezuelos, Marta Muñoz. Contact stress calculation of undercut spur and helical gear teeth. Mechanism and Machine Theory, 2011, 46 (11) : 1633-1646.

DOI: 10.1016/j.mechmachtheory.2011.06.015

[13] Zhou Changjiang, Tang Jinyuan, Wu Yunxin. The comparative study of the bending stress and elastic deformation calculation of gear tooth. Journal of Mechanical Transmission, 2004, 28(5): 1-6.

[14] Niemann. Maschinen Elemente Bd. II. Springer, Berlin, (1960).

[15] Japanese Institute of Mechanical Engineering, (Li Ruzhen, Zhao Qinghui translate). Information of gear Strength design. Beijing: China Machine Press, (1984).
