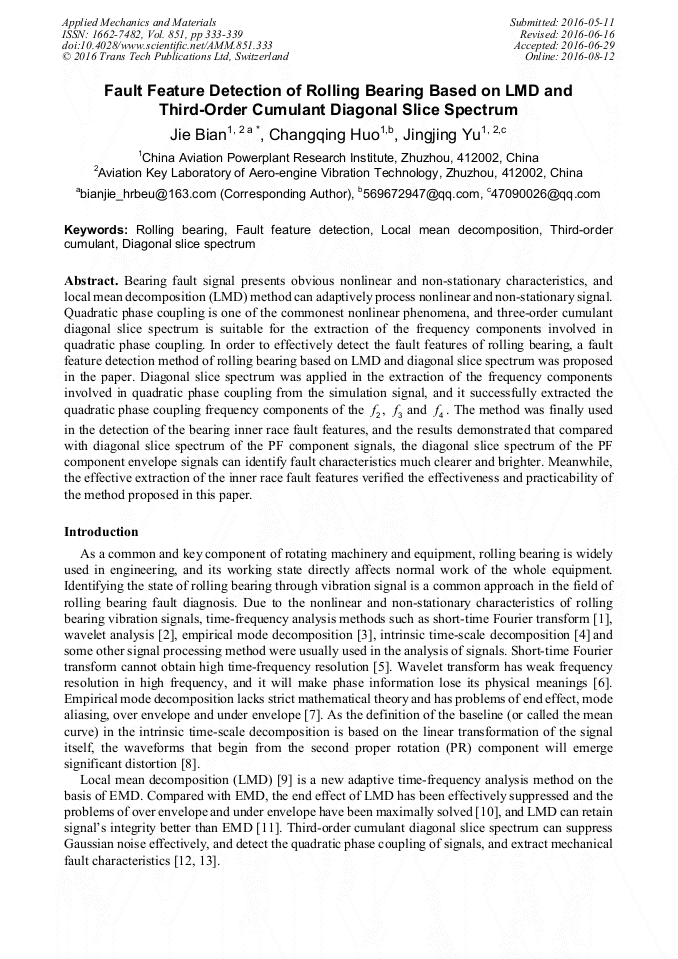

Fault Feature Detection of Rolling Bearing Based on LMD and Third-Order Cumulant Diagonal Slice Spectrum

Abstract:

Bearing fault signal presents obvious nonlinear and non-stationary characteristics, and local mean decomposition (LMD) method can adaptively process nonlinear and non-stationary signal. Quadratic phase coupling is one of the commonest nonlinear phenomena, and three-order cumulant diagonal slice spectrum is suitable for the extraction of the frequency components involved in quadratic phase coupling. In order to effectively detect the fault features of rolling bearing, a fault feature detection method of rolling bearing based on LMD and diagonal slice spectrum was proposed in the paper. Diagonal slice spectrum was applied in the extraction of the frequency components involved in quadratic phase coupling from the simulation signal, and it successfully extracted the quadratic phase coupling frequency components of the , and . The method was finally used in the detection of the bearing inner race fault features, and the results demonstrated that compared with diagonal slice spectrum of the PF component signals, the diagonal slice spectrum of the PF component envelope signals can identify fault characteristics much clearer and brighter. Meanwhile, the effective extraction of the inner race fault features verified the effectiveness and practicability of the method proposed in this paper.

• Periodical: Applied Mechanics and Materials (Volume 851)
• Pages: 333-339
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.851.333
• Online since: August 2016
• Authors: Bian Jie*, Chang Qing Huo, Jing Jing Yu
• Keywords: Diagonal Slice Spectrum, Fault Feature Detection, Local Mean Decomposition (LMD), Rolling Bearing, third-order cumulant

References

[1] Z. B. Hu, M. X. Xu, G. D. Jiang, D. S. Zhang, Analysis of non-stationary signal of a sudden unbalanced spindle based on wavelet noise reduction and short-time Fourier transformation, J. Vib. Shock, 33 (2014) 20-23, 36.

[2] W. B. Xiao, J. Chen, Y. Zhou, Z. Y. Wang, F. G. Zhao, Wavelet packet transform and hidden Markov model based bearing performance degradation assessment, J. Vib. Shock, 30 (2011) 32-35.

[3] N. E. Huang, S. Zheng, S. R. Long, M. C. Wu, H. H. Shih, Q. Zheng, N. C. Yen, C. C. Tung, H. H. Liu, The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis, Proc. R. Soc. Lond. A. 454(1971).

DOI: 10.1098/rspa.1998.0193

[4] M. G. Frei, I. Osorio, Intrinsic time-scale decomposition: time-frequency-energy analysis and real-time filtering of non-stationary signals, Proc. R. Soc. A 463(2078) (2007) 321-342.

DOI: 10.1098/rspa.2006.1761

[5] T Wang, F. S. Meng, Y. S. Li, X. Lan, The comparison of time-frequency analysis methods and their application, Mar. Geol. Front. 29 (2013) 60-64.

[6] Y. H. Chen, C. C. Yang, Q. F. Cao, B. T. Li, Y. S. Shang, The comparison of some time-frequency analysis methods, Prog. Geophysics, 21 (2006) 1180-1185.

[7] L. Xiang, X. A. Yan, Performance contrast between LMD and EMD in fault diagnosis of turbine rotors, J. Chin. Soc. Power Eng. 34 (2014) 945-951.

[8] J. D. Zheng, J. S. Cheng, Y. Yang, A rolling bearing fault diagnosis method based on improved ITD and fuzzy entropy, China Mech. Eng. 23 (2012) 2372-2377.

[9] S. S. Jonathan, The local mean decomposition and its application to EEG perception data, J. R. Soc. Interface. 2 (2005) 443-454.

[10] Z. W. Wang, H. E. Sun, W. X. Liu, Study on rolling bearing fault diagnosis based on LMD and difference spectrum theory of singular value, Mech. Sci. Technol. Aerospace Eng. 33 (2014) 1340-1344.

[11] R. Z. Zhao, H. Yu, J. G. Xu, Fault diagnosis approach for rotor system based on LMD-approximate entropy and HMM, J. Lanzhou U. Technol. 38 (2012) 24-29.

[12] X. Y. Zhong, C. H, Zhao, H. J. Dong, X. M. Liu, L. C. Zeng, Rolling bearing fault diagnosis using sample entropy and 1. 5 dimension spectrum based on EMD, Appl. Mech. Mater. 278-280 (2013) 1027-1031.

DOI: 10.4028/www.scientific.net/amm.278-280.1027

[13] H. K. Jiang, Y. Xia, X. D. Wang, Rolling bearing fault detection using an adaptive lifting multiwavelet packet with a dimension spectrum, Meas. Sci. Technol. 24(12) (2013) 1-10.

DOI: 10.1088/0957-0233/24/12/125002
