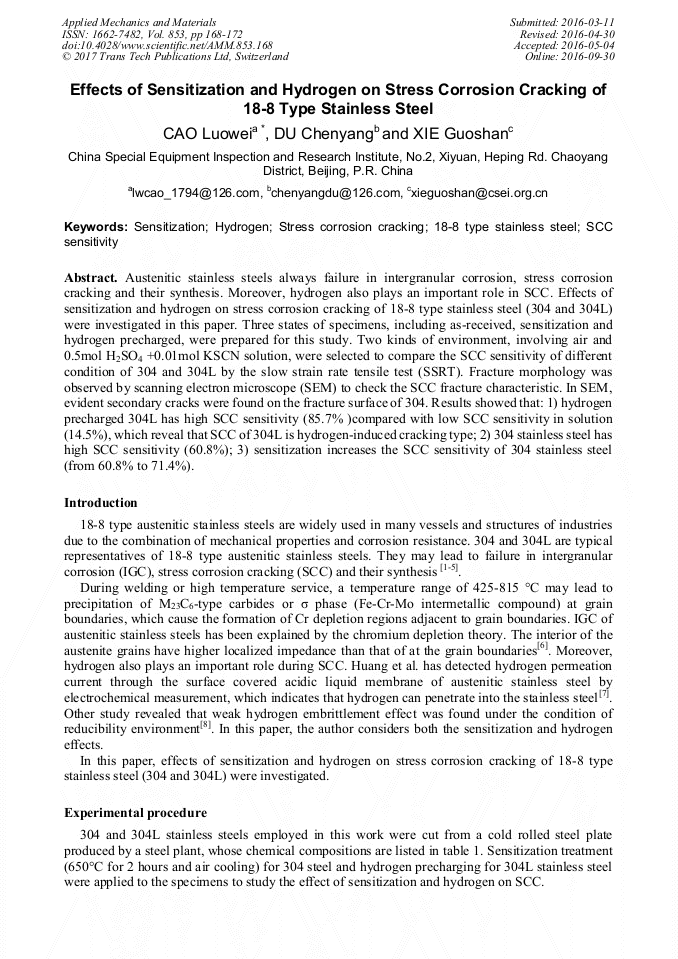

Effects of Sensitization and Hydrogen on Stress Corrosion Cracking of 18-8 Type Stainless Steel

Abstract:

Austenitic stainless steels always failure in intergranular corrosion, stress corrosion cracking and their synthesis. Moreover, hydrogen also plays an important role in SCC. Effects of sensitization and hydrogen on stress corrosion cracking of 18-8 type stainless steel (304 and 304L) were investigated in this paper. Three states of specimens, including as-received, sensitization and hydrogen precharged, were prepared for this study. Two kinds of environment, involving air and 0.5mol H₂SO₄ +0.01mol KSCN solution, were selected to compare the SCC sensitivity of different condition of 304 and 304L by the slow strain rate tensile test (SSRT). Fracture morphology was observed by scanning electron microscope (SEM) to check the SCC fracture characteristic. In SEM, evident secondary cracks were found on the fracture surface of 304. Results showed that: 1) hydrogen precharged 304L has high SCC sensitivity (85.7% ) compared with low SCC sensitivity in solution (14.5%), which reveal that SCC of 304L is hydrogen-induced cracking type; 2) 304 stainless steel has high SCC sensitivity (60.8%); 3) sensitization increases the SCC sensitivity of 304 stainless steel (from 60.8% to 71.4%).

• Periodical: Applied Mechanics and Materials (Volume 853)
• Pages: 168-172
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.853.168
• Online since: September 2016
• Authors: Luo Wei Cao*, Chen Yang Du, Guo Shan Xie
• Keywords: 18-8 Type Stainless Steel, Hydrogen, SCC Sensitivity, Sensitization, Stress Corrosion Cracking

References

[1] R. Singh, B. Ravikumar, A. Kumar, P.K. Dey, I. Chattoraj, The effects of cold working on sensitization and intergranular corrosion behavior of AlSl 304 stainless steel, Metall. Mater. Trans. A 34 (2003) 2441-2447.

DOI: 10.1007/s11661-003-0004-5

[2] H. Sahlaoui, K. Makhlouf, H. Sidhom, J. Philibert, Effects of ageing conditions on the precipitates evolution, chromium depletion and intergranular corrosion susceptibility of AISI 316L: experimental and modeling results, Mater. Sci. Eng., A 372 (2004).

DOI: 10.1016/j.msea.2003.12.017

[3] M.A. Gaudet, J.R. Scully, Distributions of Cr depletion levels in sensitized AISI 304 stainless steel and its implications concerning intergranular corrosion phenomena, J. Electrochem. Soc. 140 (1993) 3425-3435.

DOI: 10.1149/1.2221106

[4] Jian Xu, Xinqiang Wu, En-Hou Han, Acoustic emission response of sensitized 304 stainless steel during intergranular corrosion and stress corrosion cracking, Corrosion Science, 73(2013) 262-273.

DOI: 10.1016/j.corsci.2013.04.014

[5] D.T. Spencer, M.R. Edwards, M.R. Wenman, C. Tsitsios, G.G. Scatigno, P.R. Chard-Tuckey, The initiation and propagation of chloride-induced transgranular stress-corrosion cracking (TGSCC) of 304L austenitic stainless steel under atmospheric conditions, Corrosion Science, 88 (2014).

DOI: 10.1016/j.corsci.2014.07.017

[6] A. Arutunow, K. Darowicki, M.T. Tobiszewski, Electrical mapping of AISI 304 stainless steel subjected to intergranular corrosion performed by means of AFM–LIS in the contact mode, Corrosion Science, 71 (2013) 37-42.

DOI: 10.1016/j.corsci.2013.02.001

[7] Y.L. Huang, S. Bailey, X.Q. Dong, Hydrogen entry into austenitic stainless steel during the process of marine corrosion and stress corrosion, 8th National Symposium on environmental sensitivity fracture, (2011)43-52.

[8] D.Q. Peng, S.L. Hu, P.Z. Zhang, H. Wang. Influence of chlorine, oxygen and hydrogen on the stress corrosion cracking of 304L in a circuit of simulated pressurized water reactor, 2012 China Institute of corrosion and protection of Energy Engineering Professional Committee of academic exchanges and the 2012 Energy Materials Conference, (2012).

[9] Y. Jiang, J.M. Gong, R.R. Zhou, Stress corrosion cracking of 316L stainless steel in NaOH solution at high temperature, 29(2008)749-751.

[10] X.J. Luo, Effect of sensitization and chloride ion concentration on SCC cracking sensitivity of 304 stainless steel in chloride medium, Proceedings of the symposium on corrosion and protection of young people in China, (1997)21-28.
