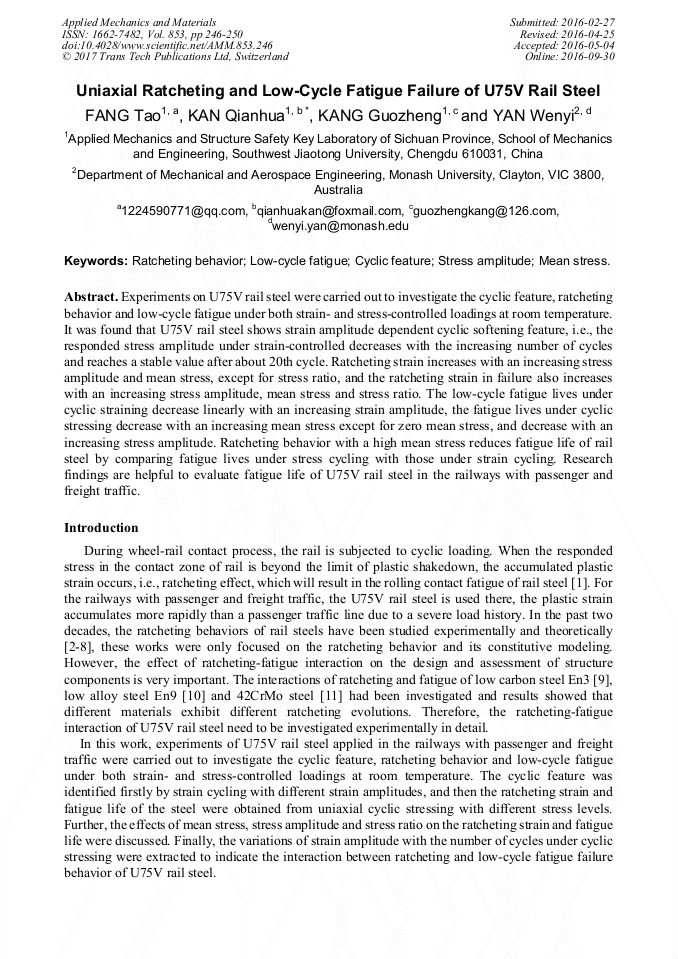

Uniaxial Ratcheting and Low-Cycle Fatigue Failure of U75V Rail Steel

Abstract:

Experiments on U75V rail steel were carried out to investigate the cyclic feature, ratcheting behavior and low-cycle fatigue under both strain- and stress-controlled loadings at room temperature. It was found that U75V rail steel shows strain amplitude dependent cyclic softening feature, i.e., the responded stress amplitude under strain-controlled decreases with the increasing number of cycles and reaches a stable value after about 20th cycle. Ratcheting strain increases with an increasing stress amplitude and mean stress, except for stress ratio, and the ratcheting strain in failure also increases with an increasing stress amplitude, mean stress and stress ratio. The low-cycle fatigue lives under cyclic straining decrease linearly with an increasing strain amplitude, the fatigue lives under cyclic stressing decrease with an increasing mean stress except for zero mean stress, and decrease with an increasing stress amplitude. Ratcheting behavior with a high mean stress reduces fatigue life of rail steel by comparing fatigue lives under stress cycling with those under strain cycling. Research findings are helpful to evaluate fatigue life of U75V rail steel in the railways with passenger and freight traffic.

• Periodical: Applied Mechanics and Materials (Volume 853)
• Pages: 246-250
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.853.246
• Online since: September 2016
• Authors: Tao Fang, Qian Hua Kan*, Guo Zheng Kang, Wen Yi Yan
• Keywords: Cyclic Feature, Low-Cycle Fatigue, Mean Stress, Ratcheting Behavior, Stress Amplitude

References

[1] A. Kapoor, A re-evaluation of the life to rupture of ductile metals by cyclic plastic strain, Fatig. Fract Eng. Mater. Struct. 17(1994) 201-19.

DOI: 10.1111/j.1460-2695.1994.tb00801.x

[2] A.F. Bower, Cyclic hardening properties of hard-drawn copper and rail steel, J. Mech. Phys. Solids 37(1989) 455-70.

DOI: 10.1016/0022-5096(89)90024-0

[3] C.B. Lim, K.S. Kim, J.B. Seong, Ratcheting and fatigue behaviour of a copper alloy under uniaxial cyclic loading with mean stress, Int. J. Fatigue 31(2009) 501-7.

DOI: 10.1016/j.ijfatigue.2008.04.008

[4] C.Y. Kim, J.H. Song, Y. Hwangbo, H.S. Shim, Plastic deformation behavior of Cu thin films during fatigue testing, Procedia Eng. 2(2010) 1421-30.

DOI: 10.1016/j.proeng.2010.03.154

[5] D.L. McDowell, Stress state dependence of cyclic ratcheting behaviour of two rail steels, Int. J. Plast. 11(1995) 397-421.

[6] G.Z. Kang, Q. Gao, X.J. Yang, Experimental study on the cyclic deformation and plastic flow of U71Mn rail steel, Int. J. Mech. Sci. 44(2002), 1647-63.

DOI: 10.1016/s0020-7403(02)00062-0

[7] G.Z. Kang, Q. Gao, Uniaxial and non-proportionally multiaxial ratcheting of U71Mn rail steel: experiments and simulations, Mech. Mater. 34(2002) 809-20.

DOI: 10.1016/s0167-6636(02)00198-9

[8] C.L. Pun, Q.H. Kan, P.J. Mutton, G.Z. Kang, W.Y. Yan, Ratcheting behavious of high strength rial steels under bi-axial compression-torsion loadings: Experiement and simulation, Int. J. Fatigue 66(2014) 138-154.

DOI: 10.1016/j.ijfatigue.2014.03.021

[9] R.J. Rider, S.J. Harvey, H.D. Chandler, Fatigue and ratcheting interactions, Int. J. Fatigue 17(1995) 507-511.

DOI: 10.1016/0142-1123(95)00046-v

[10] Z. Xia, D. Kujawski, F. Ellyin, Effect of mean stress and ratcheting strain on fatigue life of steel, Int. J. Fatigue 18 (1996) 335-341.

DOI: 10.1016/0142-1123(96)00088-6

[11] G.Z. Kang, Y.J. Liu, Uniaxial ratcheting and low-cyle fatigue failure of the steel with cyclic stabilizing or softening feature, Mater. Sci. Eng. A 472(2008) 258-268.

DOI: 10.1016/j.msea.2007.03.029

[12] J. Peng, C. Y. Zhou, Q. Dai, X. H. He, X. C. Yu, Fatigue and ratcheting behaviors of CP-Ti at room temperature, Mater. Sci. Eng. A 590 (2014) 329-337.

DOI: 10.1016/j.msea.2013.10.063
