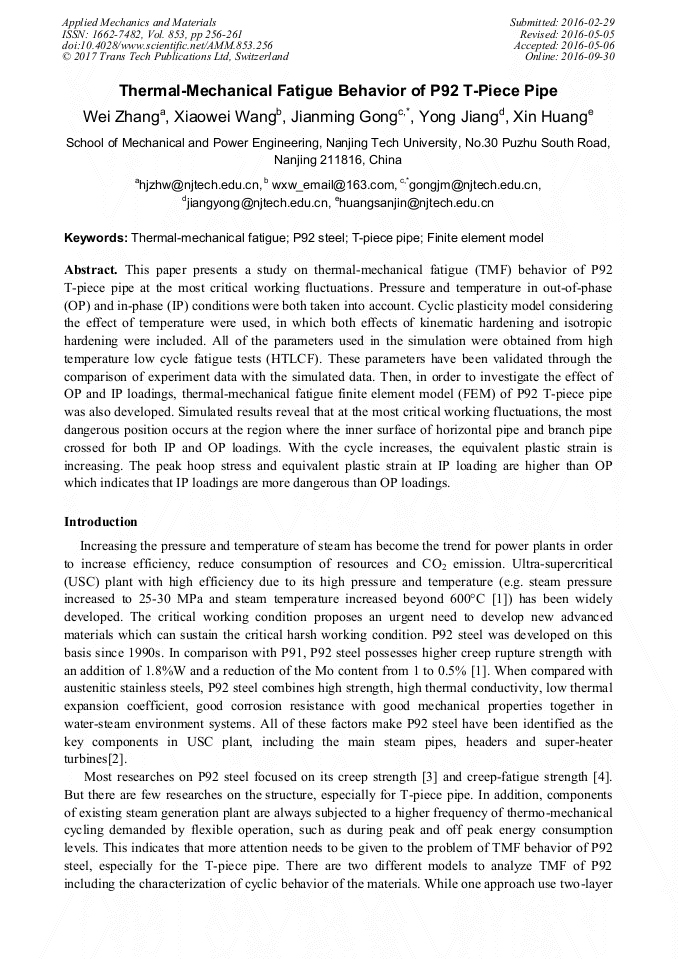

Thermal-Mechanical Fatigue Behavior of P92 T-Piece Pipe

Abstract:

This paper presents a study on thermal-mechanical fatigue (TMF) behavior of P92 T-piece pipe at the most critical working fluctuations. Pressure and temperature in out-of-phase (OP) and in-phase (IP) conditions were both taken into account. Cyclic plasticity model considering the effect of temperature were used, in which both effects of kinematic hardening and isotropic hardening were included. All of the parameters used in the simulation were obtained from high temperature low cycle fatigue tests (HTLCF). These parameters have been validated through the comparison of experiment data with the simulated data. Then, in order to investigate the effect of OP and IP loadings, thermal-mechanical fatigue finite element model (FEM) of P92 T-piece pipe was also developed. Simulated results reveal that at the most critical working fluctuations, the most dangerous position occurs at the region where the inner surface of horizontal pipe and branch pipe crossed for both IP and OP loadings. With the cycle increases, the equivalent plastic strain is increasing. The peak hoop stress and equivalent plastic strain at IP loading are higher than OP which indicates that IP loadings are more dangerous than OP loadings.

• Periodical: Applied Mechanics and Materials (Volume 853)
• Pages: 256-261
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.853.256
• Online since: September 2016
• Authors: Wei Zhang, Xiao Wei Wang, Jian Ming Gong*, Yong Jiang, Xin Huang
• Keywords: Finite Element Model, P92 Steel, Thermal Mechanical Fatigue, T-Piece Pipe

References

[1] P. J. Ennis, A. Czyrska-Filemonowicz. Recent advances in creep-resistant steels for power plant applications. Sadhana - Academy Proceedings in Engineering Sciences, 28 (2003) 709-730.

DOI: 10.1007/bf02706455

[2] X. W. Wang, J. M. Gong, Y. Jiang, Y. P. Zhao, M. H. Yu. Modeling of Low Cycle Behavior of P92 Steel Based on Cyclic Plasticity Constitutive Equations. Applied Mechanics and Materials, 750 (2015) 41-46.

DOI: 10.4028/www.scientific.net/amm.750.41

[3] M. Yurechko, C. Schroer, A. Skrypnik, O. Wedemeyer, J. Konys. Creep-to-rupture of the steel P92 at 650C in oxygen-controlled stagnant lead in comparison to air. Journal of Nuclear Materials 432 (2013) 78-86.

DOI: 10.1016/j.jnucmat.2012.07.029

[4] B. Fournier, S. Maxime, C. Christel, N. Michel, R. Véronique, B. Annick, P. André. High temperature creep-fatigue-oxidation interactions in 9-12% Cr martensitic steels. Journal of Nuclear Materials, 386 (2009) 418-421.

DOI: 10.1016/j.jnucmat.2008.12.139

[5] T.P. Farragher, N.P. O'Dowd, S. Scully, S.B. Leen, Thermo-mechanical characterization of P91 power plant componrents, in: Twenty First International Workshop on Computational Mechanics of Materials, 22-24 August, Limerick, Ireland, (2011).

[6] Y. P. Gong, C. J. Hyde, W. Sun, T.H. Hyde. Determination of material properties in the Chaboche unified viscoplasticity model[J]. Proceedings of the Institution of Mechanical Engineers, Part L: Journal of Materials Design and Applications, 224(2010).

DOI: 10.1243/14644207jmda273

[7] W. Sun, D.W.J. Tanner, T.H. Hyde, A.A. Saad. Thermal-mechanical fatigue behavior of 9-12% Cr power plant steels and pipes. Sustainable power generation and supply (SUPERGEN 2012), International coference, 8-9 Sept. 2012 1-8.

DOI: 10.1049/cp.2012.1807

[8] X. W. Wang, Y. Jiang, J. M. Gong, Y. P. Zhao, X. Huang. Characterization of Low Cycle Fatigue of Ferritic-Martensitic P92 Steel: Effect of Temperature. steel research international, (2015).

DOI: 10.1002/srin.201500218

[9] X.W. Wang, J. M. Gong,Y. P. Zhao, Y. F. Wang, M. H. Yu. Characterization of Low Cycle Fatigue Performance of New Ferritic P92 Steel at High Temperature: Effect of Strain Amplitude. steel research international, 86(2015) 1046-1055.

DOI: 10.1002/srin.201400246

[10] B. Čermelj, P. Može, F. Sinur. On the prediction of low-cycle fatigue in steel welded beam-to-column joints. Journal of Constructional Steel Research, 117 (2016) 49-63.

DOI: 10.1016/j.jcsr.2015.09.017

[11] R. Petráš, V. Škorík, J. Polák. Thermomechanical fatigue and damage mechanisms in Sanicro 25 Steel. Materials Science & Engineering A, 650 (2016) 52-62.

DOI: 10.1016/j.msea.2015.10.030

[12] M. Li, R. A. Barrett, S. Scully, N. M. Harrison, S. B. Leen, P. E. O'Donoghue. Cyclic plasticity of welded P91 material for simple and complex power plant connections. International Journal of Fatigue, 87(2016) 391-404.

DOI: 10.1016/j.ijfatigue.2016.02.005
