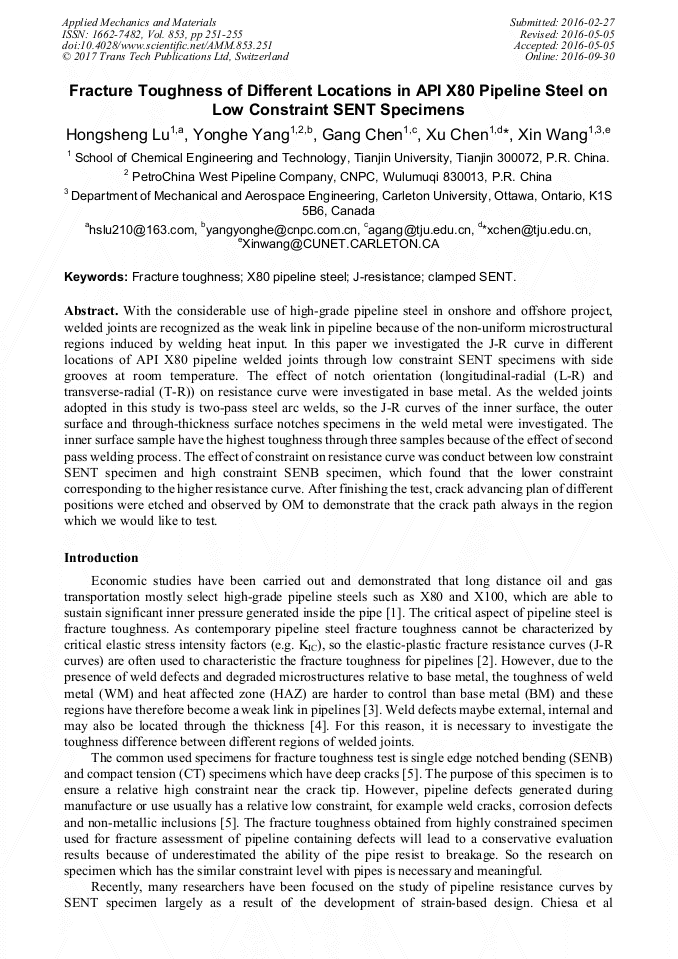

Fracture Toughness of Different Locations in API X80 Pipeline Steel on Low Constraint SENT Specimens

Abstract:

With the considerable use of high-grade pipeline steel in onshore and offshore project, welded joints are recognized as the weak link in pipeline because of the non-uniform microstructural regions induced by welding heat input. At first, the microstructural of different regions in API X80 pipeline welded joints was characterized and quantified by SEM, which indicate that the pipeline steel is a typical acicular ferrite steel. In this paper we investigated the J-integral resistance curve (J-R curve) in different locations of API X80 pipeline welded joints through low constraint SENT specimens with side grooves at room temperature. The effect of notch orientation (longitudinal-radial (L-R) and transverse-radial (T-R)) on resistance curve were investigated in base metal, which reveal the orientation almost have no effect on resistance curve. As the welded joints adopted in this study is two-pass steel arc welds, so the J-R curves of the inner surface, the outer surface and through-thickness surface notches specimens in the weld metal were investigated. The inner surface sample have the highest toughness through three samples because of the effect of second pass welding process. The effect of constraint on resistance curve was conduct between low constraint SENT specimen and high constraint SENB specimen, which found that the lower constraint corresponding to the higher resistance curve. After finishing the test, crack advancing plan of different positions were etched and observed by OM to demonstrate that the crack path always in the region which we would like to test.

• Periodical: Applied Mechanics and Materials (Volume 853)
• Pages: 251-255
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.853.251
• Online since: September 2016
• Authors: Hong Sheng Lu, Yong He Yang, Gang Chen, Xu Chen*, Xin Wang
• Keywords: Clamped SENT, Fracture Toughness, J-Resistance, X80 Pipeline Steel

References

[1] Tanguy B, Luu TT, Perrin G, Pineau A, Besson J. Plastic and damage behaviour of a high strength X100 pipeline steel: Experiments and modelling. Int J Pressure Vessels Pip. 2008; 85: 322-35.

DOI: 10.1016/j.ijpvp.2007.11.001

[2] Zhu X-K, Joyce JA. Review of fracture toughness (G, K, J, CTOD, CTOA) testing and standardization. Engineering Fracture Mechanics. 2012; 85: 1-46.

DOI: 10.1016/j.engfracmech.2012.02.001

[3] Prasad K, Dwivedi DK. Some investigations on microstructure and mechanical properties of submerged arc welded HSLA steel joints. The International Journal of Advanced Manufacturing Technology. 2006; 36: 475-83.

DOI: 10.1007/s00170-006-0855-1

[4] Tang H, Macia M, Minnaar K, Gioielli P, Kibey S, Fairchild D, et al. Development of the SENT Test for Strain-Based Design of Welded Pipelines. New York: Amer Soc Mechanical Engineers; (2010).

DOI: 10.1115/ipc2010-31590

[5] Wang EY, Zhou WX, Shen GW, Duan DM, Asme. AN EXPERIMENTAL STUDY ON J(CTOD)-R CURVES OF SINGLE EDGE TENSION SPECIMENS FOR X80 STEEL. New York: Amer Soc Mechanical Engineers; (2013).

DOI: 10.1115/ipc2012-90323

[6] Chiesa M, Nyhus B, Skallerud B, Thaulow C. Efficient fracture assessment of pipelines. A constraint-corrected SENT specimen approach. Engineering Fracture Mechanics. 2001; 68: 527-47.

DOI: 10.1016/s0013-7944(00)00129-6

[7] Shen G, Gianetto JA, Tyson WR. Measurement of JR curves using single-specimen technique on clamped SE (T) specimens. The Nineteenth International Offshore and Polar Engineering Conference: International Society of Offshore and Polar Engineers; (2009).

[8] Li L, Yang YH, Xu Z, Chen G, Chen X. Fatigue crack growth law of API X80 pipeline steel under various stress ratios based onJ-integral. Fatigue & Fracture of Engineering Materials & Structures. 2014; 37: 1124-35.

DOI: 10.1111/ffe.12193

[9] Moeinifar S, Kokabi AH, Hosseini HRM. Role of tandem submerged arc welding thermal cycles on properties of the heat affected zone in X80 microalloyed pipe line steel. Journal of Materials Processing Technology. 2011; 211: 368-75.

DOI: 10.1016/j.jmatprotec.2010.10.011

[10] Verstraete MA, Hertelé S, Denys RM, Van Minnebruggen K, De Waele W. Evaluation and interpretation of ductile crack extension in SENT specimens using unloading compliance technique. Engineering Fracture Mechanics. 2014; 115: 190-203.

DOI: 10.1016/j.engfracmech.2013.11.004

[11] Chen X, Lu H, Chen G, Wang X. A comparison between fracture toughness at different locations of longitudinal submerged arc welded and spiral submerged arc welded joints of API X80 pipeline steels. Engineering Fracture Mechanics. 2015; 148: 110-21.

DOI: 10.1016/j.engfracmech.2015.09.003

[12] Sung HK, Shin SY, Cha W, Oh K, Lee S, Kim NJ. Effects of acicular ferrite on charpy impact properties in heat affected zones of oxide-containing API X80 linepipe steels. Materials Science and Engineering: A. 2011; 528: 3350-7.

DOI: 10.1016/j.msea.2011.01.031
