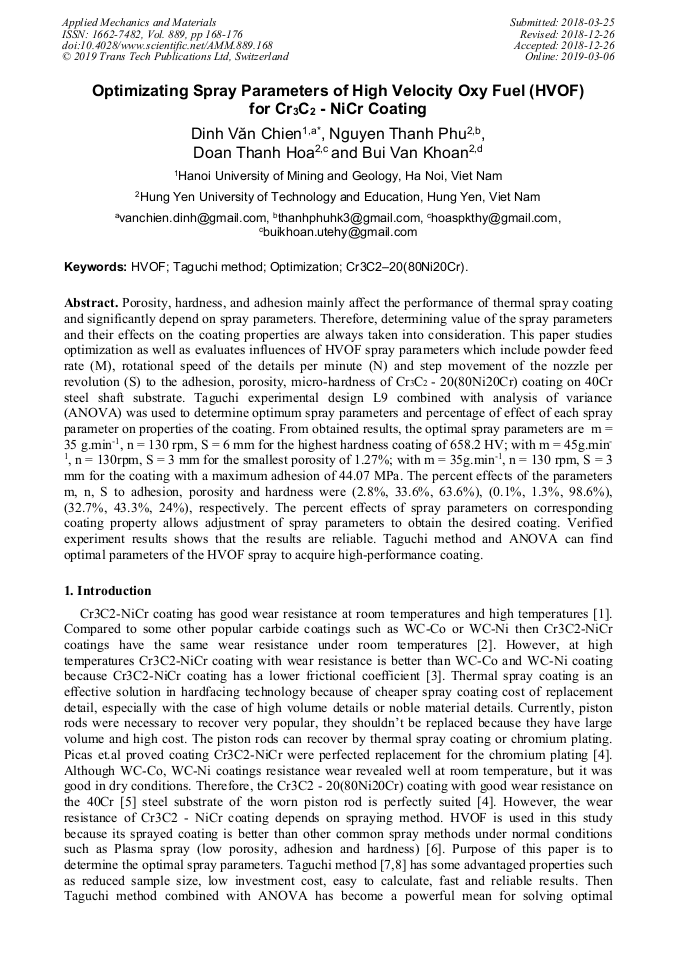

Optimizating Spray Parameters of High Velocity Oxy Fuel (HVOF) for Cr₃C₂ - NiCr Coating

Abstract:

Porosity, hardness, and adhesion mainly affect the performance of thermal spray coating and significantly depend on spray parameters. Therefore, determining value of the spray parameters and their effects on the coating properties are always taken into consideration. This paper studies optimization as well as evaluates influences of HVOF spray parameters which include powder feed rate (M), rotational speed of the details per minute (N) and step movement of the nozzle per revolution (S) to the adhesion, porosity, micro-hardness of Cr₃C₂ - 20(80Ni20Cr) coating on 40Cr steel shaft substrate. Taguchi experimental design L9 combined with analysis of variance (ANOVA) was used to determine optimum spray parameters and percentage of effect of each spray parameter on properties of the coating. From obtained results, the optimal spray parameters are m = 35 g.min^-1, n = 130 rpm, S = 6 mm for the highest hardness coating of 658.2 HV; with m = 45g.min^-1, n = 130rpm, S = 3 mm for the smallest porosity of 1.27%; with m = 35g.min^-1, n = 130 rpm, S = 3 mm for the coating with a maximum adhesion of 44.07 MPa. The percent effects of the parameters m, n, S to adhesion, porosity and hardness were (2.8%, 33.6%, 63.6%), (0.1%, 1.3%, 98.6%), (32.7%, 43.3%, 24%), respectively. The percent effects of spray parameters on corresponding coating property allows adjustment of spray parameters to obtain the desired coating. Verified experiment results shows that the results are reliable. Taguchi method and ANOVA can find optimal parameters of the HVOF spray to acquire high-performance coating.

• Periodical: Applied Mechanics and Materials (Volume 889)
• Pages: 168-176
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.889.168
• Online since: March 2019
• Authors: Văn Chien Dinh, Thanh Phu Nguyen, Thanh Hoa Doan, Van Khoa Bui
• Keywords: Cr₃С₂-20(80Ni20Cr), HVOF, Optimization, Taguchi Method

References

[1] Sarjas, H., Kulu, P., Juhani, K., Viljus, M., Matikainen, Vuoristo, P. (2016). Wear resistance of HVOF sprayed coatings from mechanically activated thermally synthesized Cr3C2–Ni spray powder. Proceedings of the Estonian Academy of Sciences, 65(2), 101-106, (2016).

DOI: 10.3176/proc.2016.2.10

[2] Vashishtha.N, S.G. Sapate, Abrasive wear maps for High Velocity Oxy Fuel (HVOF) sprayed WC-12Co and Cr3C2-25NiCr coatings , Tribology International, (2017).

DOI: 10.1016/j.triboint.2017.04.037

[3] Vashishtha.N, Sapate SG, Bagde P, Rathod AB, Effect of heat treatment on friction and abrasive wear behavior of WC-12Co and Cr3C2-25NiCr coatings, Tribology International, (2017).

DOI: 10.1016/j.triboint.2017.10.017

[4] Picas J.A, Fom A, Matthaus G, HVOF coatings as an alternative to hard chrome for pistons and valves, Wear, 261, 477 – 484, (2006).

DOI: 10.1016/j.wear.2005.12.005

[5] JIS G4053-2003, Low-Alloyed Steels for Machine Structural Use.

[6] Pawlowski L, The Science and Engineering of Thermal Spray Coatings, Wiley and Sons, UK, ISBN No 0471952532, (1995).

[7] Taguchi.G, Introduction to quality engineering: Designing Quality into Products and Processes, (1986).

[8] Taguchi G, Konishi S, Taguchi Methods, orthogonal arrays and linear graphs, tools for quality American supplier institute, American Supplier Institute; 8-35, (1987).

[9] Yujiao Qin, Yuping Wu, Jianfeng Zhang, Sheng Hong, Wenmin Guo, Liyan Chen, and Hao Liu, Optimization of the HOVF Spray Parameters by Taguchi Method for High Corrosion-Resistant Fe-Based Coatings.

DOI: 10.1007/s11665-015-1536-8

[10] Wahyudin, 2Angel Kharisma, 2Richard Dimas Julian Murphiyanto, 2Muhammad, Kevin Perdana, 2Tota Pirdo Kasih, Application of Taguchi method and ANOVA in the optimization of dyeing process on cotton knit fabric to reduce re-dyeing process , The International Conference on Eco Engineering Development (ICEED 2017), (2017).

DOI: 10.1088/1755-1315/109/1/012023

[11] Tan, J. C, Optimisation of the HVOF Thermal Spray Process for Coating, Forming and Repair of Components, Ph.D. Thesis, Dublin City University, Ireland, (1997).

[12] Adnan A.B, (2009), Evaluating the Effects of High Velocity Oxy-Fuel (HVOF) Process,, Jordan Journal of Mechanical and Industrial Engineering, Volume 3, Number 2, 2009, ISSN 1995-6665, 157 – 160, (2009).

[13] Josep A. Picas, Elisa Rupérez, Miquel Punset, Antonio Forn, Influence of HVOF spraying parameters on the corrosion resistance of WC–CoCr coatings in strong acidic environment,, Surface & Coatings Technology, 225, 47-57, (2013).

DOI: 10.1016/j.surfcoat.2013.03.015

[14] T. Varis a, T. Suhonen b , O. Calonius c , J. Čuban d , M. Pietola c, Optimization of HVOF Cr3C2-NiCr coating for increased fatigue performance, Surface & Coatings Technology 305 (2016) 123–131, (2016).

DOI: 10.1016/j.surfcoat.2016.08.012

[15] Gustavo Bavaresco Sucharski1, Anderson Geraldo Marenda Pukasiewicz2, Rodolpho Fernando Váz3, Ramón Sigifredo Cortés Paredes1, Optimization of the Deposition Parameters of HVOF FeMnCrSi+Ni+B Thermally Sprayed Coatings, Technical Papers, (2015).

[16] H. voggenreiter, H. Huber, H-J. S, Pies, and H. Baum, HVOF-Sprayed Alloy IN718 - The Influence of Process Parameters on the Microstructure and Mechanical Properties,, in Thermal Spray: A United Forum for Scienttific and Technological Advances, ed. C.C. Berndt, ASM International, Materials Park, OH, pp.895-900, (1997).

DOI: 10.31399/asm.cp.itsc1997p0895

[17] O. Maranhoa,D. Rodrigues, M. Boccalini Jr, A. Sinatora, c Influence of parameters of the HVOF thermal spray process on the properties of multicomponent white cast iron coatings, Surface & Coatings Technology 202, p.3494–3500, (2008).

DOI: 10.1016/j.surfcoat.2007.12.026

[18] Test methods for build-up thermal spraying – JIS H 8664:(2004).

[19] Test methods for ceramic sprayed coatings, JSA - JIS H 8666:(1994).

[20] Standard Test Method for Microindentation Hardness of Materials, ASTM E384 – 17: (2011).
