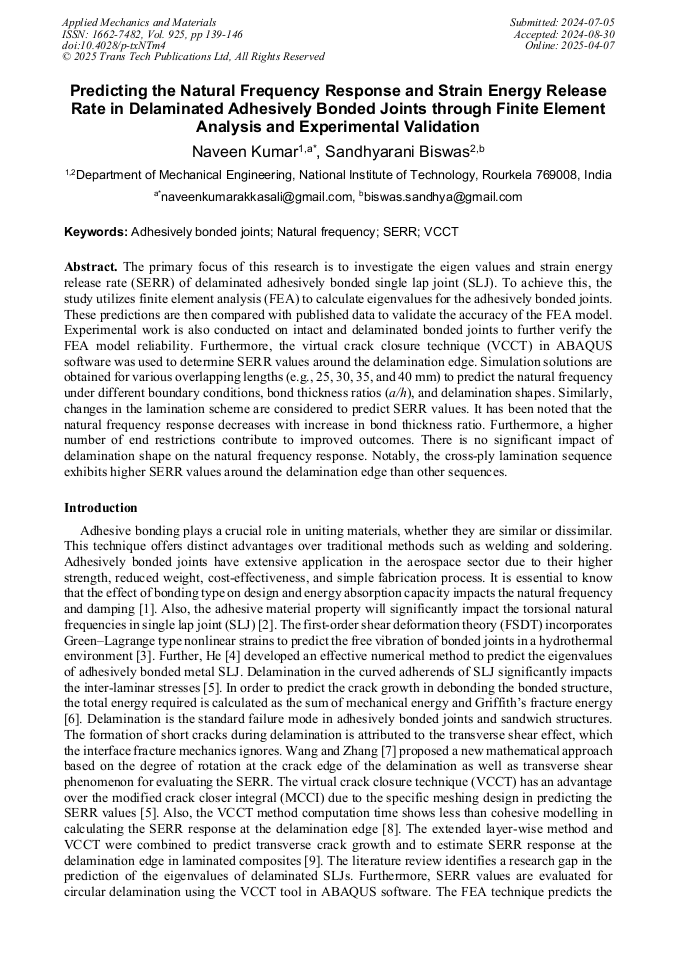

Predicting the Natural Frequency Response and Strain Energy Release Rate in Delaminated Adhesively Bonded Joints through Finite Element Analysis and Experimental Validation

Abstract:

The primary focus of this research is to investigate the eigen values and strain energy release rate (SERR) of delaminated adhesively bonded single lap joint (SLJ). To achieve this, the study utilizes finite element analysis (FEA) to calculate eigenvalues for the adhesively bonded joints. These predictions are then compared with published data to validate the accuracy of the FEA model. Experimental work is also conducted on intact and delaminated bonded joints to further verify the FEA model reliability. Furthermore, the virtual crack closure technique (VCCT) in ABAQUS software was used to determine SERR values around the delamination edge. Simulation solutions are obtained for various overlapping lengths (e.g., 25, 30, 35, and 40 mm) to predict the natural frequency under different boundary conditions, bond thickness ratios (a/h), and delamination shapes. Similarly, changes in the lamination scheme are considered to predict SERR values. It has been noted that the natural frequency response decreases with increase in bond thickness ratio. Furthermore, a higher number of end restrictions contribute to improved outcomes. There is no significant impact of delamination shape on the natural frequency response. Notably, the cross-ply lamination sequence exhibits higher SERR values around the delamination edge than other sequences.

• Periodical: Applied Mechanics and Materials (Volume 925)
• Pages: 139-146
• DOI: https://doi.org/10.4028/p-txNTm4
• Online since: April 2025
• Authors: Naveen Kumar*, Sandhyarani Biswas
• Keywords: Adhesively Bonded Joints, Natural Frequency, SERR, VCCT

References

[1] Yaman, M. & Şansveren, M.F. (2021) Numerical and experimental vibration analysis of different types of adhesively bonded joints. Structures, 34, 368–80

DOI: 10.1016/j.istruc.2021.07.071

[2] He, X. (2014) Finite element analysis of torsional free vibration of adhesively bonded single-lap joints. International Journal of Adhesion and Adhesives, Elsevier. 48, 59–66

DOI: 10.1016/j.ijadhadh.2013.09.017

[3] Naidu, N.V.S. & Sinha, P.K. (2007) Nonlinear free vibration analysis of laminated composite shells in hygrothermal environments. Composite Structures, 77, 475–83

DOI: 10.1016/j.compstruct.2005.08.002

[4] He, X. (2012) Numerical and experimental investigations of the dynamic response of bonded beams with a single-lap joint. International Journal of Adhesion and Adhesives, Elsevier. 37, 79–85

DOI: 10.1016/j.ijadhadh.2012.01.008

[5] Parida, S.K. & Pradhan, A.K. (2014) Influence of curvature geometry of laminated FRP composite panels on delamination damage in adhesively bonded lap shear joints. International Journal of Adhesion and Adhesives, Elsevier. 54, 57–66

DOI: 10.1016/j.ijadhadh.2014.05.003

[6] Krasucki, F., Münch, A. & Ousset, Y. (2002) Numerical simulation of debonding of adhesively bonded joint. International Journal of Solids and Structures, 39, 6355–83

DOI: 10.1016/S0020-7683(02)00480-8

[7] Wang, J. & Zhang, C. (2009) Energy release rate and phase angle of delamination in sandwich beams and symmetric adhesively bonded joints. International Journal of Solids and Structures, Elsevier Ltd. 46, 4409–18

DOI: 10.1016/j.ijsolstr.2009.09.003

[8] Sindhu, B.R., Raju, J. & Kamath, K. (2020) A Comparative Analytical study of Standard Composite Double Cantilever Beam using Virtual Crack Closure Technique and Cohesive Zone Modelling method. Materials Today: Proceedings, Elsevier Ltd. 23, 267–75

DOI: 10.1016/j.matpr.2020.02.025

[9] Li, D.H. (2016) Delamination and transverse crack growth prediction for laminated composite plates and shells. Computers and Structures, 177, 39–55

DOI: 10.1016/j.compstruc.2016.07.011

[10] Dewangan, H.C., Panda, S.K., Sharma, N., Mahmoud, S.R., Harursampath, D. & Mahesh, V. (2023) Thermo-mechanical large deformation characteristics of cutout borne multilayered curved structure: Numerical prediction and experimental validation. International Journal of Non-Linear Mechanics, Elsevier Ltd. 150, 104345. https://doi.org/10.1016/j.ijnonlinmec. 2022.104345

DOI: 10.1016/j.ijnonlinmec.2022.104345
