Elimination of Bond Pad Crack through Application of Initial Force via Force Profiling on Sensitive Bond Pads

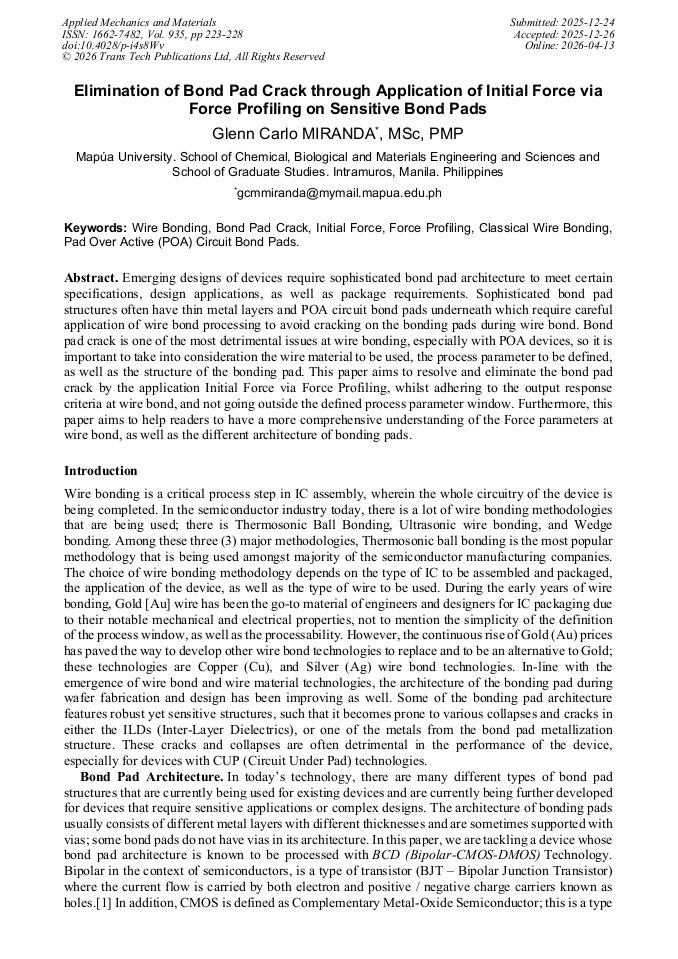

Article Preview

Abstract:

Emerging designs of devices require sophisticated bond pad architecture to meet certain specifications, design applications, as well as package requirements. Sophisticated bond pad structures often have thin metal layers and POA circuit bond pads underneath which require careful application of wire bond processing to avoid cracking on the bonding pads during wire bond. Bond pad crack is one of the most detrimental issues at wire bonding, especially with POA devices, so it is important to take into consideration the wire material to be used, the process parameter to be defined, as well as the structure of the bonding pad. This paper aims to resolve and eliminate the bond pad crack by the application Initial Force via Force Profiling, whilst adhering to the output response criteria at wire bond, and not going outside the defined process parameter window. Furthermore, this paper aims to help readers to have a more comprehensive understanding of the Force parameters at wire bond, as well as the different architecture of bonding pads.

You might also be interested in these eBooks
Modelling and Advanced Approaches in Construction, Mechanical Engineering, Precision Manufacturing, Aerospace Engineering and Robotics View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 935)

Pages:

223-228

DOI:

https://doi.org/10.4028/p-i4s8Wv

Citation:

Cite this paper

Online since:

April 2026

Authors:

Glenn Carlo Miranda*

Keywords:

Bond Pad Crack, Classical Wire Bonding, Force Profiling, Initial Force, Pad Over Active (POA) Circuit Bond Pads, Wire Bonding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] https://anysilicon.com/the-ultimate-guide-to-bcdmos/

Google Scholar

[2] Kevin J. Hess, et al., Reliability of Bond Over Active Pad Structures for 0.13-um CMOS Technology, Electronic Components and Technology Conference (2003).

Google Scholar

[3] Anthony Moh. Iconn / Connx Basic Process Parameters Guidelines, Kulicke and Soffa, (2008).

Google Scholar

[4] Stevan Hunter, et al., Use of Harsh Wire Bonding to Evaluate Various Bond Pad Structures, 45th International Symposium on Microelectronics, San Diego California, (2012).

Google Scholar

[5] Cesar Salas, et al., IC Bond Pad Structural Study by "Ripple Effect", 44th International Symposium on Microelectronics, Long Beach, California, (2011).

Google Scholar

[6] Beikang Gu, Shengan Shen and Hui Li. Mechanism of microweld formation and breakage during Cu–Cu wire bonding investigated by molecular dynamics simulation. 2022 Chinese Physical Society and IOP Publishing Ltd.

DOI: 10.1088/1674-1056/ac0e24

Google Scholar
