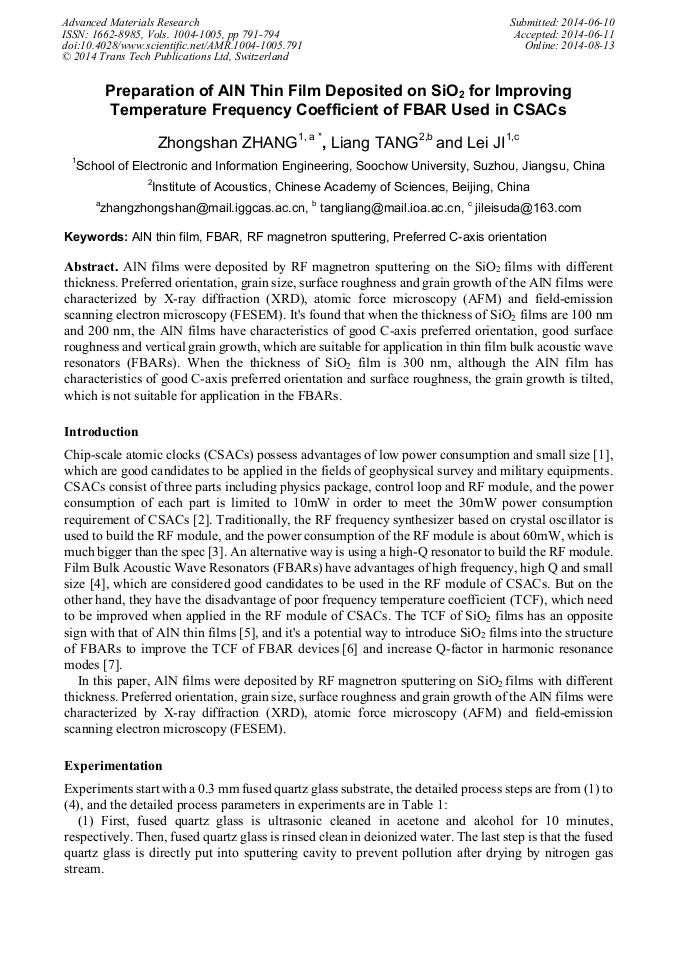

Preparation of AlN Thin Film Deposited on SiO₂ for Improving Temperature Frequency Coefficient of FBAR Used in CSACs

Abstract:

AlN films were deposited by RF magnetron sputtering on the SiO₂ films with different thickness. Preferred orientation, grain size, surface roughness and grain growth of the AlN films were characterized by X-ray diffraction (XRD), atomic force microscopy (AFM) and field-emission scanning electron microscopy (FESEM). It's found that when the thickness of SiO₂ films are 100 nm and 200 nm, the AlN films have characteristics of good C-axis preferred orientation, good surface roughness and vertical grain growth, which are suitable for application in thin film bulk acoustic wave resonators (FBARs). When the thickness of SiO₂ film is 300 nm, although the AlN film has characteristics of good C-axis preferred orientation and surface roughness, the grain growth is tilted, which is not suitable for application in the FBARs.

• Periodical: Advanced Materials Research (Volumes 1004-1005)
• Pages: 791-794
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1004-1005.791
• Online since: August 2014
• Authors: Zhong Shan Zhang, Liang Tang, Lei Ji
• Keywords: AlN Thin Film, FBAR, Preferred C-Axis Orientation, RF Magnetron Sputtering

References

[1] Youpeng CHENG, Jintang SHANG., Yu JI., Microfabricated low cost wafer-level spherical alkali atom vapor cells for chip-scale atomic clock by a Chemical Foaming Process (CFP), in the 14th International Conference on Electronic Packaging Technology (ICEPT), Aug. 11-14, 2013, pp.720-723.

DOI: 10.1109/icept.2013.6756567

[2] Romisch S., Lutwak R., Low-power, 4. 6-GHz, Stable Oscillator for CSAC, in IEEE International Frequency Control Symposium and Exposition, June, 2006, pp.448-451.

DOI: 10.1109/freq.2006.275427

[3] R. Lutwak, The chip-scale atomic clock-recent developments, in IEEE International Frequency Control Symposium Joint with the 22nd European Frequency and Time Forum, April 20-24, 2009, p.573 – 577.

DOI: 10.1109/freq.2009.5168247

[4] Liang TANG, Zhenhong HAO, Donghai QIAO, Chenghao WANG, Piezoelectectrics and Acoustooptics Journal, issue 8, 387-389, 2008. (In Chinese).

[5] Artieda A., and Muralt P., Vol. 55, issue 11, 2463-2468, (2008).

[6] Bin Z., Yang G., Yi H., Junru L., Wanjing H., Piezoelectectrics and Acoustooptics Journal, issue 4, 171-175, 2014. (In Chinese).

[7] Wei P., Hongyu Y., Hao Z., et al, Electrically tunable and temperature compensated FBAR, in IEEE MTT-S International Microwave Symposium Digest, June 12-17, 2005, pp.1279-1282.

DOI: 10.1109/mwsym.2005.1516911

[8] Xiaohong XU, Haishun WU, Preparation of piezoelectric Film, Structure and Application, Beijing Science Press, 2002. (In Chinese).
