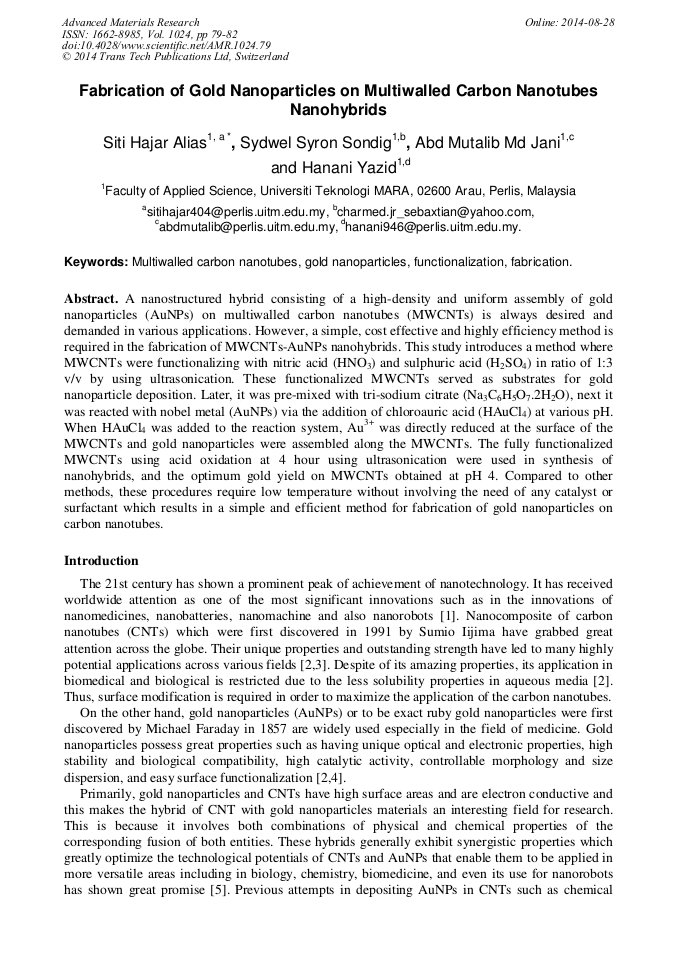

Fabrication of Gold Nanoparticles on Multiwalled Carbon Nanotubes Nanohybrids

Abstract:

A nanostructured hybrid consisting of a high-density and uniform assembly of gold nanoparticles (AuNPs) on multiwalled carbon nanotubes (MWCNTs) is always desired and demanded in various applications. However, a simple, cost effective and highly efficiency method is required in the fabrication of MWCNTs-AuNPs nanohybrids. This study introduces a method where MWCNTs were functionalizing with nitric acid (HNO₃) and sulphuric acid (H₂SO₄) in ratio of 1:3 v/v by using ultrasonication. These functionalized MWCNTs served as substrates for gold nanoparticle deposition. Later, it was pre-mixed with tri-sodium citrate (Na₃C₆H₅O₇.2H₂O), next it was reacted with nobel metal (AuNPs) via the addition of chloroauric acid (HAuCl₄) at various pH. When HAuCl₄ was added to the reaction system, Au³⁺ was directly reduced at the surface of the MWCNTs and gold nanoparticles were assembled along the MWCNTs. Fourier Transform Infrared (FTIR), Thermogravimetric Analysis (TGA), Field Emission Scanning Electron Microscope (FESEM), Energy Dispersive X-ray (EDX) analysis and dispersion test were used to characterize the MWCNTs/AuNPs nanocomposites. The fully functionalized MWCNTs using acid oxidation at 4 hour using ultrasonication were used in synthesis of nanohybrids, and the optimum gold yield on MWCNTs obtained at pH 4. Compared to other methods, these procedures require low temperature without involving the need of any catalyst or surfactant which results in a simple and efficient method for fabrication of gold nanoparticles on carbon nanotubes.

• Periodical: Advanced Materials Research (Volume 1024)
• Pages: 79-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1024.79
• Online since: August 2014
• Authors: Siti Hajar Alias*, Sydwel Syron Sondig Sondig, Abd Mutalib Md Jani, Hanani Yazid
• Keywords: Fabrication, Functionalization, Gold Nanoparticle, Multi-Walled Carbon Nanotube (MWCNT)

References

[1] V. Mangematin, & S. Walsh, The future of nanotechnologies, Technovation, 32 (2012) 157-160.

DOI: 10.1016/j.technovation.2012.01.003

[2] A. Tello, G. Ca rdenas, P. Ha berle, R, A., Segura, The synthesis of hybrid nanostructure of gold nanoparticles and carbon nanotubes and their transformation to solid carbon nanorods, Carbon, 46 (2008) 884-889.

DOI: 10.1016/j.carbon.2008.02.024

[3] R. Hirlekar, M. Yamangar, H. Garse, M. Vij, V. Kadam, Carbon nanotubes and its applications: A review, Aisan Journal of Pharmaceutical and Clinical Research, 2, 4 (2009).

[4] Y. Kuroda, Fukumoto, K. Kuroda, Uniform and high dispersion of gold nanoparticles on imogolite nanotubes and assembly inti morphologically controlled materials, Applied Clay Science, 55 (2012) 11-17.

DOI: 10.1016/j.clay.2011.07.004

[5] L. Beqa, A.K. Singh, Z. Fan, D. Senapati, P.C. Ray, Chemically attached gold nanoparticle-carbon nanotube hybrids for highly sensitive SERS substrate. Chemical Physic Letters, 512, (2011) 237-242.

DOI: 10.1016/j.cplett.2011.07.037

[6] M. Yamada, M.A. Kawana, M. Miyake, Synthesis and diameter control of multiwalled carbon nanotubes over gold nanoparticle catalysts, Applied Catalysis A: General, 302 (2006) 201-207.

DOI: 10.1016/j.apcata.2006.01.006

[7] N. Alexeyava, J. Kozlova, V. Sammelselg, P. Ritslaid, H. Mandar, K. Tammeveski, Electrochemical and surface characterization of gold nanoparticles decorated multiwalled carbon nanotubes, Applied Surface Science, 256 (2009) 3040-3046.

DOI: 10.1016/j.apsusc.2009.11.070

[8] N.A. Buang, F. Fadil, Z.A. Majid, S. Shahir, Characterization of mild acid functionalized multiwalled carbon nanotubes towards high dispersion with low structural defects, Digest Journal of Nanomaterial And Biostructure, 7 (2012) 33-39.

[9] I.T. Amr, A. Al-Amer, P.S.T., M. Al-Harthi, S.A. Girei, R. Sougrat, M.A. Atieh, Effect of acid treated carbon nanotubes on mechanical, rheological and thermal properties of polystyrene nanocomposites, Composites Part B: Engineering, 42 (2011).

DOI: 10.1016/j.compositesb.2011.04.013

[10] L. Chen, H. Xie, W. Yu, Functionalization Methods of Carbon Nanotubes and its Applications, Carbon Nanotubes Applications on Electron Devices (2012).

DOI: 10.5772/18547

[11] C. Zhao, L. Ji, H. Liu, G. Hu, S. Zhang, M. Yang, Yang, Functionalized carbon nanotubes containing isocynate groups, Journal of solid state chemistry, 177 (2004) 4394-4398.

DOI: 10.1016/j.jssc.2004.09.036
