Formation and Characterization of TiO2 Scattering Layer Deposited by Spray Pyrolysis for DSSC

Khatijah Aisha Yaacob; Mohamad Syahir Borhanuddin

doi:10.4028/www.scientific.net/AMR.1024.95

Paper Titles

Fabrication of Gold Nanoparticles on Multiwalled Carbon Nanotubes Nanohybrids
p.79

Microwave Synthesis of ZnO Nanoparticles for Enhanced Oil Recovery
p.83

Synthesizing Vertically Aligned Zinc Oxide Nanowires on Borosilicate Glass Using Vapor Trapping Approach
p.87

Preparation of WO₃ Nanorods by Seeded Growth Hydrothermal Reaction
p.91

Formation and Characterization of TiO₂ Scattering Layer Deposited by Spray Pyrolysis for DSSC
p.95

Effect of Applied Voltage on the Formation of Self-Organized Iron Oxide Nanoporous Film in Organic Electrolyte via Anodic Oxidation Process and their Photocurrent Performance
p.99

Electrolyte Influence on the Morphologies of Anodic ZrO₂ Nanotube Arrays Formed by Anodization
p.104

Synthesis of Titanium Dioxide Nanoparticles in Natural Rubber Latex Medium
p.108

Morphology Controlled Ionothermal Synthesis and Characterization of Ceria Nanomaterials
p.112

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1024Formation and Characterization of TiO2 Scattering...

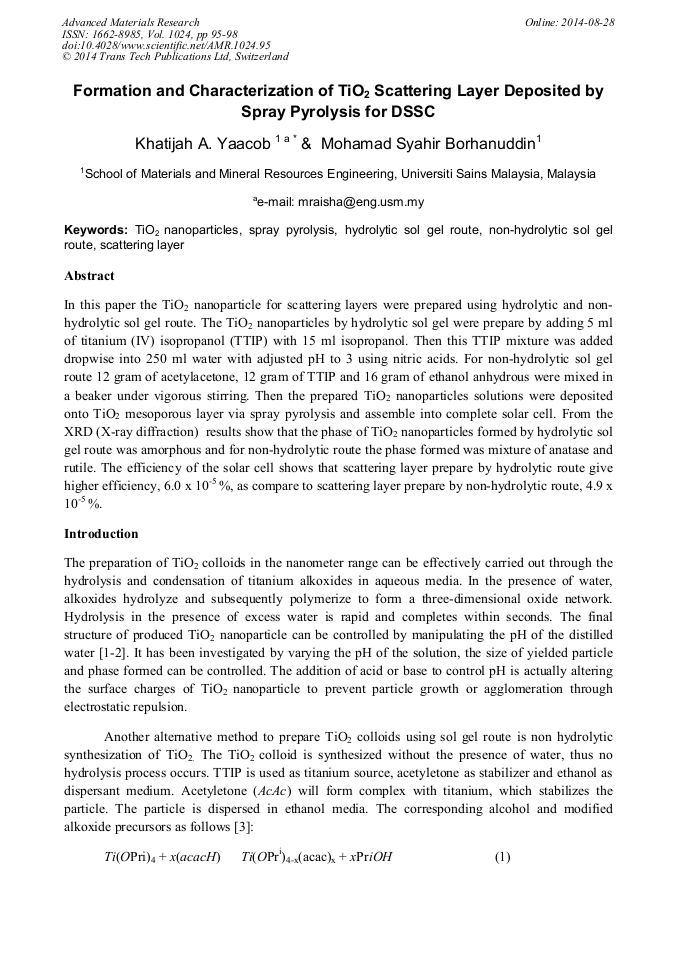

Formation and Characterization of TiO₂ Scattering Layer Deposited by Spray Pyrolysis for DSSC

Abstract:

In this paper the TiO₂ nanoparticle for scattering layers were prepared using hydrolytic and non-hydrolytic sol gel route. The TiO₂ nanoparticles by hydrolytic sol gel were prepare by adding 5 ml of titanium (IV) isopropanol (TTIP) with 15 ml isopropanol. Then this TTIP mixture was added dropwise into 250 ml water with adjusted pH to 3 using nitric acids. For non-hydrolytic sol gel route 12 gram of acetylacetone, 12 gram of TTIP and 16 gram of ethanol anhydrous were mixed in a beaker under vigorous stirring. Then the prepared TiO₂ nanoparticles solutions were deposited onto TiO₂ mesoporous layer via spray pyrolysis and assemble into complete solar cell. From the XRD (X-ray diffraction) results show that the phase of TiO₂ nanoparticles formed by hydrolytic sol gel route was amorphous and for non-hydrolytic route the phase formed was mixture of anatase and rutile. The efficiency of the solar cell shows that scattering layer prepare by hydrolytic route give higher efficiency, 6.0 x 10^-5%, as compare to scattering layer prepare by non-hydrolytic route, 4.9 x 10^-5%.

You might also be interested in these eBooks

Advancement of Materials and Nanotechnology III

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1024)

Pages:

95-98

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1024.95

Citation:

Cite this paper

Online since:

August 2014

Authors:

Khatijah Aisha Yaacob*, Mohamad Syahir Borhanuddin

Keywords:

Hydrolytic Sol Gel Route, Non-Hydrolytic Sol Gel Route, Scattering Layer, Spray Pyrolysis, TiO₂Nanoparticles

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C. Dwivedi, V. Dutta, Anatase TiO2 Hollow Microspheres Fabricated by Continuous Spray Pyrolysis as a Scattering Layer in Dye-Sensitised Solar Cells. Energy Procedia, 33 (2013) 223–227.

DOI: 10.1016/j.egypro.2013.05.061

Google Scholar

[2] S. Marshid, M. Askari, M.S. Ghamsari, Synthesis of TiO2 nanoparticles by hydrolysis and peptization of titanium isopropoxide solution. J. Mater. Technol. 189 (2007) 296-300.

DOI: 10.1016/j.jmatprotec.2007.01.040

Google Scholar

[3] A.S. Attar, M.S. Ghamsari, F. Hajiesmaeilbaigi, S. Mirdamadi, Modifier ligands effects on the synthesized TiO2 Nanocrystals. J. Mater. Technol. 43 (2008) 1723-1729.

DOI: 10.1007/s10853-007-2244-z

Google Scholar
