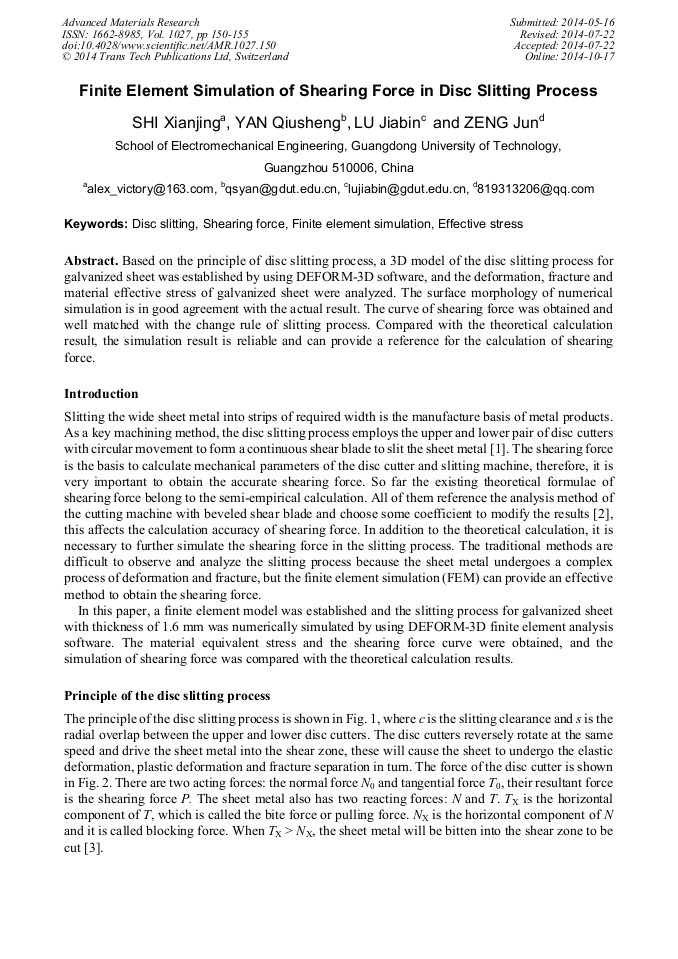

Finite Element Simulation of Shearing Force in Disc Slitting Process

Abstract:

Based on the principle of disc slitting process, a 3D model of the disc slitting process for galvanized sheet was established by using DEFORM-3D software, and the deformation, fracture and material effective stress of galvanized sheet were analyzed. The surface morphology of numerical simulation is in good agreement with the actual result. The curve of shearing force was obtained and well matched with the change rule of slitting process. Compared with the theoretical calculation result, the simulation result is reliable and can provide a reference for the calculation of shearing force.

You might also be interested in these eBooks

Ultra-Precision Machining Process and Surface Finishing Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1027)

Pages:

150-155

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1027.150

Citation:

Cite this paper

Online since:

October 2014

Authors:

Xian Jing Shi, Qiu Sheng Yan*, Jia Bin Lu, Jun Zeng

Keywords:

Disc Slitting, Effective Stress, Finite Element Simulation, Shearing Force
