An Experimental Investigation of Temperatures in Grinding of Ceramics with a Brazed Diamond Tool

Abstract:

An investigation is reported of the relationships of the temperatures and grinding parameter for grinding of ceramics with a brazed diamond grinding tool. During the experiments, the temperature distributions along the workpiece surface were measured using a foil thermocouples and the energy partition to the workpiece estimated using a temperature matching method. The results show that the grinding temperature increased with the increasing of worktable feed rate or tool velocity and depth of grinding. The measured temperature responses were found to be in good relation with the analytical results of a moving heat source with a rectangular distribution at the grinding zone.The energy partition ε is about 23%.

You might also be interested in these eBooks

Ultra-Precision Machining Process and Surface Finishing Technology

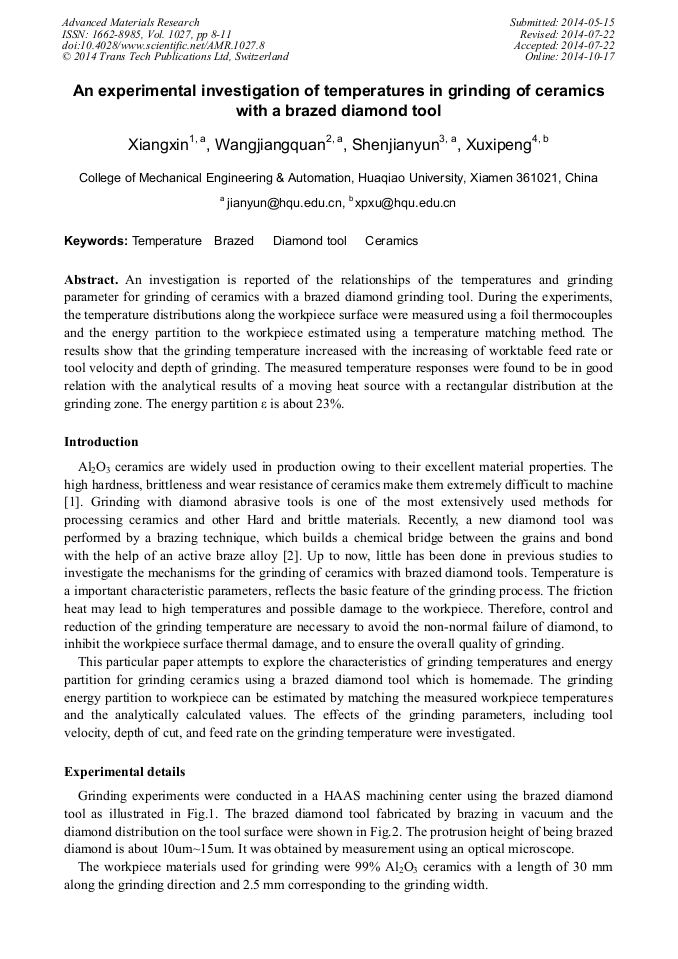

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1027)

Pages:

8-11

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1027.8

Citation:

Cite this paper

Online since:

October 2014

Authors:

Xin Xiang*, Jiang Quan Wang, Jian Yun Shen, Xi Peng Xu

Keywords:

Brazed, Ceramic, Diamond Tool, Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Mariayyah, Ravishankar, John Patten, Relationship between machining forces and diamond tool wear during ductile regime machining of silicon nitride，Machining Science and Technology. 2012, 16(1): 53-70.

DOI: 10.1080/10910344.2012.648556

Google Scholar

[2] James C，Sung, Michael Sung，The brazing of diamond，Int. Journal of Refractory Metals & Hard Materials 27 (2009) 382–393.

DOI: 10.1016/j.ijrmhm.2008.11.011

Google Scholar

[3] J.C. Jaeger, Moving sources of heat and the temperature at sliding contacts, Royal Society of New South Wales—Journal and Proceedings 76 (3) (1942) 202–224.

Google Scholar

[4] Xie GZ, Huang H (2008) An experimental investigation of temperature in high speed deep grinding of partially stabilized zirconia. Int J Mach Tools Manuf 48: 1562–1568.

DOI: 10.1016/j.ijmachtools.2008.06.002

Google Scholar
