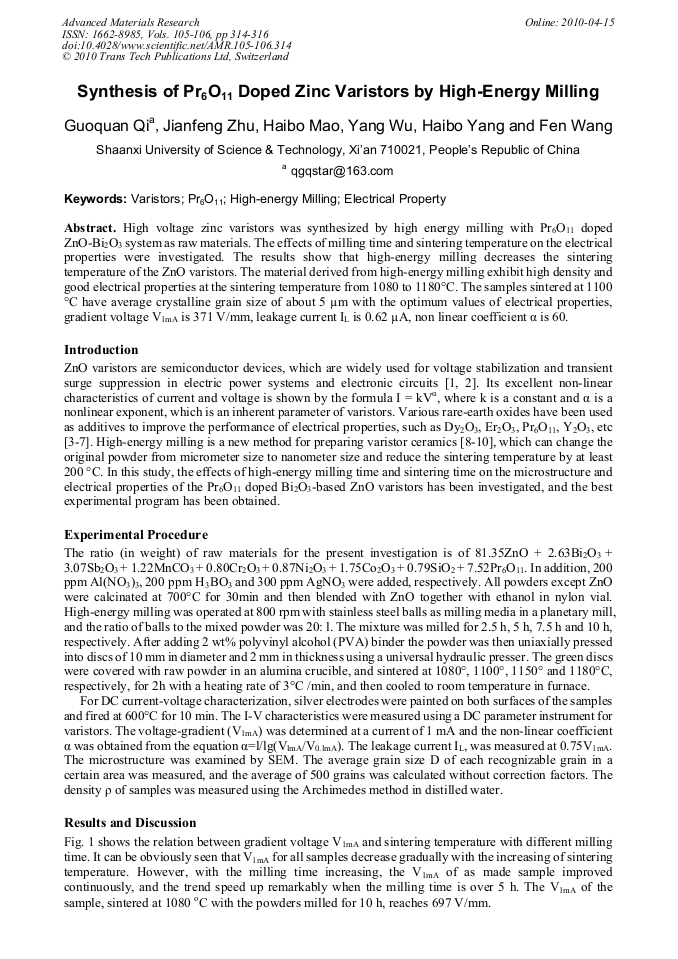

Synthesis of Pr₆O₁₁ Doped Zinc Varistors by High-Energy Milling

Abstract:

High voltage zinc varistors was synthesized by high energy milling with Pr6O11 doped ZnO-Bi2O3 system as raw materials. The effects of milling time and sintering temperature on the electrical properties were investigated. The results show that high-energy milling decreases the sintering temperature of the ZnO varistors. The material derived from high-energy milling exhibit high density and good electrical properties at the sintering temperature from 1080 to 1180°C. The samples sintered at 1100 °C have average crystalline grain size of about 5 µm with the optimum values of electrical properties, gradient voltage V1mA is 371 V/mm, leakage current IL is 0.62 µA, non linear coefficient α is 60.

• Periodical: Advanced Materials Research (Volumes 105-106)
• Pages: 314-316
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.105-106.314
• Online since: April 2010
• Authors: Guo Quan Qi, Jian Feng Zhu, Hai Bo Mao, Yang Wu, Hai Bo Yang, Fen Wang
• Keywords: Electrical Properties, High Energy Milling (HEM), Pr₆O₁₁, Varistor

References

[1] L. M. Levinson and H. R. Pilipp: Bull. Am. Ceram. Soc. Vol. 65 (1986), p.639.

[2] T. K. Gupta: J. Am. Ceram. Soc. Vol. 73 (1990), p.1817.

[3] Y. S. Lee and T.Y. Tseng: J. Am. Ceram. Soc. Vol. 75 (1992), p.1636.

[4] C. W. Nahm: Mater. Lett. Vol. 59 (2004), p. (2097).

[5] C. W. Nahm and J. S. Ryu: Mater. Lett. Vol. 53 (2002), p.110.

[6] C. W. Nahm: Mater. Lett. Vol. 57 (2003), p.1317.

[7] C. W. Nahm: Mater. Lett. Vol. 58 (2004), p.2252.

[8] H. D. Alamdari, S. Boily, M. Blouin, et al: Mater. Sci. Forum Vol. 343(2000), p.909.

[9] C. P. Fah and J. Wang: Solid State Ionics Vol. 132(2000), p.107.

[10] H.Y. Liu and X.M. Ma: J. Univ. Sci. Technol. Beijing Vol. 14(2007), p.266.

[11] C. W. Nahm: Mater. Lett. Vol. 58(2004), p.110.

[12] M. Peiteado: J. Eur. Ceram. Soc. Vol. 27 (2007), p.3867.

[13] C. W. Nahm: Mater. Sci. Eng. B Vol. 136 (2007), p.134.

[14] S.Y. Chun and N. Mizutani: Mater. Sci. Eng. B Vol. 79(2001), p.1.

[15] A. Recnik, N. Daneu, T. Walther, et al: J. Am. Ceram. Soc. Vol. 84.

[11] (2001), p.2657.

[16] C. W. Nahm: J Mater Sci: Mater Electron Vol. 16.

[9] (2005), p.345.

[17] J. F. Zhu, J. Q. Gao, et al: J. Rare Earth Vol. 24.

[5] (2006), p.567.

[18] C.W. Nahm: Mater. Lett. Vol. 60 (2006), p.3311. Fig. 4 SEM micrographs of varistor ceramics with different sintering temperatures and milling time: (a) 1100°C, 1 h; (b) 1100°C, 5 h; (c) 1080°C, 5 h.
